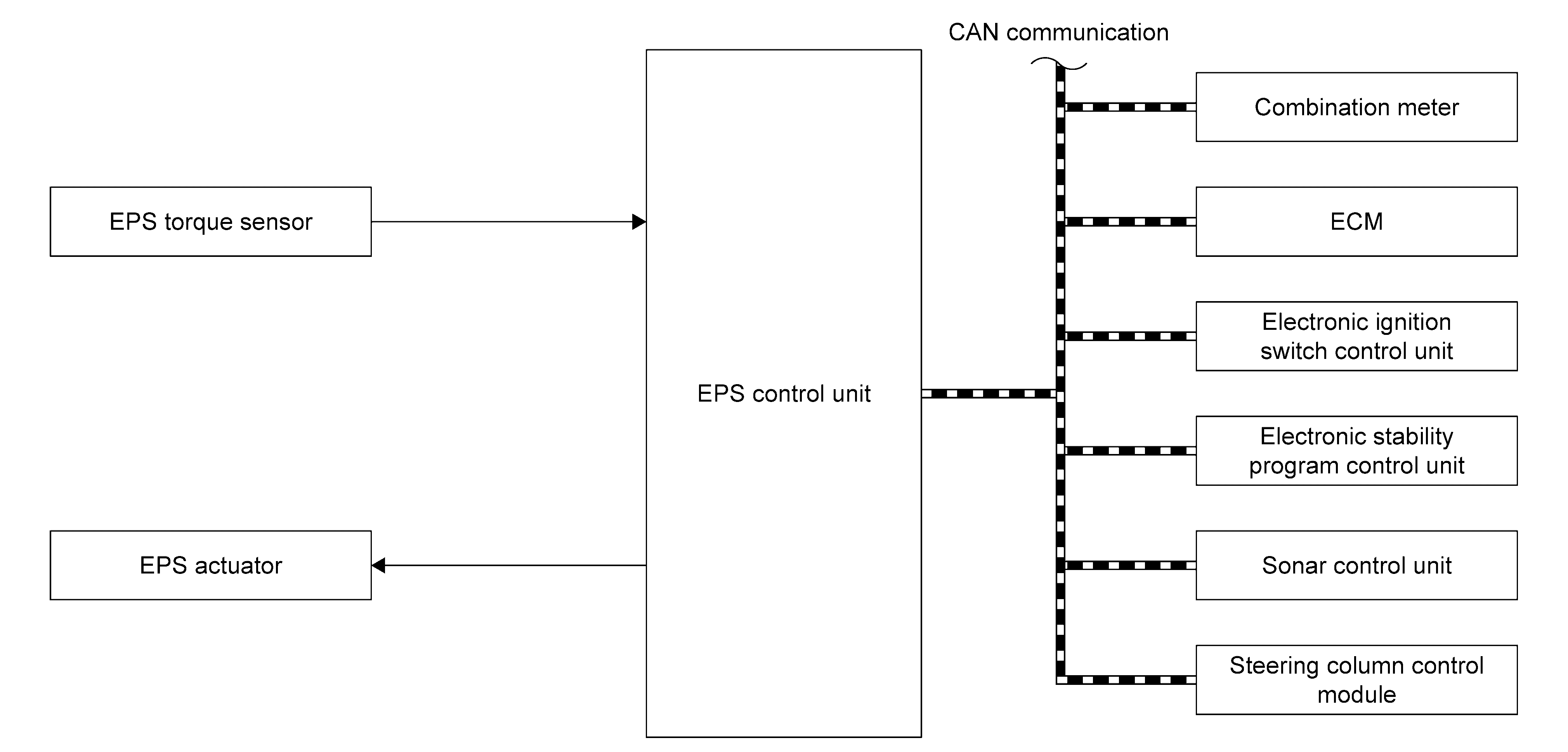

System Diagram
 Courtesy of NISSAN NORTH AMERICA, INC.
|
INPUT/OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table.
|
Component
|
Signal description
|
|
Electronic stability program control unit
|
- Transmits mainly the following signals to EPS control unit via CAN communication.
- Front LH wheel speed signal
- Front RH wheel speed signal
- Rear LH wheel speed signal
- Rear RH wheel speed signal
- Steering assistance torque request signal
- Yaw rate signal
- Side G signal
|
|
ECM
|
- Transmits mainly the following signal to EPS control unit via CAN communication.
|
|
Combination meter
|
- Receives mainly the following signals from EPS control unit via CAN communication.
- EPS warning message signal
|
|
Steering column control module
|
- Transmits mainly the following signals to EPS control unit via CAN communication.
- Steering angle sensor signal
|
|
Electronic ignition switch control unit
|
- Transmits mainly the following signal to EPS control unit via CAN communication.
- Ignition switch ON signal
- Battery voltage signal
|
|
Sonar control unit
|
- Transmits mainly the following signals to EPS control unit via CAN communication.
- Park assist status signal
- Steering angle command signal
- Receives mainly the following signals from EPS control unit via CAN communication.
- EPS control unit status signal
|
