Physical Values
- Specification data are reference values and are measured between each terminal and ground.
- Pulse signal is measured by CONSULT.
|
Terminal No. |
Description |
Condition |
Value (Approx.) |
||
|
+ |
- |
Signal name |
Input/Output |
||
|
1 (R) |
3 (B) |
Power supply |
-- |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
|
2 (P) |
3 (B) |
Power supply |
-- |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
|
3 (B) |
-- |
Ground |
-- |
-- |
-- |
|
5 (Y) |
3 (B) |
Sensor power supply |
-- |
[Ignition switch: ON] |
5 V |
|
6 (L) |
-- |
Electric intake valve timing control motor 2 hall Sensor 1 |
Input |
[Engine is running]
|
5 V |
|
7 (L) |
-- |
Electric intake valve timing control motor 2 temperature Sensor |
Input |
[Engine is running]
|
1.0 - 2.0 V |
|
13 (R) |
3 (B) |
Electric intake valve timing control motor 2 hall Sensor 3 |
Input |
[Engine is running]
|
5 V |
|
14 (G) |
3 (B) |
Electric intake valve timing control motor 2 hall Sensor 2 |
Input |
[Engine is running]
|
5 V |
|
15 (W) |
-- |
Sensor ground |
-- |
-- |
-- |
|
18 (G) |
3 (B) |
Ignition switch |
-- |
-- |
-- |
|
20 (B) |
3 (B) |
Crankshaft position Sensor (electric intake valve timing control signal) |
Input |
[Engine is running]
|
3.1 V |
|
[Engine is running]
|
3.1 V |
||||
|
21 (R) |
3 (B) |
Electric intake valve timing control motor 1 hall Sensor 3 |
Input |
[Engine is running]
|
5 V |
|
22 (G) |
3 (B) |
Electric intake valve timing control motor 1 hall Sensor 2 |
Input |
[Engine is running]
|
5 V |
|
23 (W) |
-- |
Sensor ground |
-- |
-- |
-- |
|
25 (L) |
-- |
ENGINE communication line-L |
Input/Output |
-- |
-- |
|
27 (W) |
3 (B) |
Intake camshaft position Sensor (bank 2) (electric intake valve timing control signal) |
Input |
[Engine is running]
|
4.1 V |
|
[Engine is running]
|
4.1 V |
||||
|
29 (Y) |
3 (B) |
Sensor power supply |
-- |
[Ignition switch: ON] |
5 V |
|
30 (L) |
3 (B) |
Electric intake valve timing control motor 1 hall Sensor 1 |
Input |
[Engine is running]
|
5 V |
|
31 (L) |
3 (B) |
Electric intake valve timing control motor 1 temperature Sensor |
Input |
[Engine is running]
|
1.0 - 2.0 V |
|
33 (GR) |
-- |
Shield |
-- |
-- |
-- |
|
34 (LG) |
3 (B) |
ENGINE communication line-H |
Input/Output |
-- |
-- |
|
36 (R) |
3 (B) |
Intake camshaft position Sensor (bank 1) (electric intake valve timing control signal) |
Input |
[Engine is running]
|
3.8 V |
|
[Engine is running]
|
3.8 V |
||||
|
37 (W/R) |
3 (B) |
Electric intake valve timing control motor 1 phase 3 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
39 (W/R) |
3 (B) |
Electric intake valve timing control motor 2 phase 3 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
40 (B) |
3 (B) |
Electric intake valve timing control motor 1 phase 2 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
41 (B) |
3 (B) |
Electric intake valve timing control motor 2 phase 2 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
42 (R) |
3 (B) |
Electric intake valve timing control motor 1 phase 1 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
44 (R) |
3 (B) |
Electric intake valve timing control motor 2 phase 1 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |

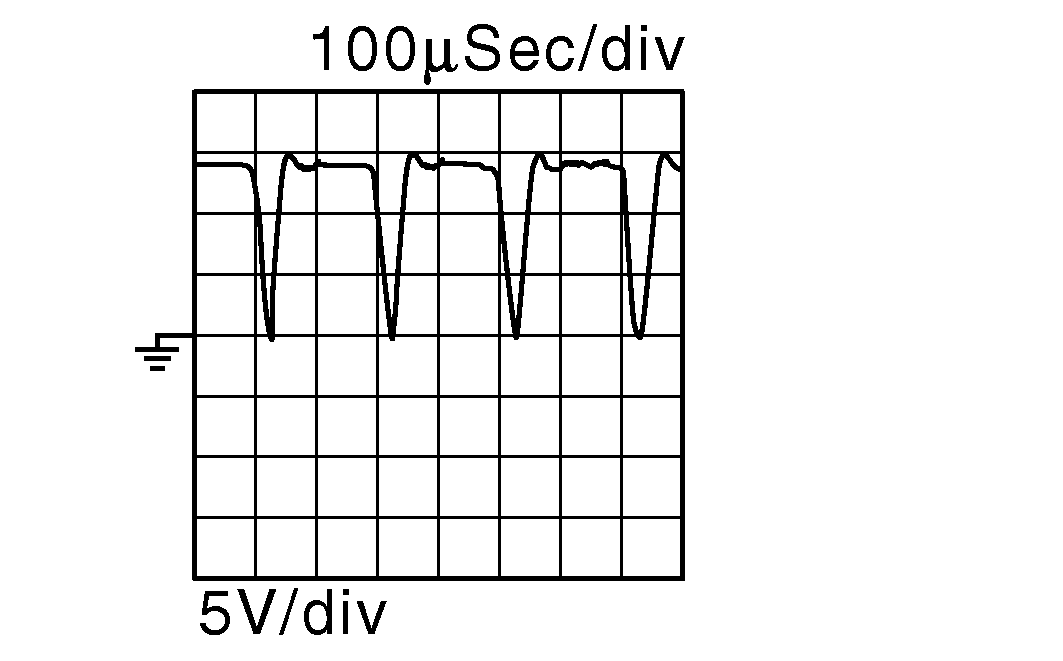

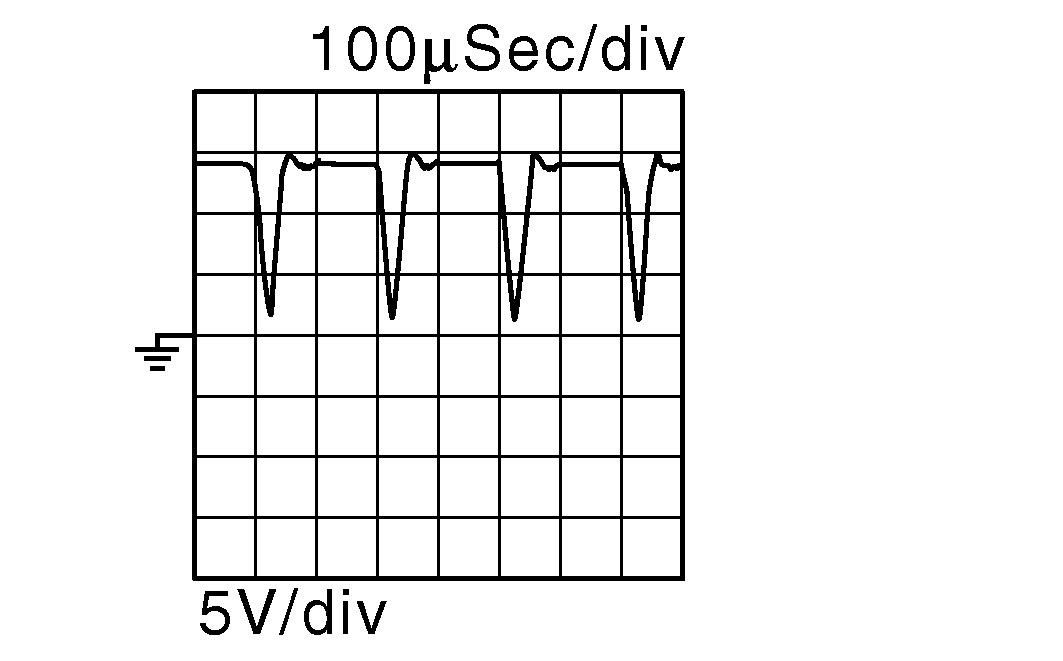

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
