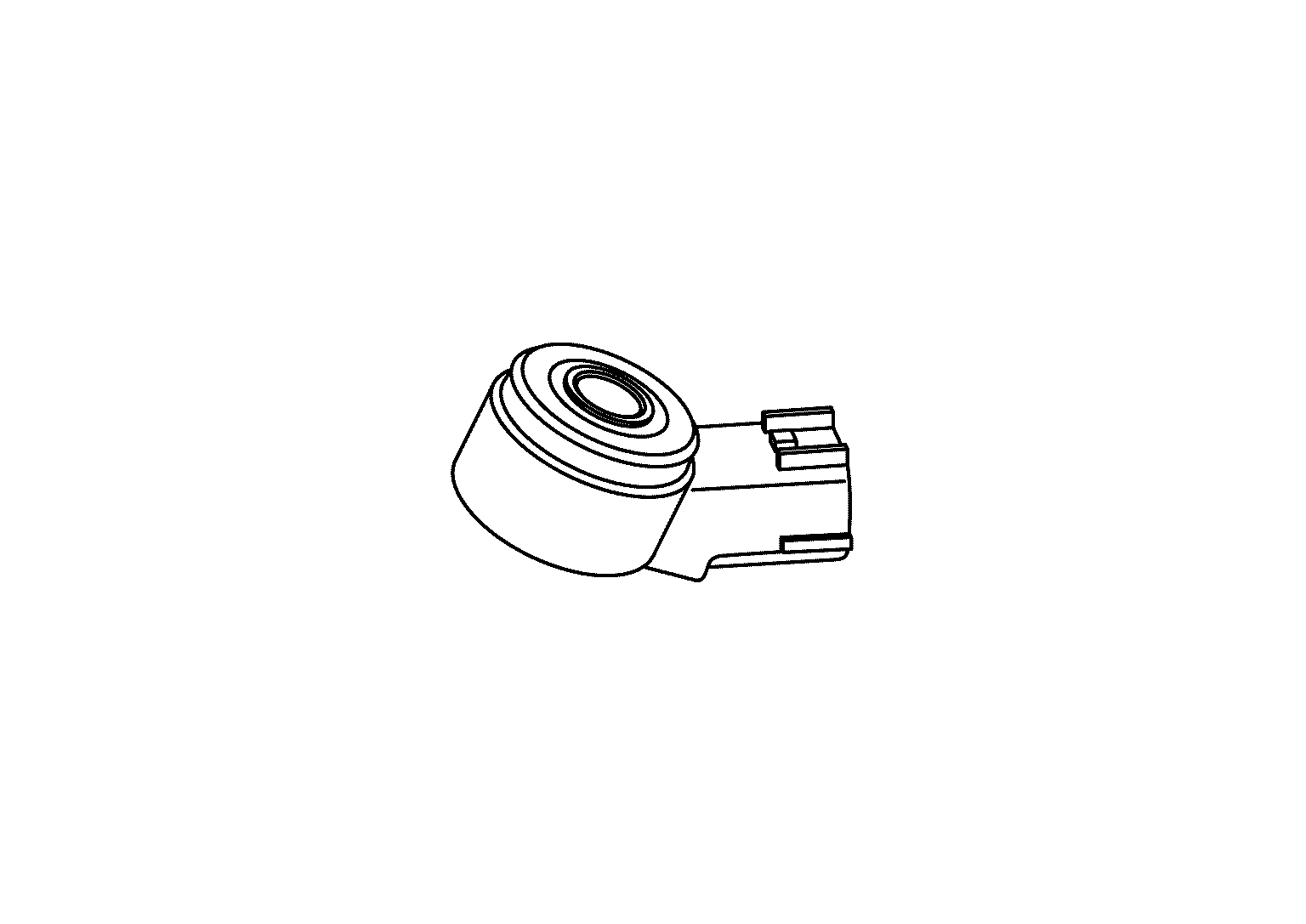

Knock Sensor

The knock Sensor is attached to the cylinder block. It senses engine knocking using a piezoelectric element. A knocking vibration from the cylinder block is sensed as vibrational pressure. This pressure is converted into a voltage signal and sent to the ECM.

Courtesy of NISSAN NORTH AMERICA, INC.
