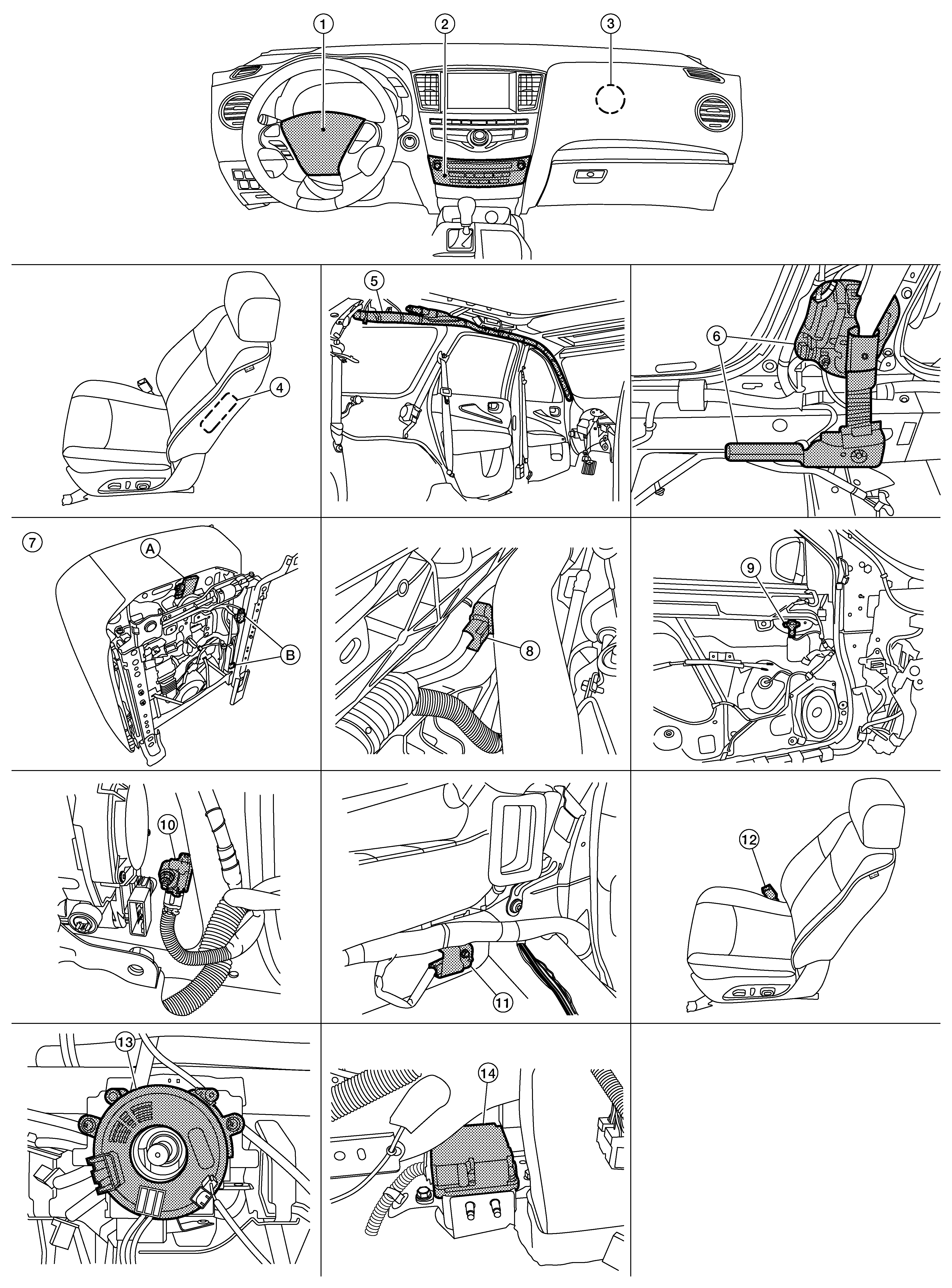

Component Location
|
1. |
Driver Air Bag Module |
2. |
Front Passenger Air Bag Off Indicator |
3. |
Front Passenger Air Bag Module |
|
4. |
Front LH Side Air Bag Module (RH similar) |
5. |
LH Side Curtain Air Bag Module (view with headliner removed) (RH similar) |
6. |
Front RH Seat Belt Pre-Tensioner (view with lower center pillar cover RH removed) (LH similar) |
|
7. |
Occupant Classification System Control Unit (A) Occupant Classification System Sensors (B) (view with front passenger seat removed) |
8. |
Crash Zone Sensor (view with air intake removed) |
9. |
Front Door Satellite Sensor LH (view with front door finisher LH removed) (RH similar) |
|
10. |
Front Side Air Bag Satellite Sensor LH (view with lower center pillar cover LH removed) (RH similar) |
11. |
Rear Side Air Bag Satellite Sensor LH (view with luggage side lower finisher LH removed) (RH similar) |
12. |
Seat Belt Buckle Switch LH (RH similar) |
|
13. |
Spiral Cable (view with steering wheel removed) |
14. |
Air Bag Diagnosis Sensor Unit (view with center console assembly removed) |
