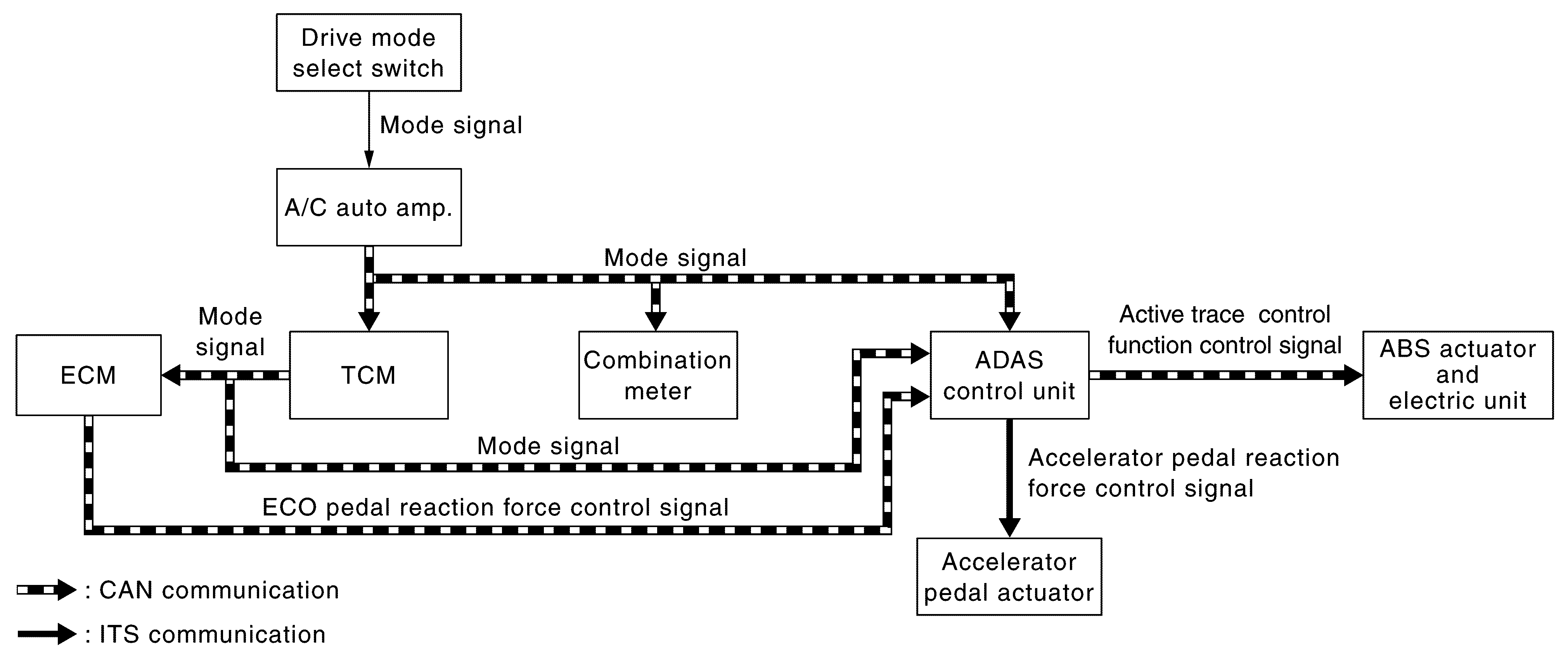

System Diagram
- The A/C Auto Amp. receives an operational state of the drive mode select switch and transmits a mode signal (See below.) to each unit via CAN communications.
- STANDARD: ON/OFF
- SPORT: ON/OFF
- ECO: ON/OFF
- SNOW: ON/OFF
- TCM transmits a mode state to ECM and ADAS Control Unit via CAN communications, based on a mode signal received from the A/C Auto Amp.
- ECM transmits an ECO pedal control signal to the ADAS Control Unit via CAN communications.
- The ADAS Control Unit controls pedal reaction force of the accelerator pedal actuator via ITS communications, based on an ECO pedal control signal received from ECM.
- The ADAS Control Unit receives a mode signal from the A/C Auto Amp. and changes the characteristics of the active trace control function via CAN communications with the ABS Actuator and Electric Unit.
