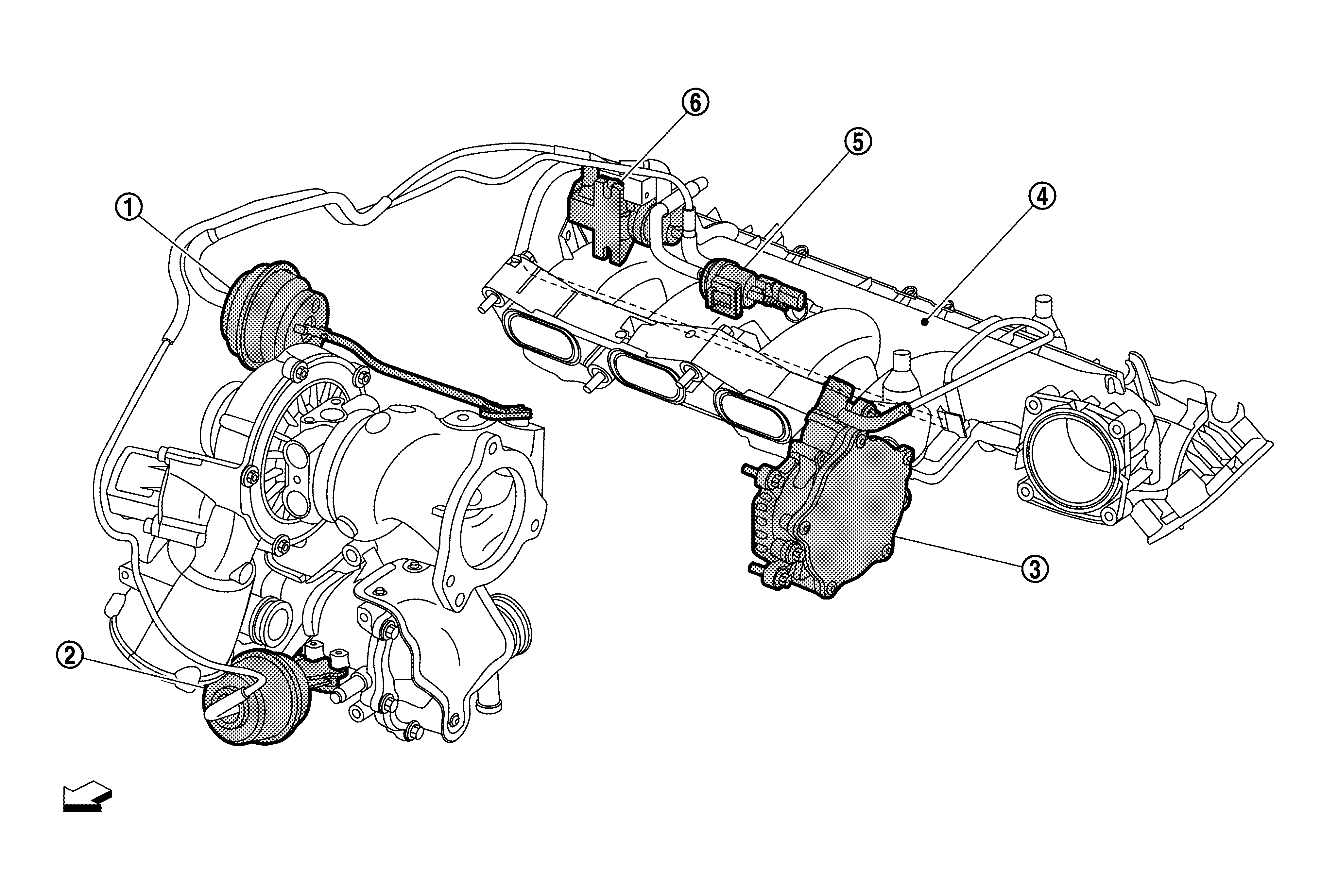

Vacuum Line Layout

GNSJSBIA9755GB-755Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Boost pressure control flap vacuum actuator

SYMBOL

Coolant pump vacuum actuator

SYMBOL

Vacuum pump

SYMBOL

Charge air manifold

SYMBOL

Coolant pump switchover valve

SYMBOL

Boost pressure control vacuum transducer

SYMBOL

: Vehicle front
