Except for Mexico

The adoption of log-in function allows stored user-to-user settings to be called up through the recognition of the last user by the Intelligent Key.
The log-in function identifies the driver through the use of the Intelligent Key and calls up driver-specific settings for items such as audio, navigation, seat position, and PERSONAL mode settings of the Infiniti Drive Mode Selector.
For details of PERSONAL mode settings, Refer to System Description .
BCM receives a key ID signal from the Intelligent Key and transmits the signal to chassis control module, AV control unit, combination meter, A/C auto amp, driver seat control unit, and ADAS control unit via CAN communication.
Chassis control module transmits a key link signal to each unit via CAN communication.
AV control unit transmits a user information signal to each unit via CAN communication and AV communication.
Each unit calls up user information according to signals from BCM, chassis control module, and AV control unit.
- BCM saves/reads set values of vehicle settings.
- Driver seat control unit saves/reads set values such of seat position and mirror position.
- A/C auto amp. saves/reads set values of temperature and DUAL settings.
- Combination meter saves/reads set values of illumination control and language settings.
- ADAS control unit saves/reads set values of warning sound and ON/OFF settings for each assist function.
- Chassis control unit saves/reads settings of PERSONAL MODE characteristics of the Infiniti Drive Mode Selector.
- Audio unit saves/reads set values of FM preset and balance.
The number of registerable Intelligent Keys interlocked with user settings is 4.
The driver's intelligent keys can be identified in the following order: Used for opening/closing by remote control -> located close to the driver's door -> identified at an engine start.

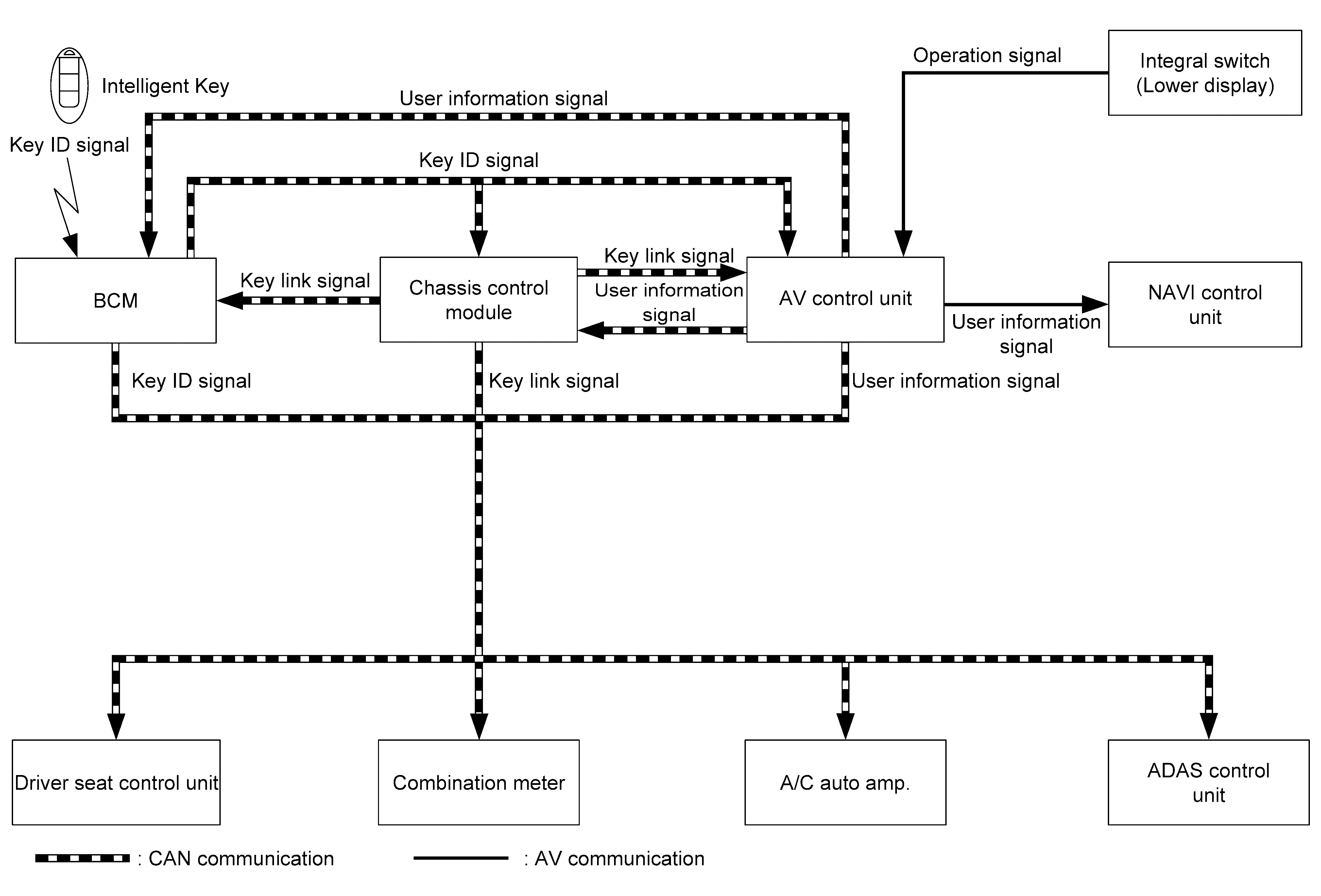

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

Component	Signal description
Chassis control module	The chassis control module transmits a key link signal and a log-in permit signal to the following units: Combination meter AV control unit A/C auto amp. Driver seat control unit ADAS control unit BCM The chassis control module receives a key ID signal from BCM. The chassis control module receives a user information signal from AV control unit.
BCM	The BCM transmits a key ID signal to the following units: Combination meter AV control unit A/C auto amp. Chassis control unit Driver seat control unit ADAS control unit The BCM receives a key link signal and a log-in permit signal from chassis control module. The BCM receives a user information signal from AV control unit.
AV control unit	The AV control unit transmits a user information signal to the following units: Combination meter A/C auto amp. Driver seat control unit ADAS control unit Chassis control unit BCM The AV control unit receives a key link signal and a log-in permit signal from chassis control module. The AV control unit receives a key ID signal from BCM.
Driver seat control unit	The driver seat control unit receives a key link signal and a log-in permit signal from chassis control module. The driver seat control unit receives a user information signal from AV control unit. The driver seat control unit receives a key ID signal from BCM.
Combination meter	The combination meter receives a key link signal and a log-in permit signal from chassis control module. The combination meter receives a key ID signal from BCM. The combination meter receives a user information signal from AV control unit.
A/C auto amp.	The A/C auto amp. receives a key link signal and a log-in permit signal from chassis control module. The A/C auto amp. receives a key ID signal from BCM. The A/C auto amp. receives a user information signal from AV control unit.
ADAS control unit	The ADAS control unit receives a user information signal from AV control unit. The ADAS control unit receives a key ID signal from BCM.

USER REGISTRATION/EDIT

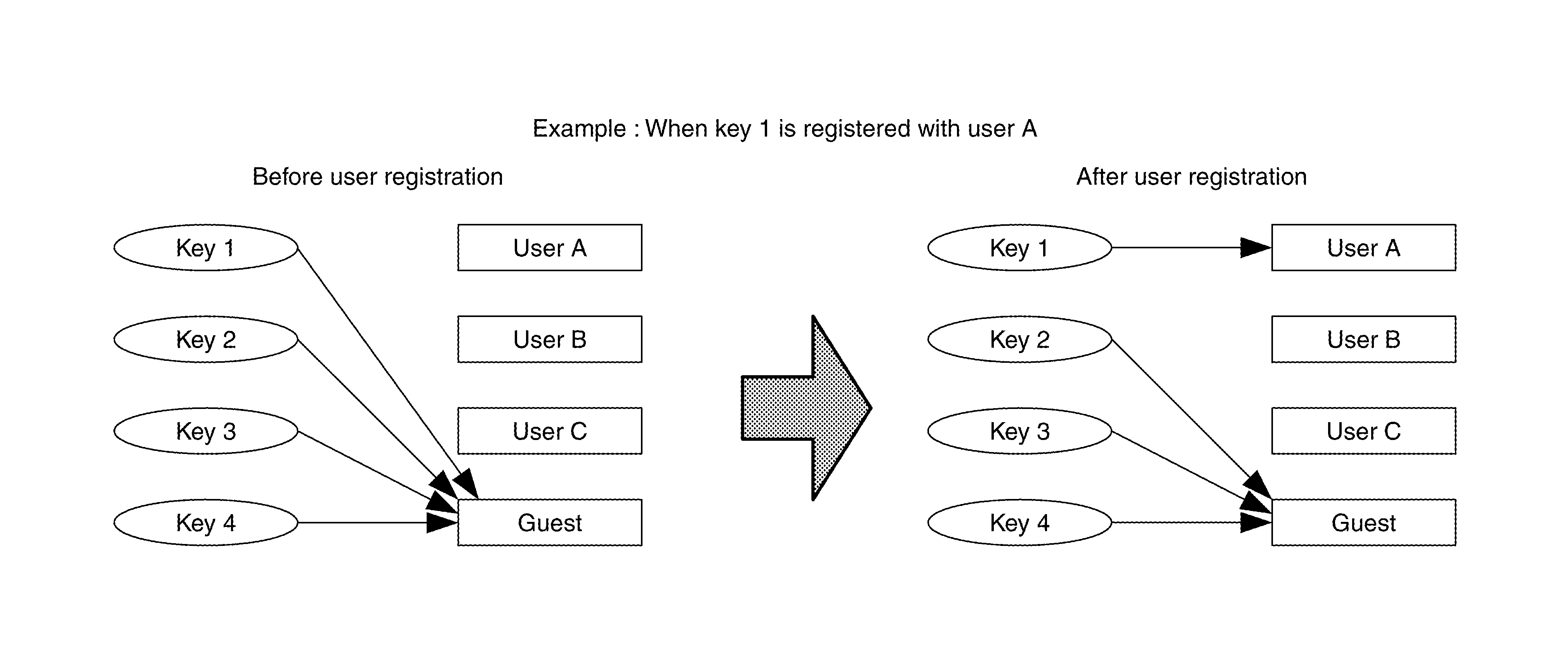

Registration

The Intelligent Key used for the first time calls up all the settings for Guest.
Once a driver performs user registration on the AV control unit screen, the settings at this point are saved as the registered user information and linked with the Intelligent Key currently in use.
If the Intelligent Key is used during the next drive, the registered user settings are applied.
If User A is registered while Key 1 is used, for example, the vehicle uses the settings of User A when entering the vehicle with Key 1 the next time.
For the user information, the setting status when the key switch is turned OFF is saved.

Courtesy of NISSAN NORTH AMERICA, INC.

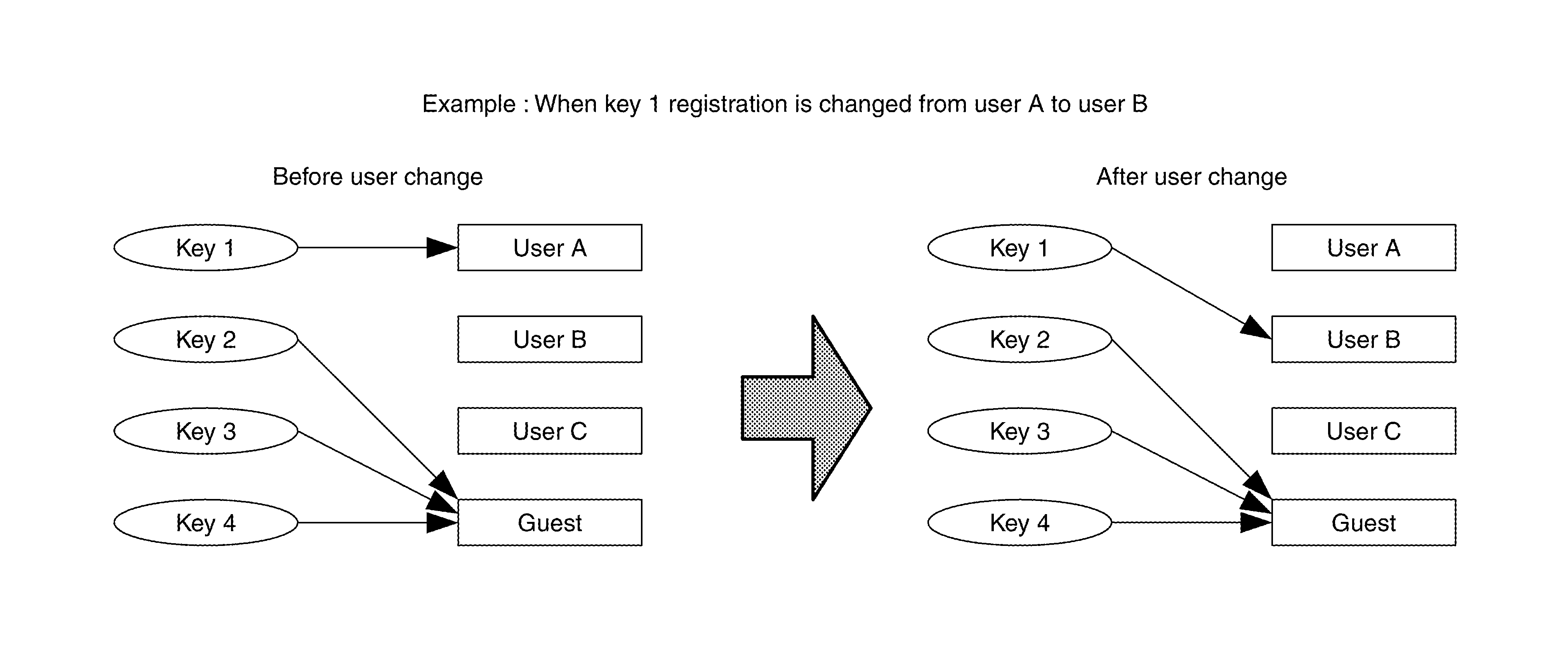

Change

To change the current user settings to new user settings, the user settings can be changed in the AV control unit.
Once a user change operation is performed, the new user and the currently used Intelligent Key are linked.

NOTE: When the user is changed, the AV control unit screen enters a hatching state and prohibits the operation for approximately 2 seconds to secure the necessary period of time to change the user in each unit.

Courtesy of NISSAN NORTH AMERICA, INC.

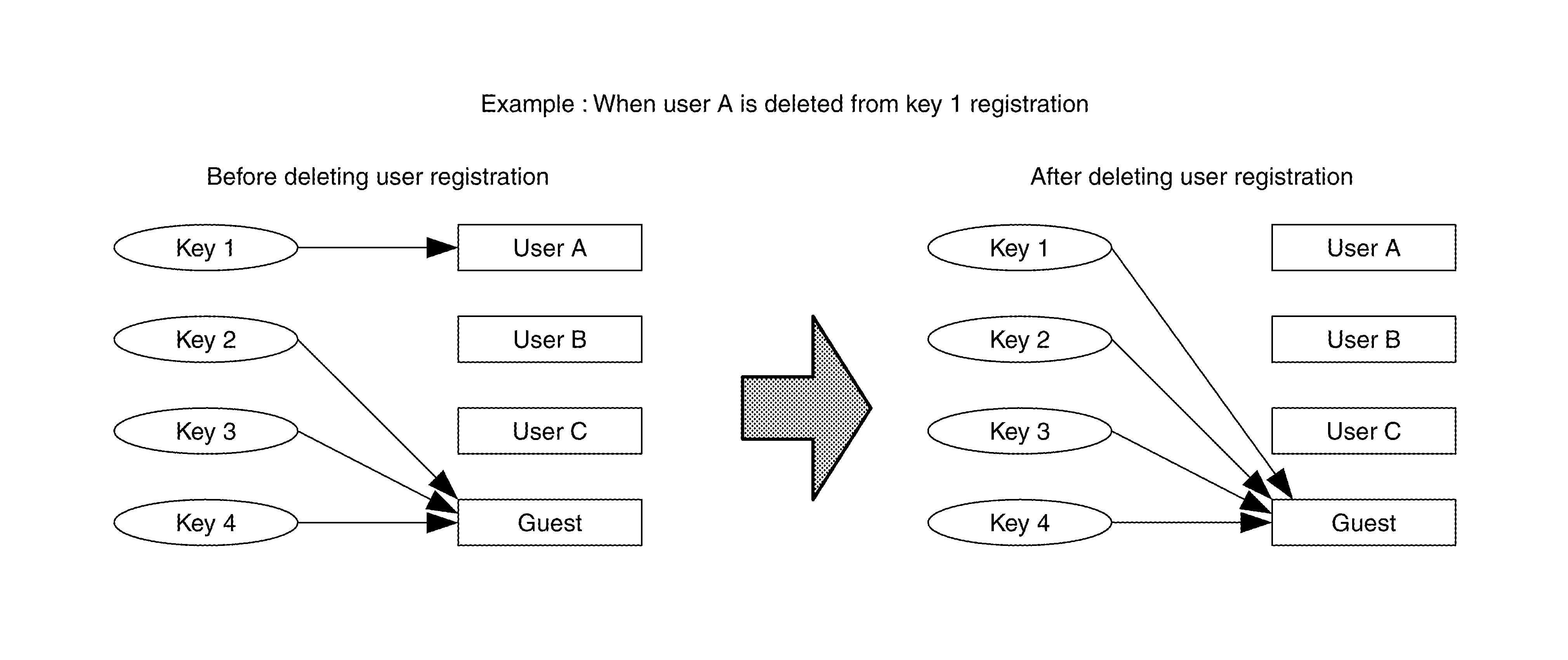

Delete

The registered user information can be deleted.
The Intelligent Key linked with the deleted user settings will call up the setting of Guest from the next time.
If the current user is deleted, the settings for Guest are called up.
The deleted user settings are changed ^* to the default settings.
*: Since no default settings are provided for seat positions, mirror positions, and A/C settings, the old settings remain unchanged instead of returning to the default settings.

Courtesy of NISSAN NORTH AMERICA, INC.

Copy

The previously registered user settings can be copied to the settings of another user.

KEY-LINKED ON/OFF FUNCTION

ON/OFF can be set for the function for interlocking with Intelligent Key.Selecting OFF leads to the settings for Guest regardless of Intelligent Key type.

LIST OF LOG-IN FUNCTION SETTING ITEMS

Systems interlocked with the log-in function are as follows:

Combination meter
Air conditioner
Automatic drive positioner
Audio
Display
Navigation system
Infiniti drive mode selector (PERSONAL mode)
Driver Assistance
BCM

Refer to the table for details of items available for log-in settings.

Combination Meter

NOTE: The following table includes inapplicable items depending on vehicle specifications. For applicable items, see the vehicle specifications.

Category	Item
Illumination and Contrast	Brightness Control
Meter Screen Setting	Temperature unit
	Main Menu Selection
	Eco Mode Settings
	Alarms
	Factory Reset
	Display Effect
	Language
	TPMS Unit
	Mileage Unit

Air Conditioner

NOTE: The following table includes inapplicable items depending on vehicle specifications. For applicable items, see the vehicle specifications.

Category	Item
Switch Setting	AUTO Switch
	Temperature Setting
	Fan Speed
	Blow Port
	Air Flow
	Forest
A/C menu	A/C
A/C menu	DUAL
Forest A/C Setting	Exhaust and Odors sensor Sensitivity

Automatic Drive Positioner

NOTE:

Seat position set with the seat memory switch does not interlock with Intelligent Key.
The following table includes inapplicable items depending on vehicle specifications. For applicable items, see the vehicle specifications.

Category	Item
Driver Sheet	Slide
	Reclining
	Front Seat Lifter
	Rear Seat Lifter
Steering	Tilt
Steering	Telescopic
Outside Mirrors	Left Outside Mirror
Outside Mirrors	Right Outside Mirror

Audio/navigation

NOTE: The following table includes inapplicable items depending on vehicle specifications. For applicable items, see the vehicle specifications.

Category	Item
Sound	Volume ^{*1, 2}
	Bass/treble
	Fader/balance
	Speed sensitive volume system
	BOSE Centerpoint ^*3
	BOSE AUDIOPILOT ^*3
	Rear Sound Mode ^*3
	Driver's Audio Stage ^*3
	Down Mix ^*3
Radio	The most recently received frequency
	Traffic information frequency
	Traffic information (RDS)
	Radio Preset Frequency
Music Box	Registered songs/song condition settings
Navigation	Route searching condition settings
System setting	Language setting
	Beep ON/OFF setting
	Guidance Voice ON/OFF setting
Voice recognition	Audio command learning result
Audio source bar	Audio source

*1: Without BOSE sound system

*2: Except for the volume other than that of audio (route guidance volume, telephone ring tone volume, etc.)

*3: With BOSE sound system

Infiniti Drive Mode Selector (PERSONAL Mode)

NOTE: Infiniti drive mode selector returns to STANDARD every time the key switch is turned OFF. To call up user information of PERSONAL mode, PERSONAL mode must be selected after key ON.

For details of setting items for Infiniti Drive Mode Selector, Refer to System Description .

Driver Assistance

NOTE: The following table includes inapplicable items depending on vehicle specifications. For applicable items, see the vehicle specifications.

Category	Item
Driver Assistance - Forward Assist -	Distance Control Assist
Driver Assistance - Lane Assist -	Lane Departure Prevention
Driver Assistance - Lane Assist -	Lane Departure Warning
Driver Assistance - Blind Spot Assist -	Blind Spot Intervention
	Blind Spot Warning
	Setting
Emergency Assist	Forward Emergency Braking

BCM

NOTE: The following table includes inapplicable items depending on vehicle specifications. For applicable items, see the vehicle specifications.

Category	Item
Vehicle Setting	Light Sensitivity
	Light of Delay
	Auto Lock
	Auto Unlock (I-key)
	Rain Sensor
	Speed sensing Wiper Interval
	Battery Saver Mode
	Wipe Drip
