Automatic Speed Control Device (ASCD): Operation

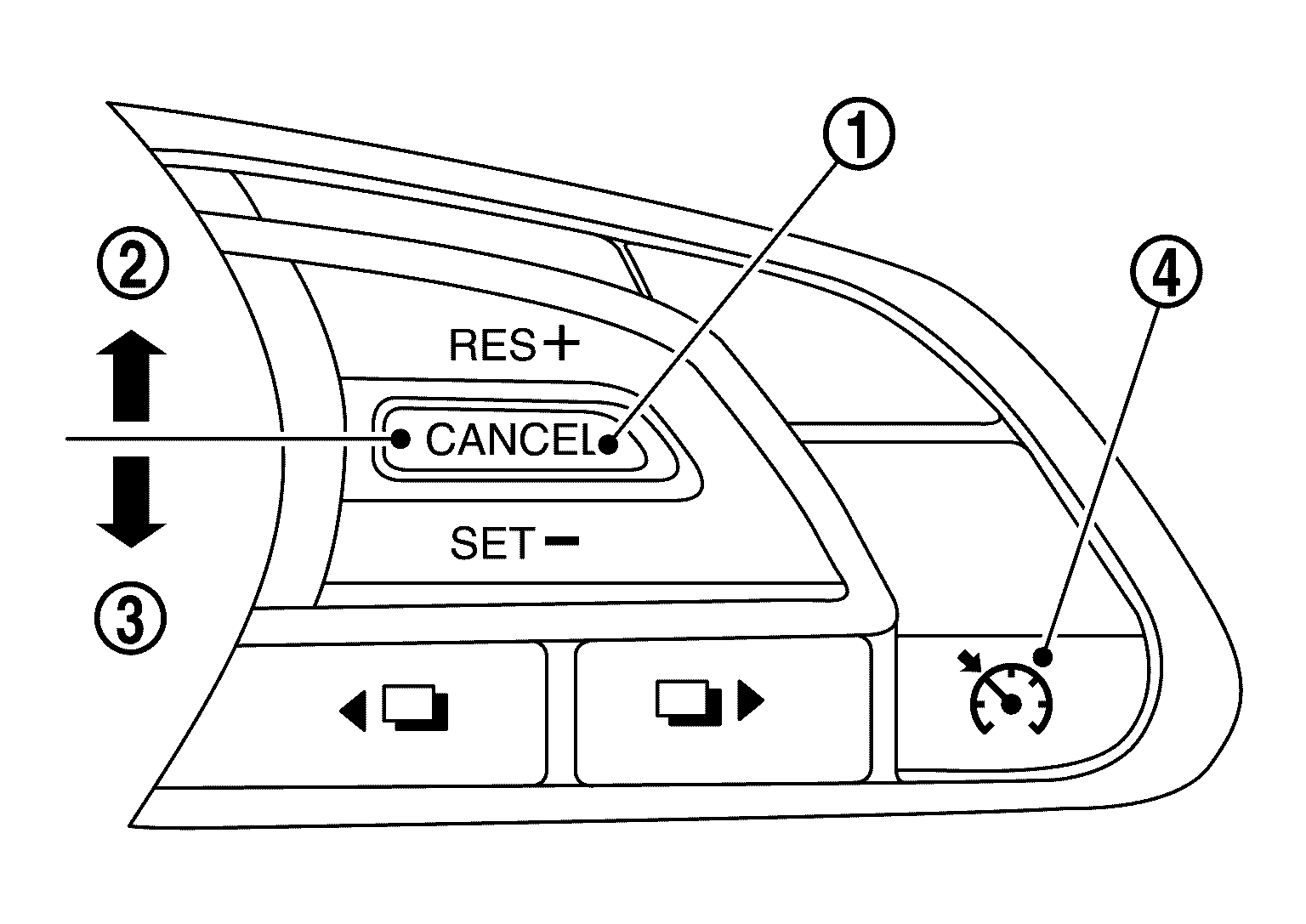

No.

Name

Function

CANCEL switch

When the switch is pressed, the ASCD control is cancelled.

RES+ switch

(RESUME/ACCELERATE)

• When the switch is pressed after the cruise control is cancelled in any method other than main switch operation, the vehicle speed is reset to the previous speed setting before the cancellation ^* .
• When the switch is pressed during cruise control, the setting speed is increased and the vehicle speed increases.

SET- switch

(SET/COAST)

• When the switch is pressed at the preferred vehicle speed, the cruise control starts to operate.
• When the switch is pressed during cruise control, the set speed is reduced and the vehicle speed reduces.

ASCD MAIN switch

Turns the ASCD ON/OFF.
