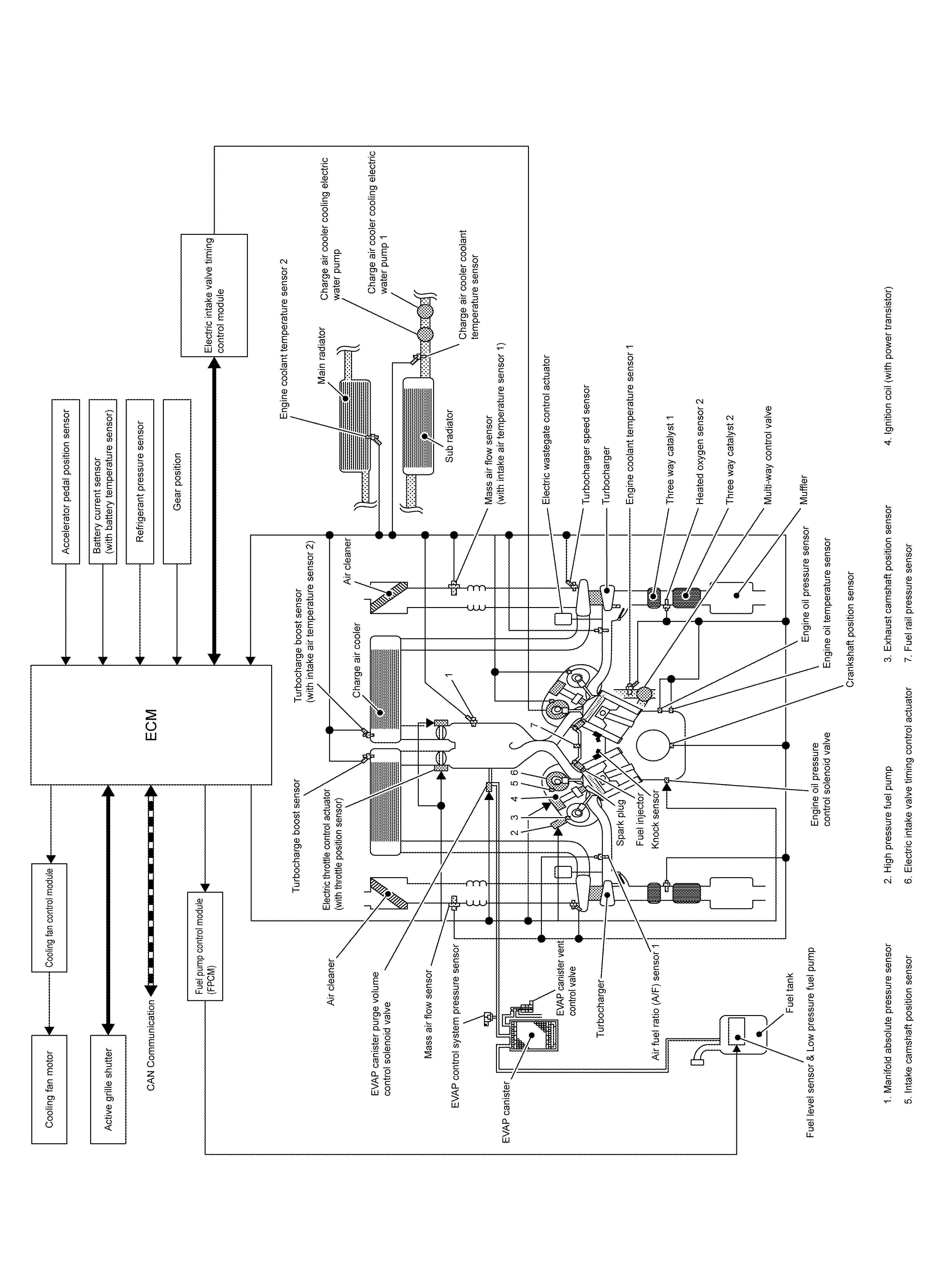

System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Below is not applicable for turbo low pressure model:
Charge air cooler cooling electric water pump 1
Charge air cooler cooling electric water pump 2
Turbocharger speed sensor
Courtesy of NISSAN NORTH AMERICA, INC.
