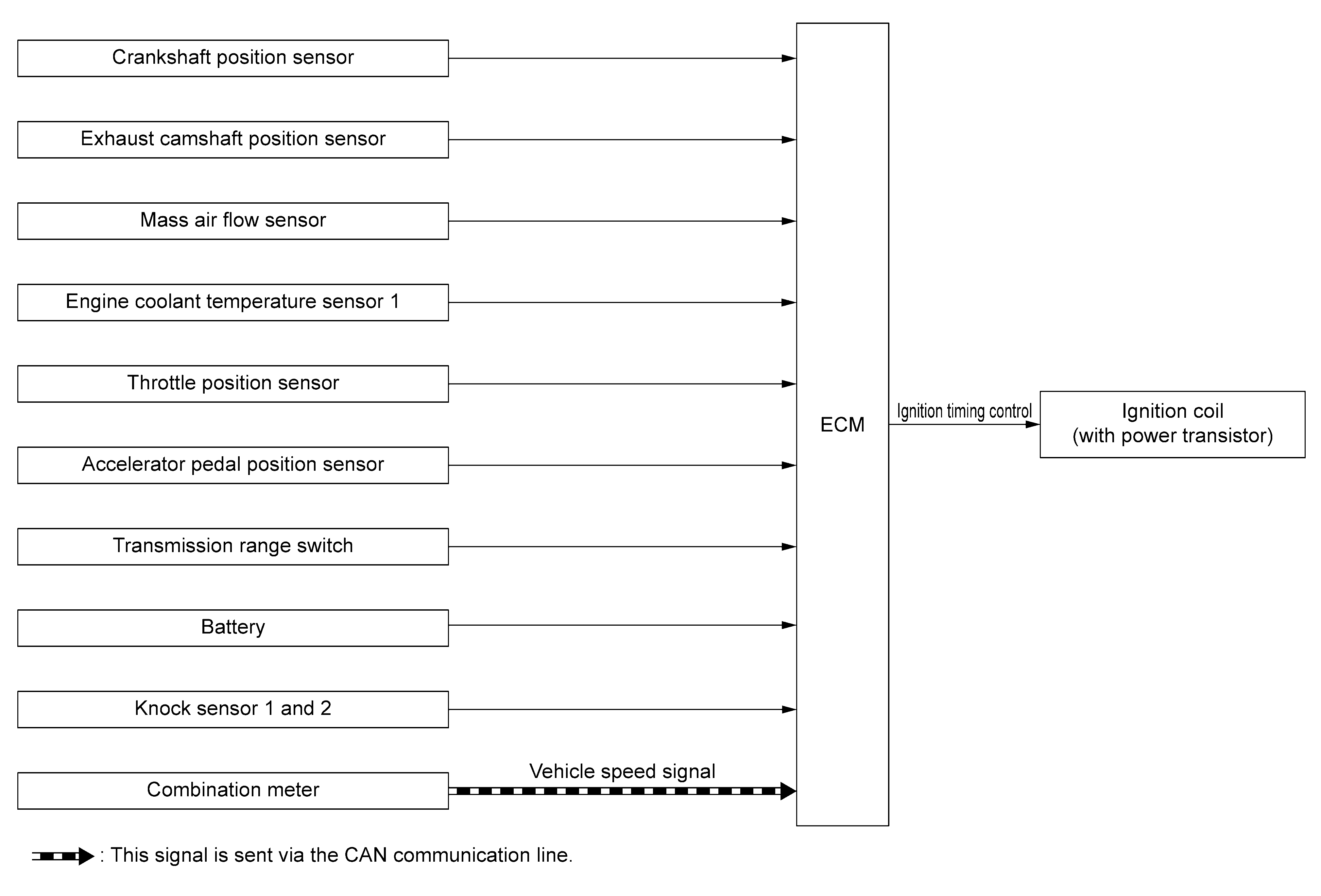

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor |
|
|
Exhaust camshaft position sensor |
|
|
Mass air flow sensor (With intake air temperature sensor) |
|
|
Engine coolant temperature sensor 1 |
|
|
Electric throttle control actuator |
|
|
Accelerator pedal position sensor |
|
|
Transmission range switch |
ECM receives the park/neutral position signal. |
|
Battery |
ECM receives the battery voltage signal. |
|
Knock sensor 1 and 2 |
|
|
Combination meter |
ECM receives the vehicle speed signal via CAN communication. |
|
ECM |
|
|
Ignition Coil With Power Transistor |
