Fuel Injection Timing

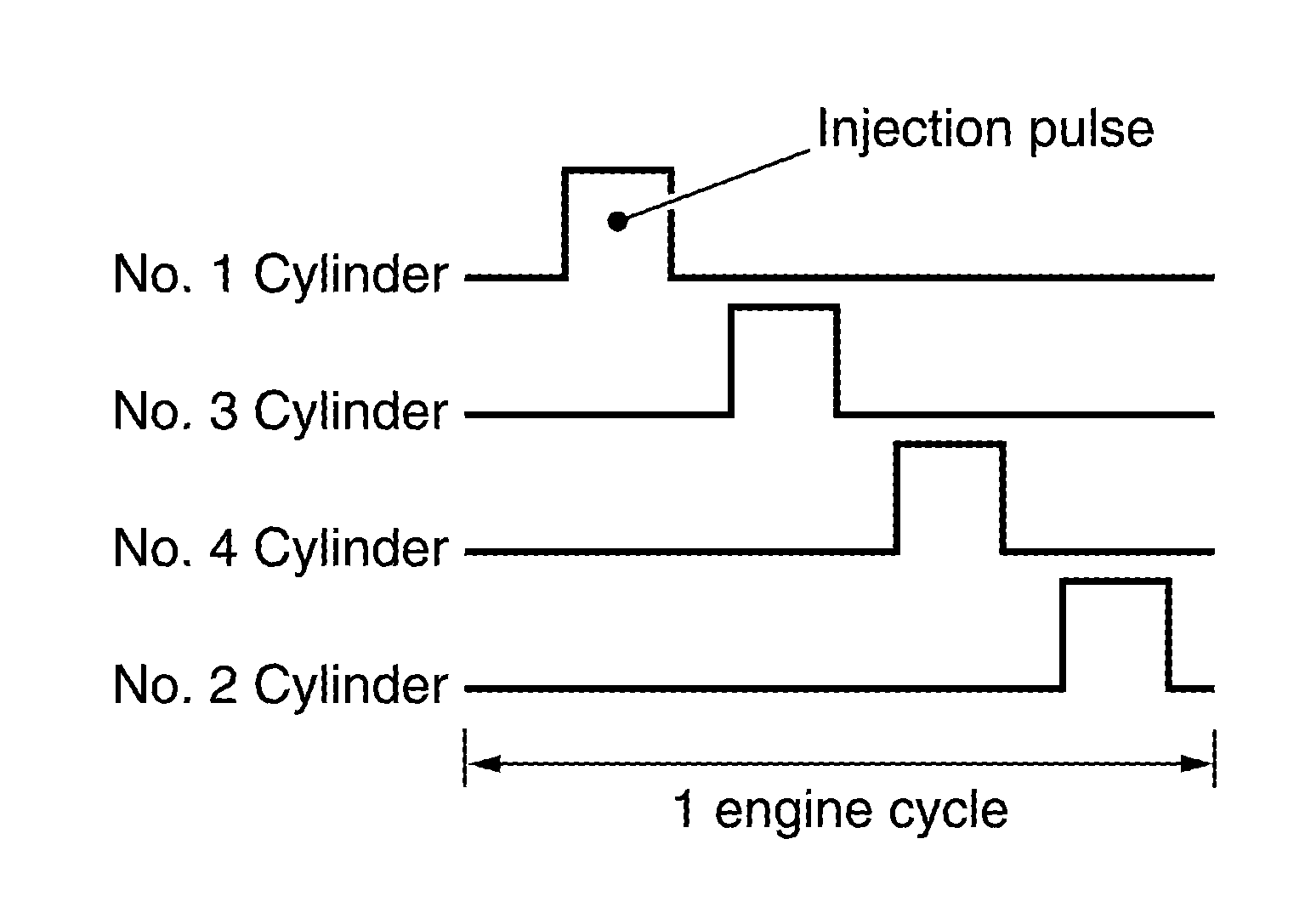

Fuel is injected into each cylinder during each engine cycle according to the ignition order.

G06932910Courtesy of NISSAN NORTH AMERICA, INC.
