Exploded View

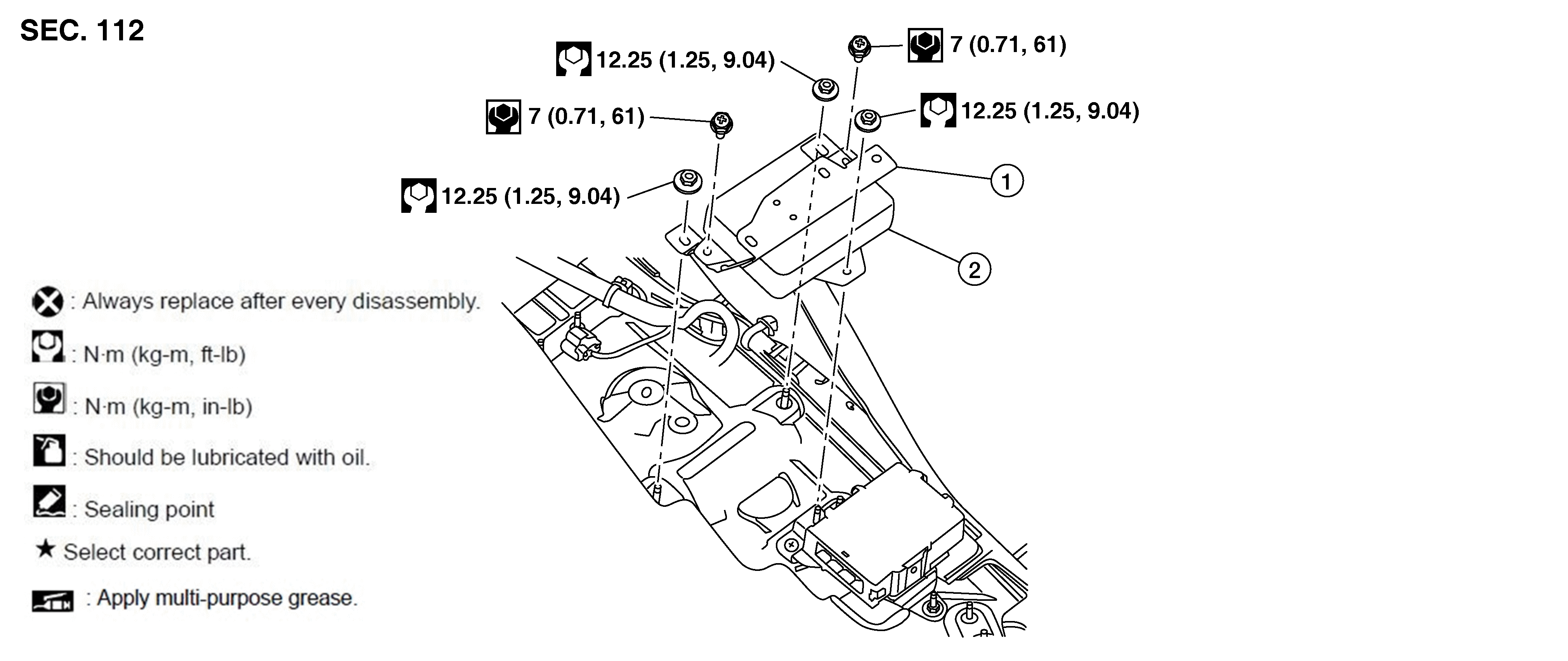

Fig 1: Active Torque Rod Control Module With Torque Specifications
GNSALBIA0212Z-212Courtesy of NISSAN NORTH AMERICA, INC.

1.

Bracket

2.

Active torque rod control module
