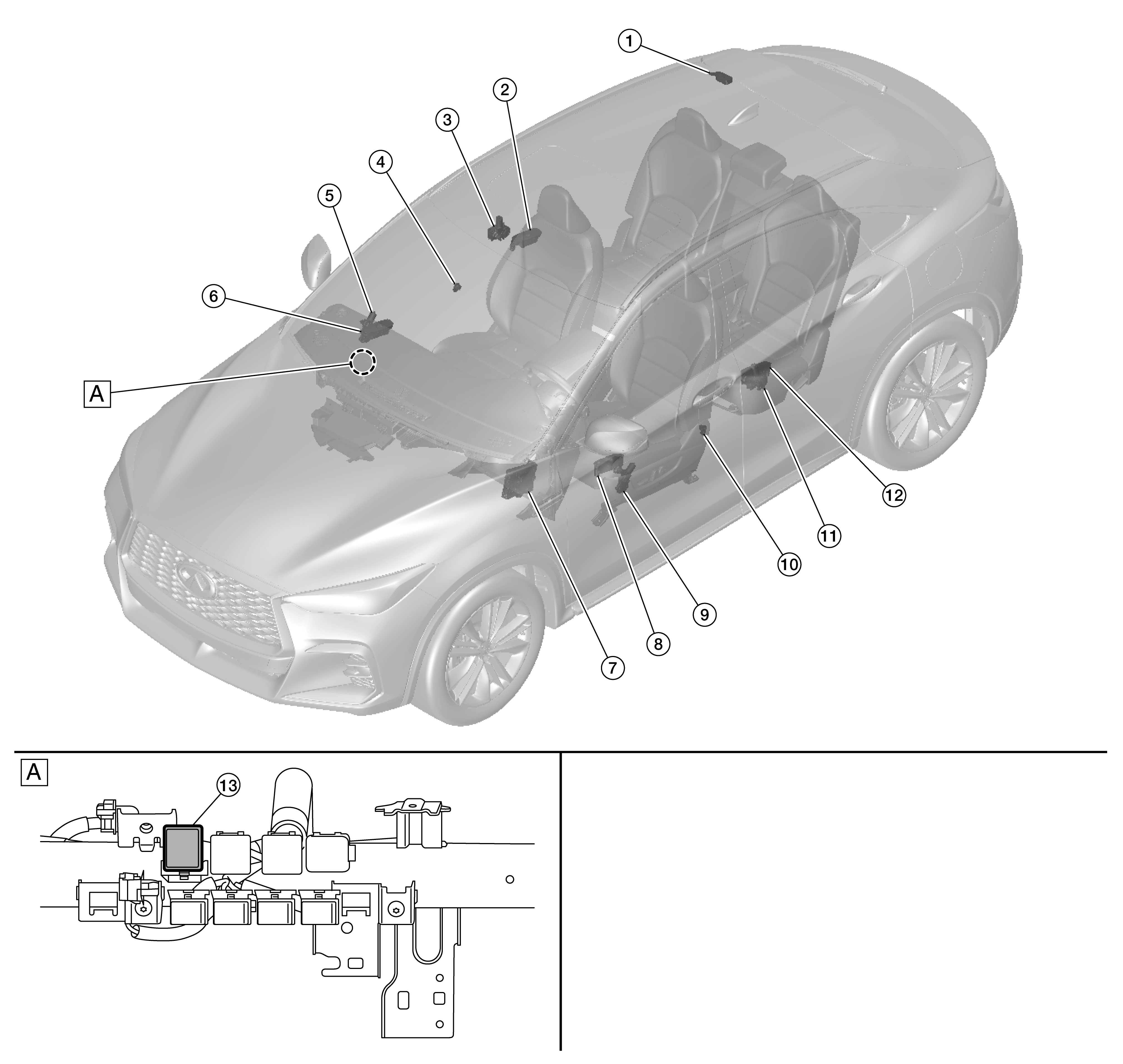

Component Location

A.

Behind RH side of instrument panel (view with instrument panel removed)

No.

Component

Function

1.

Remote keyless entry receiver

Receives key ID signal from the Intelligent Key, and then transmits to BCM. Refer to Remote Keyless Entry Receiver .

2.

Rear power window switch RH

Refer to Rear Power Window Switch LH/RH .

3.

Rear power window motor RH

Refer to Power Window Motor .

4.

Front door switch RH

Detects door open/close condition and transmits to BCM. Refer to Front Door Switch .

5.

Front power window motor RH

Refer to Power Window Motor .

6.

Power window and door lock/unlock switch RH

Refer to Power Window And Door Lock/Unlock Switch RH .

7.

BCM (Body Control Module)

• Supplies power supply to power window switch.
• Controls retained power.
• Receives key ID signal from remote keyless entry receiver.
• Controls keyless power window operation via serial link.

Refer to Component Location .

8.

Main power window and door lock/unlock switch

Refer to Main Power Window And Door Lock/Unlock Switch .

9.

Front power window motor LH

Refer to Power Window Motor .

10.

Front door switch LH

Detects door open/close condition and transmits to BCM. Refer to Front Door Switch .

11.

Rear power window motor LH

Refer to Power Window Motor .

12.

Rear power window switch LH

Refer to Rear Power Window Switch LH/RH .

13.

Power window relay

Supplies power to power window switches, for power window motor operation.
