System Description: Notes
- The system switches fluid pressure of each brake to increase, to hold or to decrease according to signals from control unit in ABS actuator and electric unit (control unit). This control system is applied to VDC function, TCS function, ABS function, EBD function, brake assist function, brake force distribution function.
- Fail-safe function is available for each function and is activated by each function when system malfunction occurs.
- Side slip or tail slip may occur while driving on a slippery road or intending an urgent evasive driving. VDC function detects side slip status using each sensor when side slip or tail slip is about to occur and improves vehicle stability by brake control and engine output control during driving.

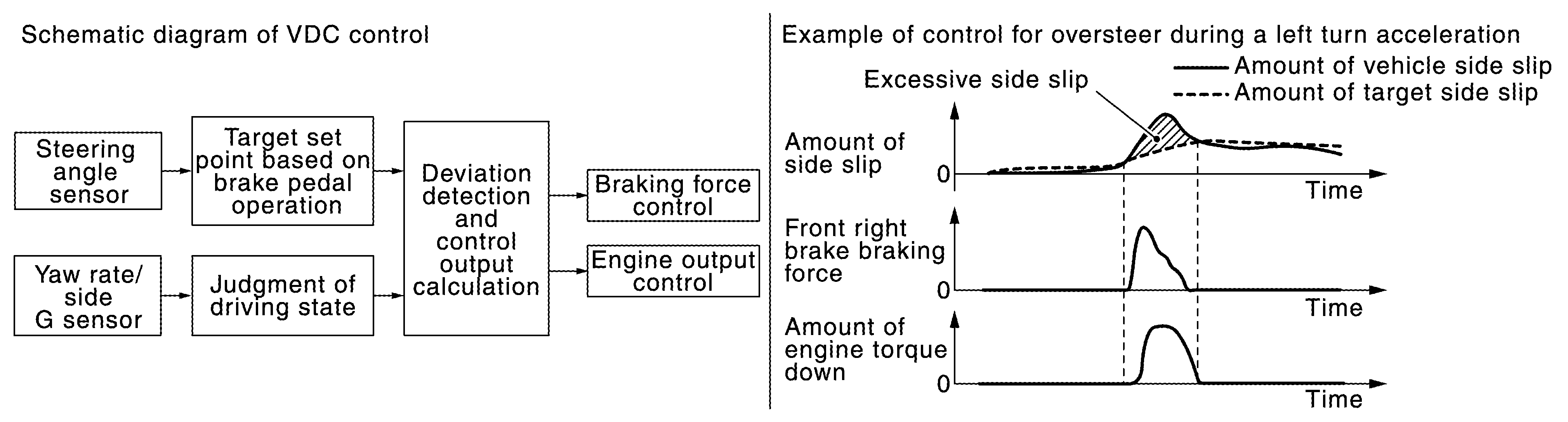

- In addition to TCS function, ABS function and EBD function, target side slip amount is calculated according to steering operation amount from steering angle sensor and brake operation amount from pressure sensor. By comparing this information with vehicle side slip amount that is calculated from information from yaw rate/side G sensor and wheel sensor, vehicle driving conditions (conditions of under steer or over steer) are judged and vehicle stability is improved by brake force control on all 4 wheels and engine output control.
- VDC function can be switched to non-operational status (OFF) by operating VDC OFF switch. In this case, VDC OFF indicator lamp turns ON.
- Control unit portion automatically improves driving stability by performing brake force control as well as engine output control, by transmitting drive signal to actuator portion according to difference between target side slip amount and vehicle side slip amount.
- VDC warning lamp blinks while VDC function is in operation and indicates to the driver that the function is in operation.
- CONSULT can be used to diagnose the system diagnosis.
- Fail-safe function is adopted. When a malfunction occurs in VDC function, the control is suspended for VDC function, TCS function, brake assist function, brake force distribution function, hill start assist function, active trace control function (control of chassis control module) and active ride control function (control of chassis control module). The vehicle status becomes the same as models without VDC function, TCS function, brake assist function, brake force distribution function, active trace control function (control of chassis control module) and active ride control function (control of chassis control module). However, ABS function and EBD function are operated normally. Refer to Fail-Safe .NOTE: VDC has the characteristic as described here, This is not the device that helps reckless driving.
