Removal and Installation: Removal

  1. Using a suitable tool release clips and remove rear center console finisher. Refer to Exploded View .
  2. Using a suitable tool release clips and remove center console finisher (LH). Refer to Exploded View .
  3. Using a suitable tool release clips and pawls and remove the shift selector finisher. Refer to Exploded View .
  4. Disconnect the harness connector from push button ignition switch.
  5. Disconnect the harness connector from electric parking brake switch.
  6. Disconnect the harness connector from drive mode switch.

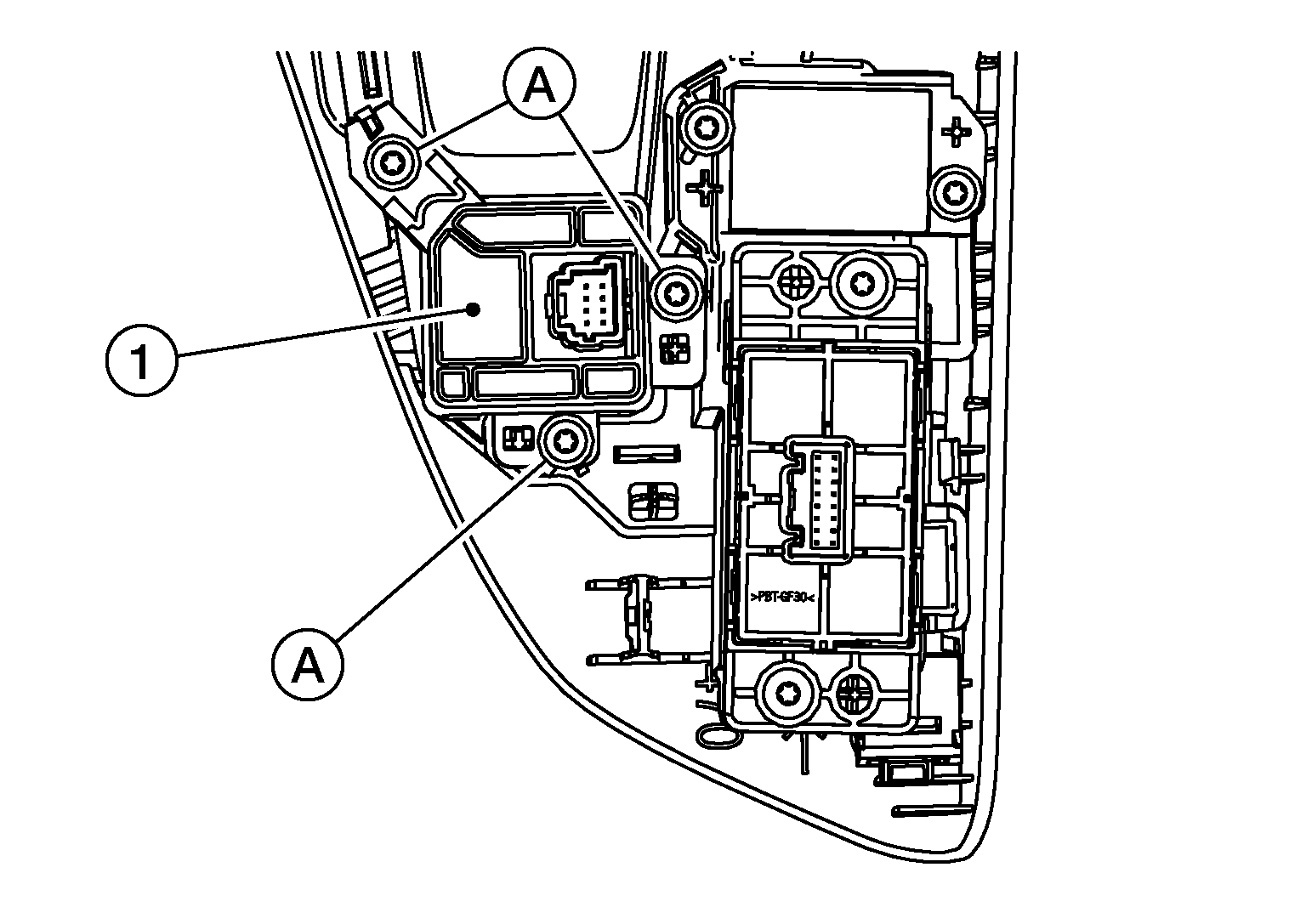

  7. Remove screws (A) and remove drive mode switch (1) from shift selector finisher.
    GNSALOIA0134Z-134Courtesy of NISSAN NORTH AMERICA, INC.

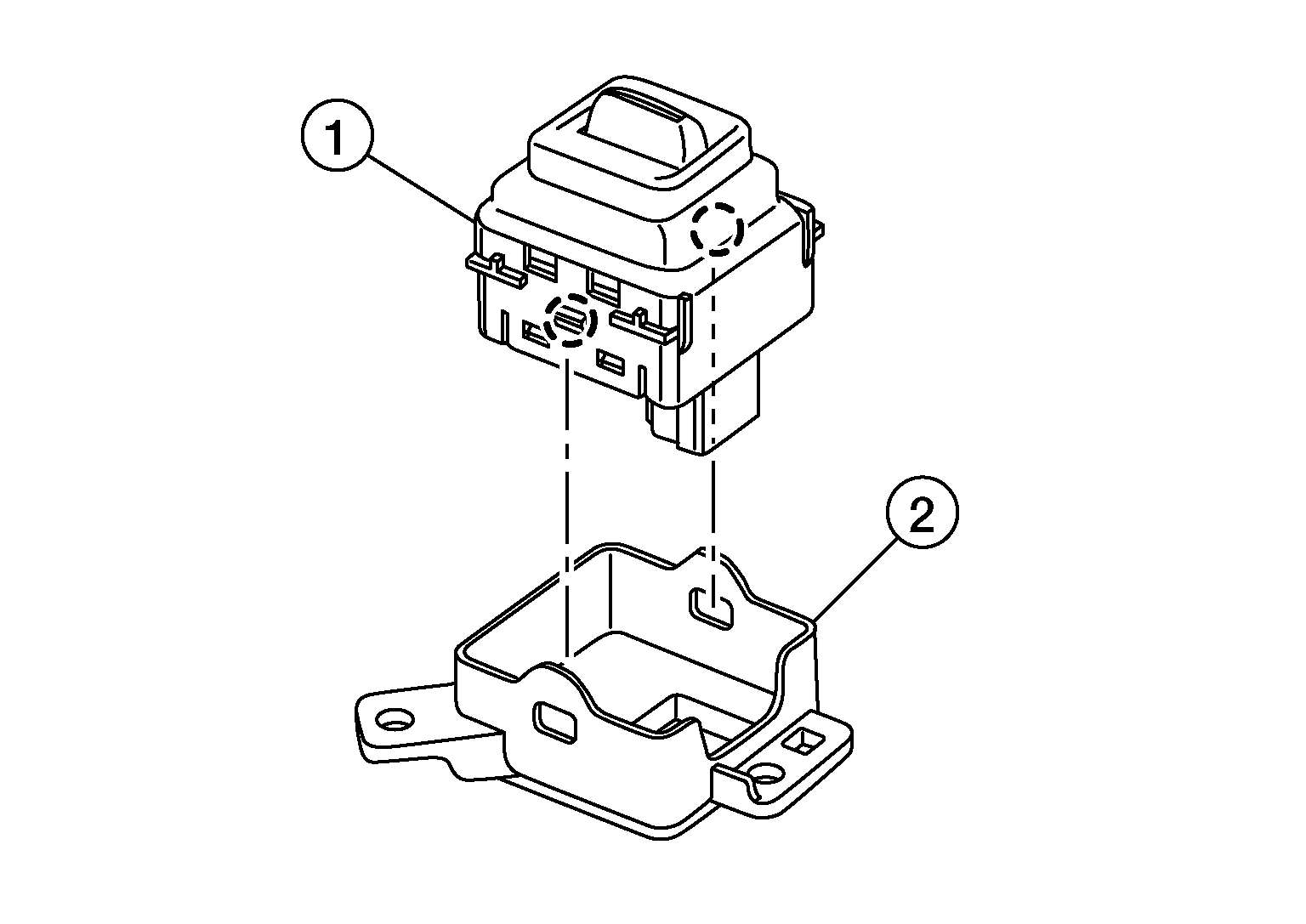

  8. Using a suitable tool release pawls and remove the drive mode switch (1) from the drive mode switch carrier (2).
    GNSALOIA0136Z-136Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
