Commercial Service Tools

Tool name (TechMate No.)	Description

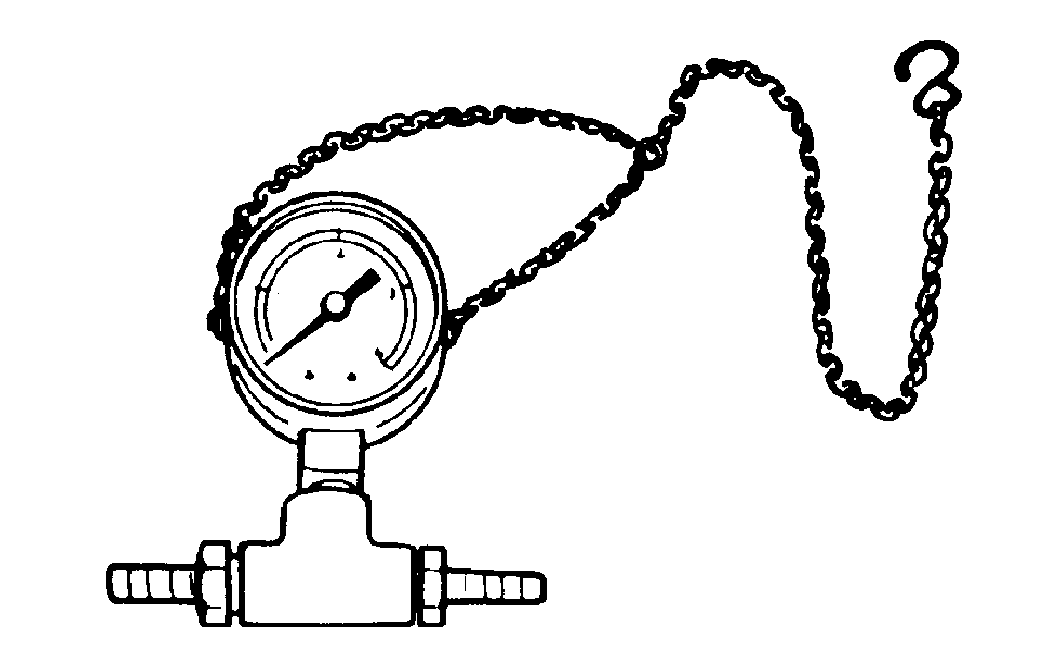

Fuel pressure gauge (--)	Courtesy of NISSAN NORTH AMERICA, INC.	Measuring fuel pressure

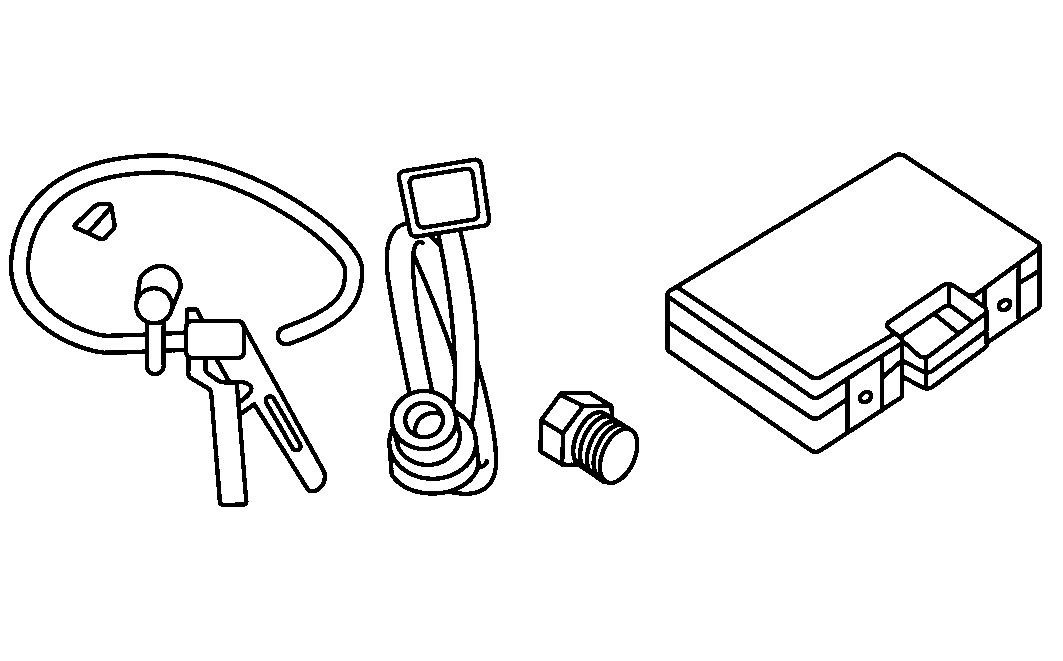

Leak detector i.e.: (J-41416)	Courtesy of NISSAN NORTH AMERICA, INC.	Locates the EVAP leak

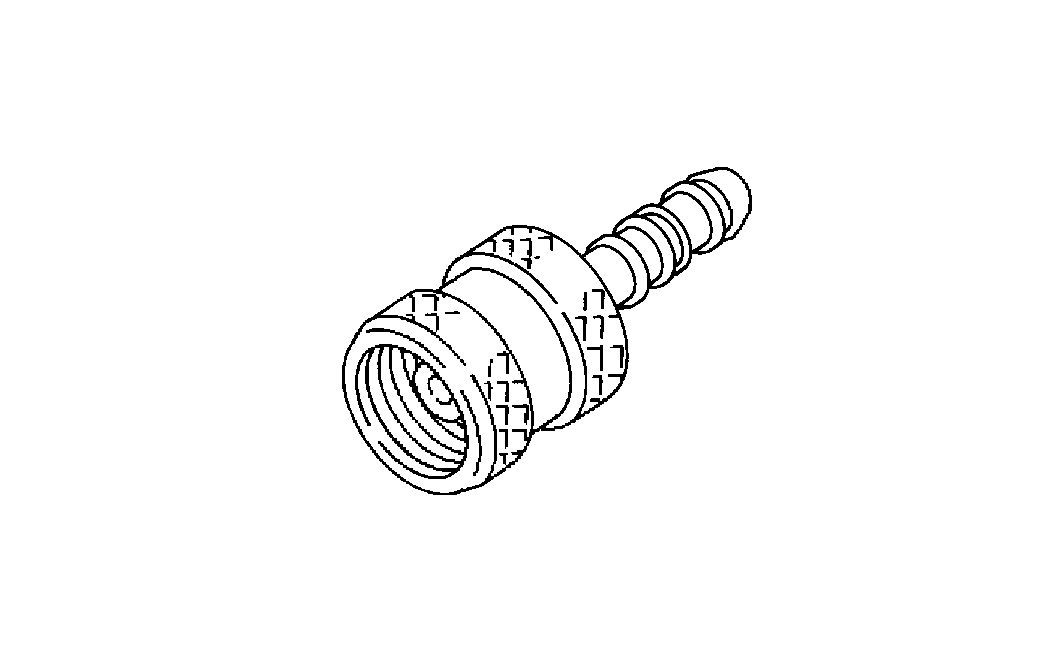

EVAP service port adapter i.e.: (J-41413-OBD)	Courtesy of NISSAN NORTH AMERICA, INC.	Applies positive pressure through EVAP service port
Fuel filler cap adapter i.e.: (J-42909)	Courtesy of NISSAN NORTH AMERICA, INC.	Checks fuel tank vacuum relief valve opening pressure

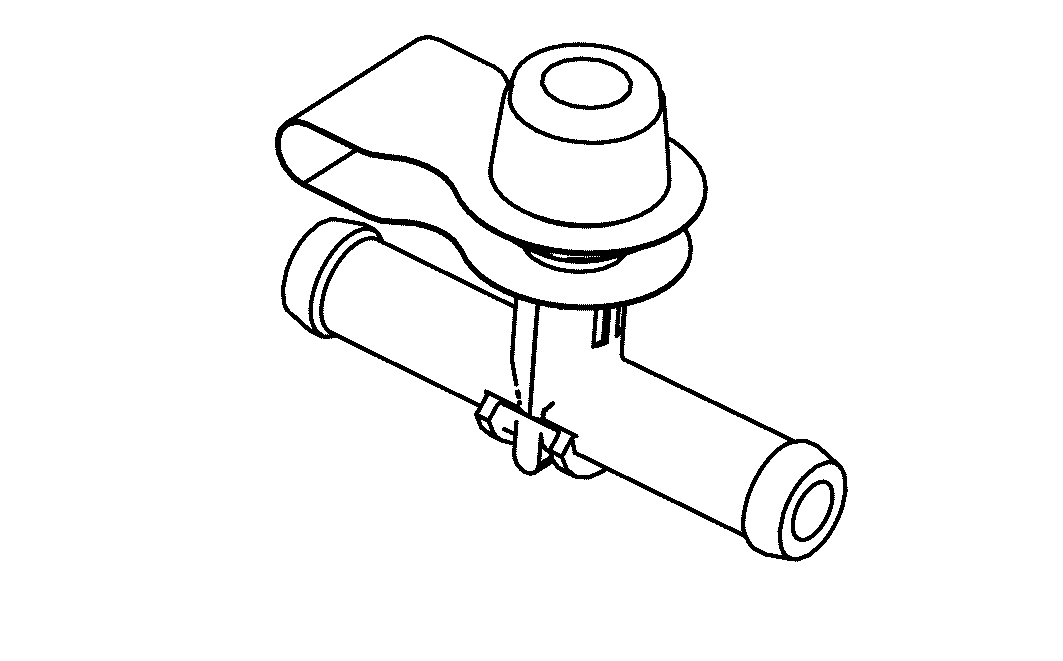

EVAP service port	Courtesy of NISSAN NORTH AMERICA, INC.	Connects pressure pump to EVAP line (Par No. 149393S500) NOTE: This tool is used if the vacuum delay valve does not have EVAP service port.
