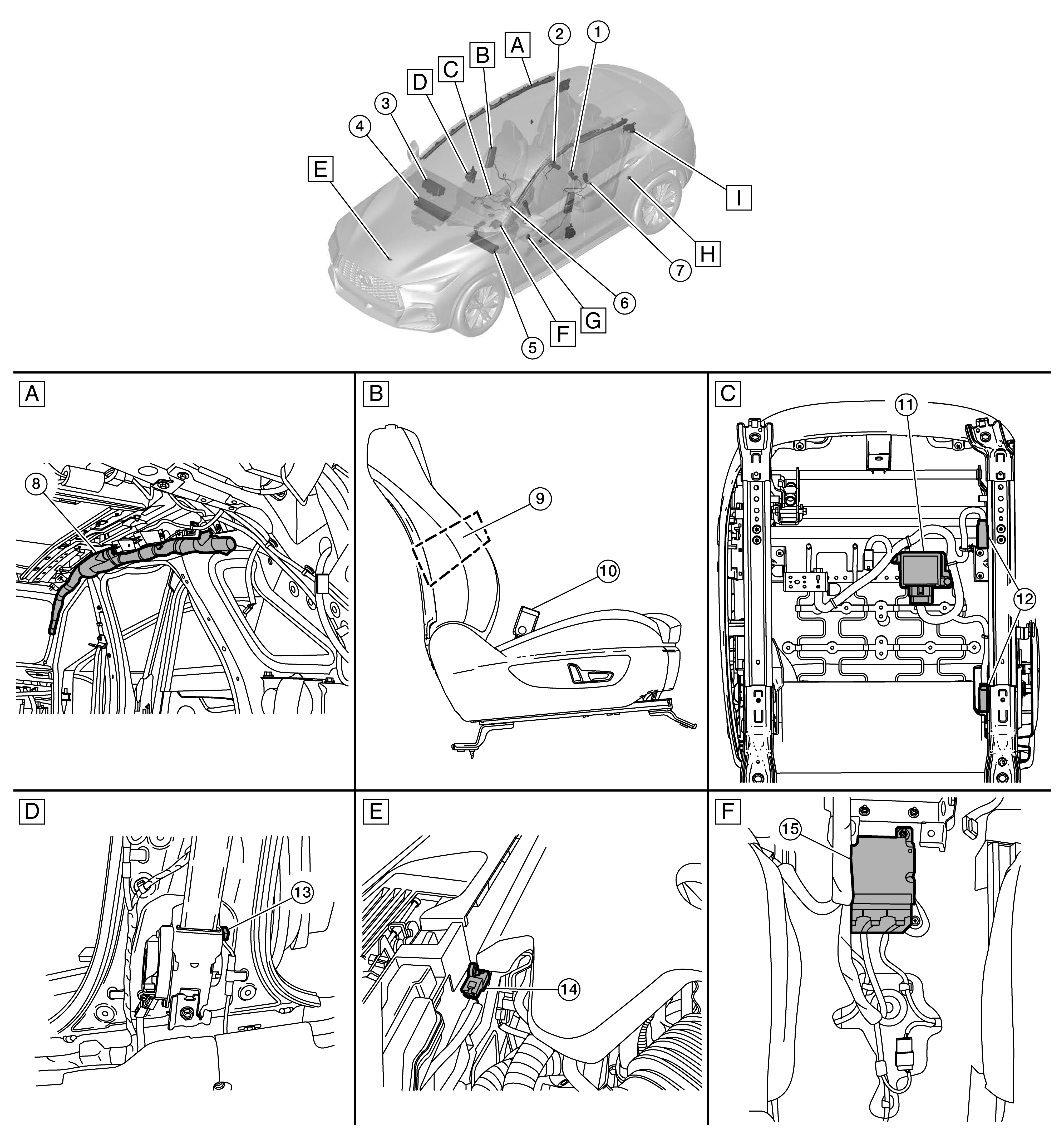

Component Location
|
A. |
View with headlining removed |
B. |
RH front passenger seat (view with front RH seat removed from vehicle) |
C. |
Occupant classification system (view with front RH seat removed from vehicle) |
|
D. |
View with lower B-pillar finisher removed |
E. |
Radiator core support assembly |
F. |
View with center console removed |
|

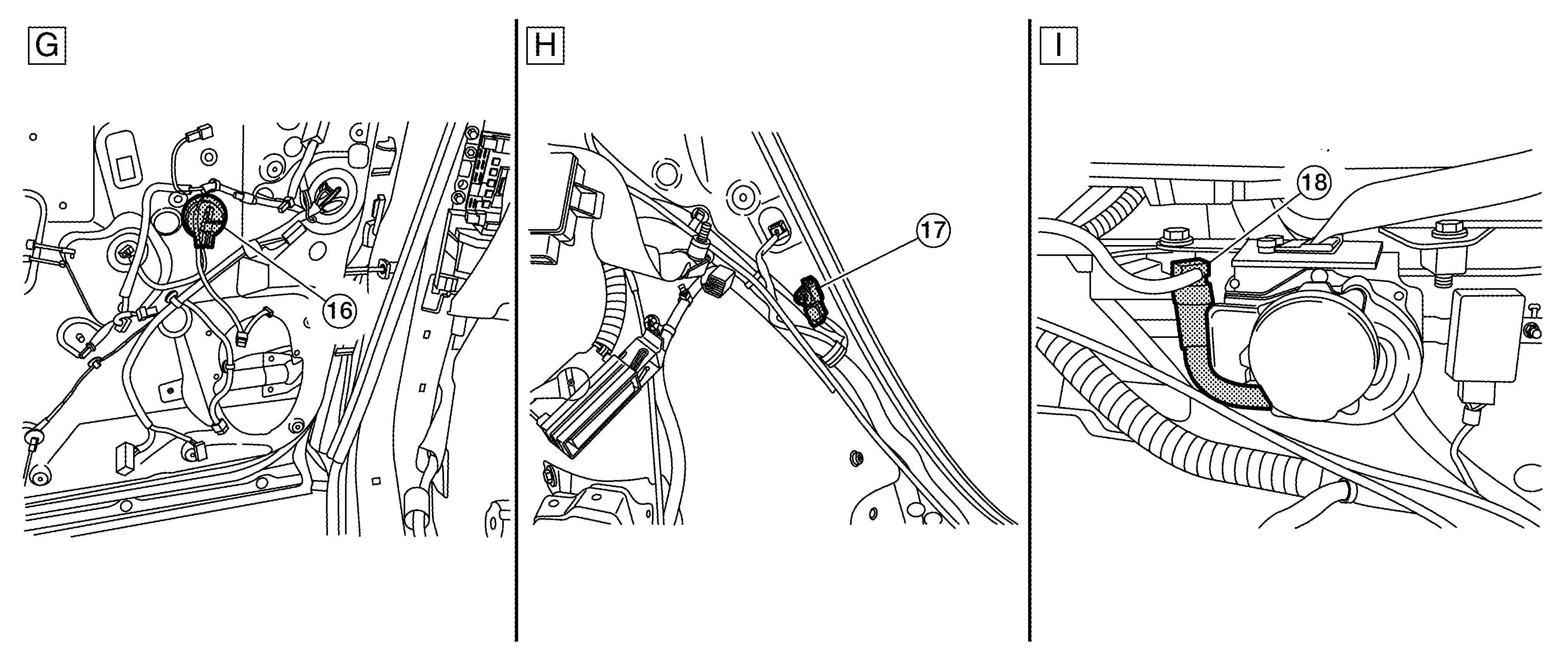

G. |
View with driver's door finisher removed |
H. |
View with lower C-pillar finisher removed |
I. |
View with C-pillar luggage side finisher removed |
|
No. |
Component |
Function |
|
1. |
Rear seat belt buckle switch RH |
The rear seat belt buckle switch RH provides the seat belt buckle signals to the air bag diagnosis sensor unit. |
|
2. |
Rear seat belt buckle switch (center) |
The rear seat belt buckle switch (center) provides the seat belt buckle signals to the air bag diagnosis sensor unit. |
|
3. |
Front passenger air bag module |
Refer to Front Passenger Air Bag Module . |
|
4. |
Right knee air bag module |
Refer to Knee Air Bag Module . |
|
5. |
Left knee air bag module |
Refer to Knee Air Bag Module . |
|
6. |
Driver air bag module |
Refer to Drivers Air Bag Module . |
|
7. |
Rear seat belt buckle switch LH |
The rear seat belt buckle switch LH provides the seat belt buckle signals to the air bag diagnosis sensor unit. |
|
8. |
RH side curtain air bag module (LH similar) |
Refer to Side Curtain Air Bag Module . |
|
9. |
Front RH side air bag module (LH similar) |
Refer to Front Side Air Bag Module . |
|
10. |
Front seat belt buckle switch RH (LH similar) |
The front seat belt buckle switch RH provides the seat belt buckle signals to the air bag diagnosis sensor unit and the combination meter. |
|
11. |
Occupant classification system control unit |
Refer to System Description . |
|
12. |
Occupant classification system sensors |
Refer to System Description . |
|
13. |
Front RH seat belt pre-tensioner (LH similar) |
Refer to Front Seat Belt Pre-Tensioner . |
|
14. |
Crash zone sensor |
Refer to Crash Zone Sensor . |
|
15. |
Air bag diagnosis sensor unit |
Refer to Air Bag Diagnosis Sensor Unit . |
|
16. |
Front door satellite sensor LH (RH similar) |
Refer to Front Door Satellite Sensor . |
|
17. |
Rear side air bag satellite sensor LH (RH similar) |
Refer to Rear Side Air Bag Satellite Sensor . |
|
18. |
Rear LH seat belt pre-tensioner (RH similar) |
Refer to Rear Seat Belt Pre-Tensioner . |
