Removal and Installation: Removal

  1. Remove front door finisher. Refer to Removal and Installation .

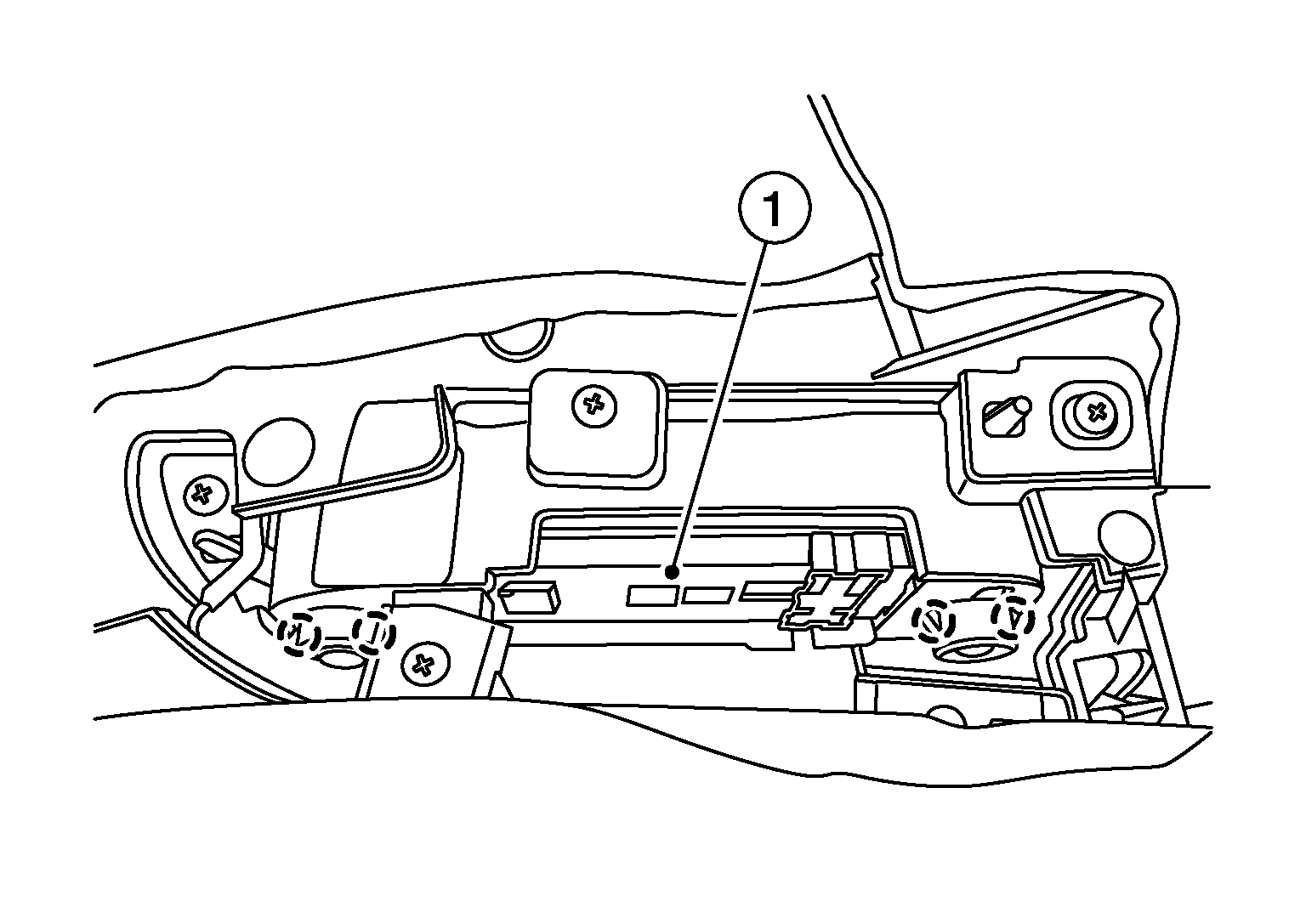

  2. Using suitable tool, release pawls and remove main power window and door lock/unlock switch (1).
    GNSDB38509Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
