Individual Operation

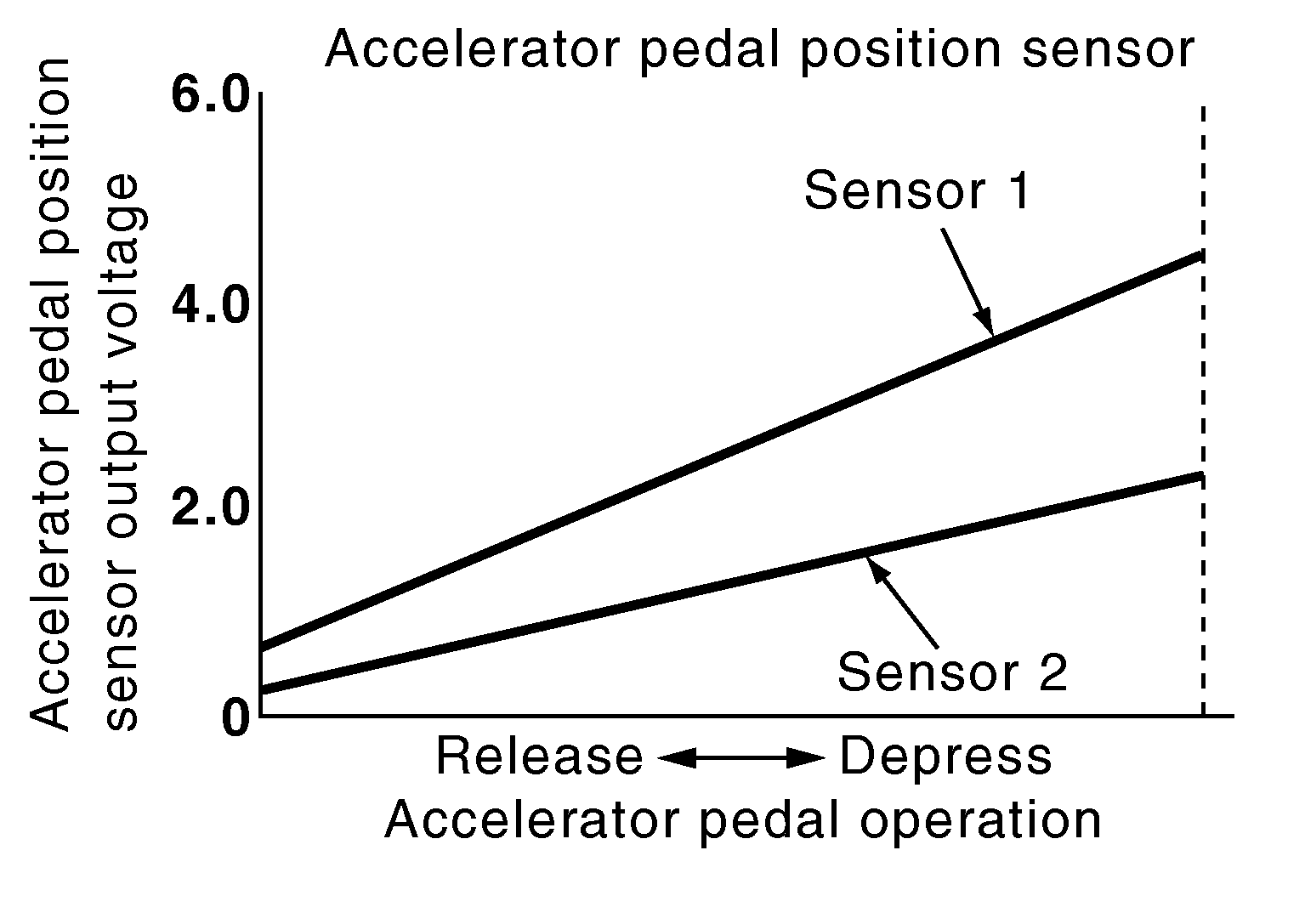

The accelerator pedal position sensor has two sensors. These sensors are a kind of potentiometers which transform the accelerator pedal position into output voltage, and emit the voltage signal to the ECM.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
