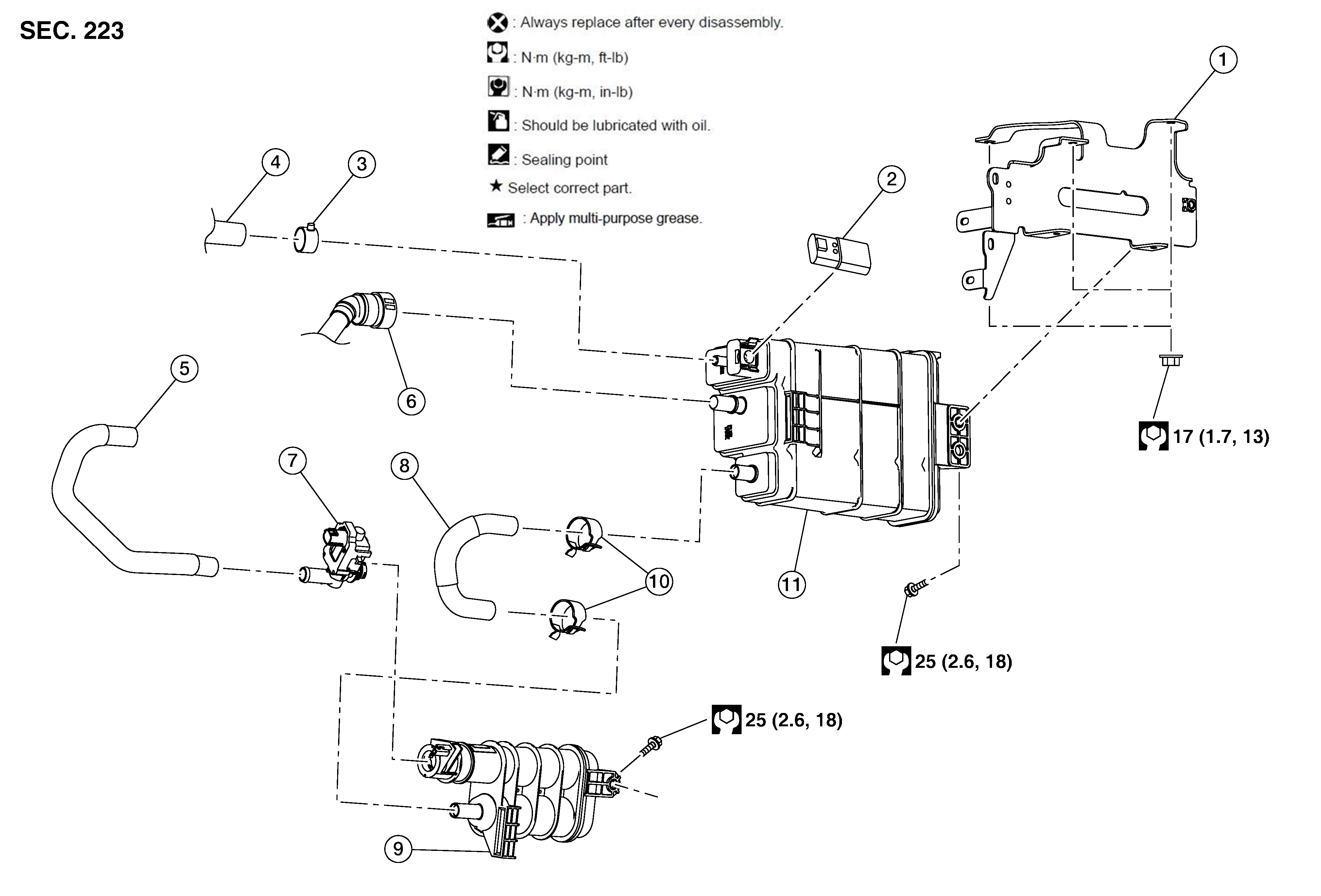

Exploded View

1.

EVAP canister bracket

2.

EVAP control system pressure sensor (with O-ring)

3.

Clamp

4.

EVAP canister purge hose

5.

EVAP tube

6.

EVAP vent line

7.

EVAP canister vent control valve

8.

EVAP canister vent control valve hose

9.

Secondary EVAP canister

10.

Clamp

11.

EVAP canister
