Removal and Installation

REMOVAL

Remove front door finisher. Refer to Removal and Installation .

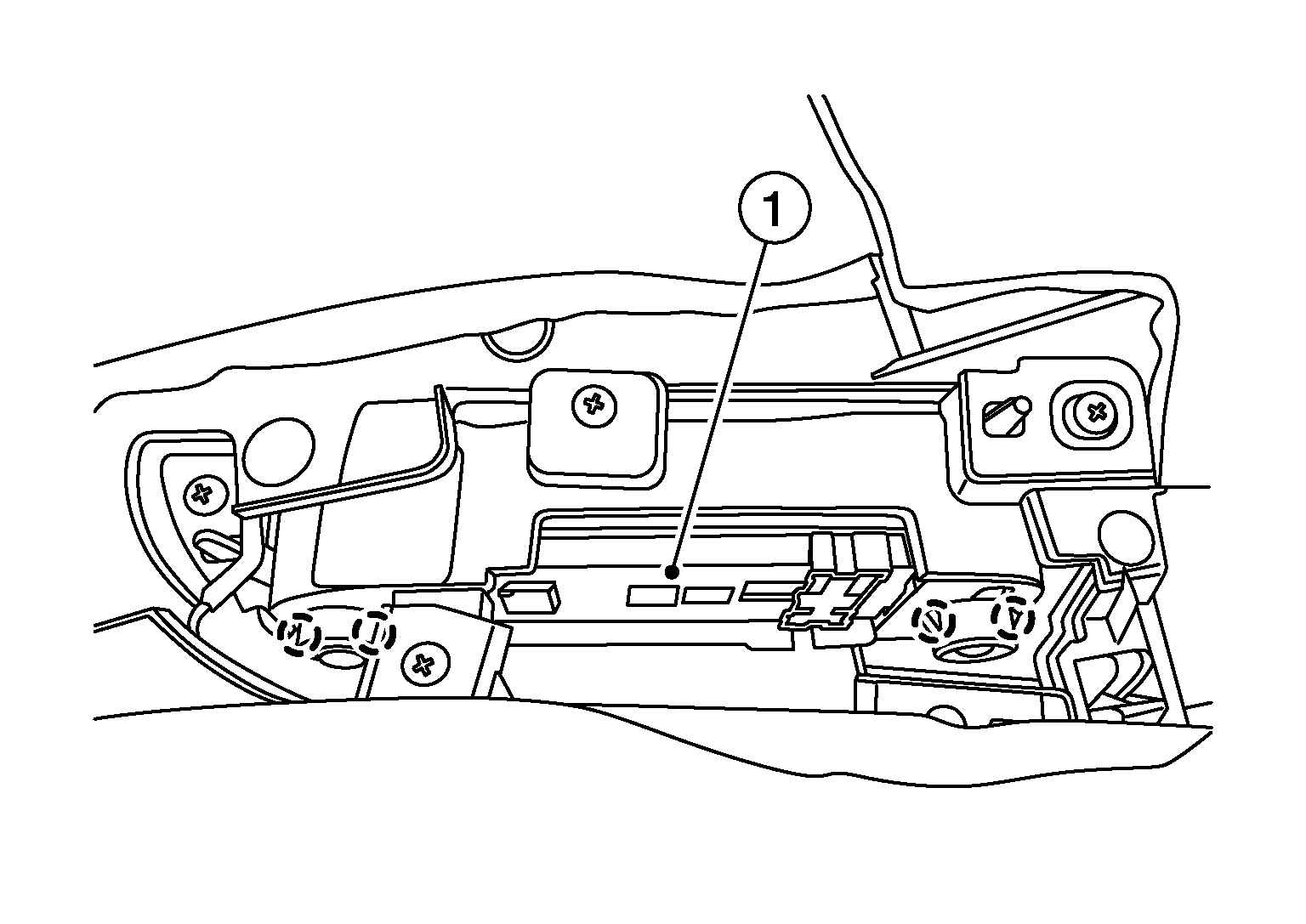

Using suitable tool, release pawls and remove main power window and door lock/unlock switch (1).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When main power window and door lock/unlock switch is removed or replaced, it is necessary to perform the initialization procedure. Refer to Description .
When main power window and door lock/unlock switch is removed or replaced, it is necessary to perform the check anti-pinch procedure. Refer to Description .
