Crankshaft Position Sensor
FUNCTIONS WITHIN THE SYSTEM
The ECM judges the engine speed based on the crankshaft position signal that is input into it. It also includes a reverse rotation detection function, and if it detects reverse engine rotation while idling stop is activated, it performs early start control when the engine restarts.
INDIVIDUAL FUNCTION WITHIN THE SYSTEM
The ECM inputs the voltage change caused by the change in magnetic field generated close to the crankshaft position sensor as signal voltage.
INDIVIDUAL OPERATION

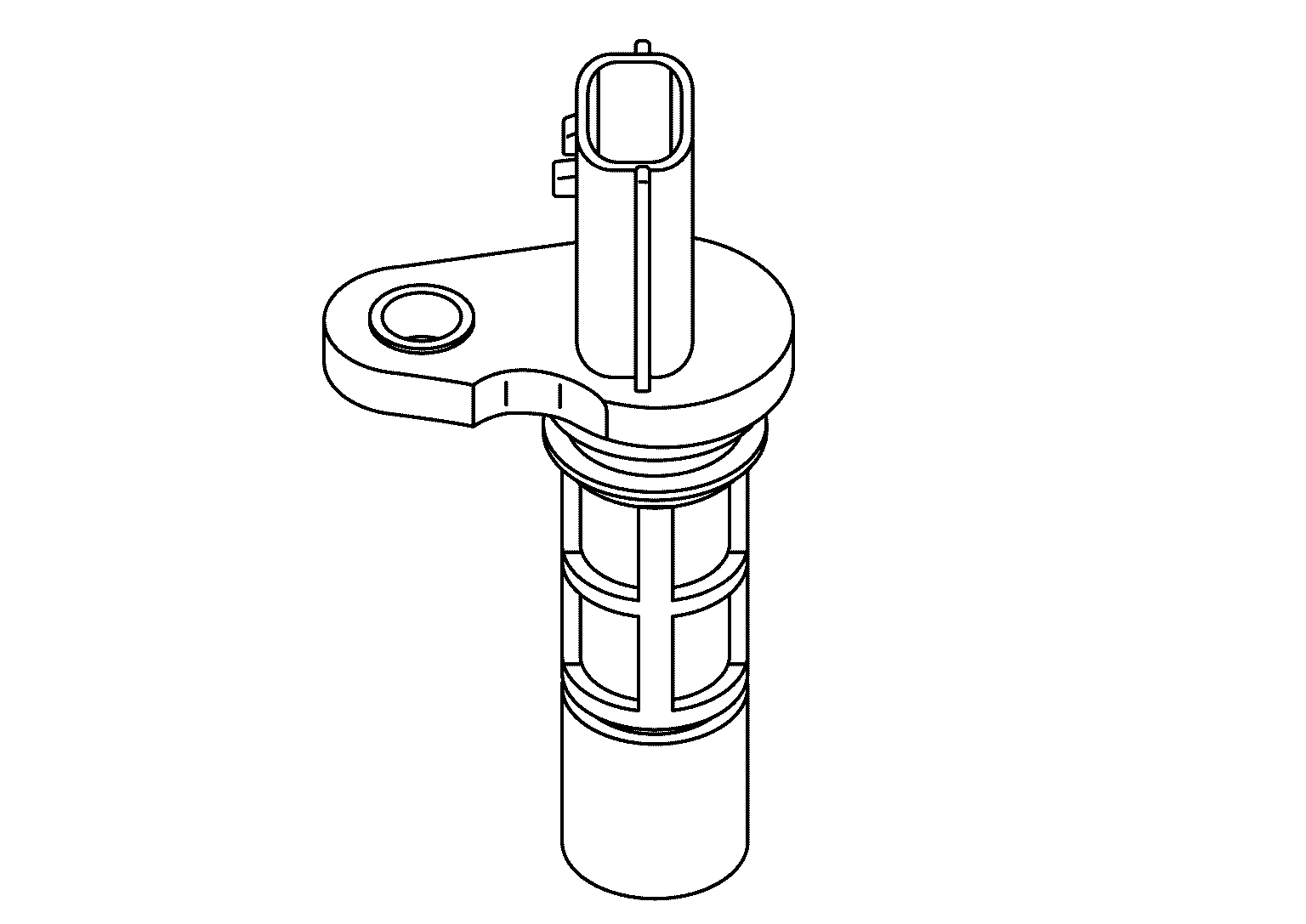

Crankshaft position sensor consists of a permanent magnet and Hall IC. When the engine is running, the high and low parts of the teeth cause the gap with the sensor to change. The changing gap causes the magnetic field near the sensor to change. Due to the changing magnetic field, the voltage from the sensor changes.
COMPONENT LOCATION
Crankshaft position sensor (POS) is installed on the cylinder block rear end.
