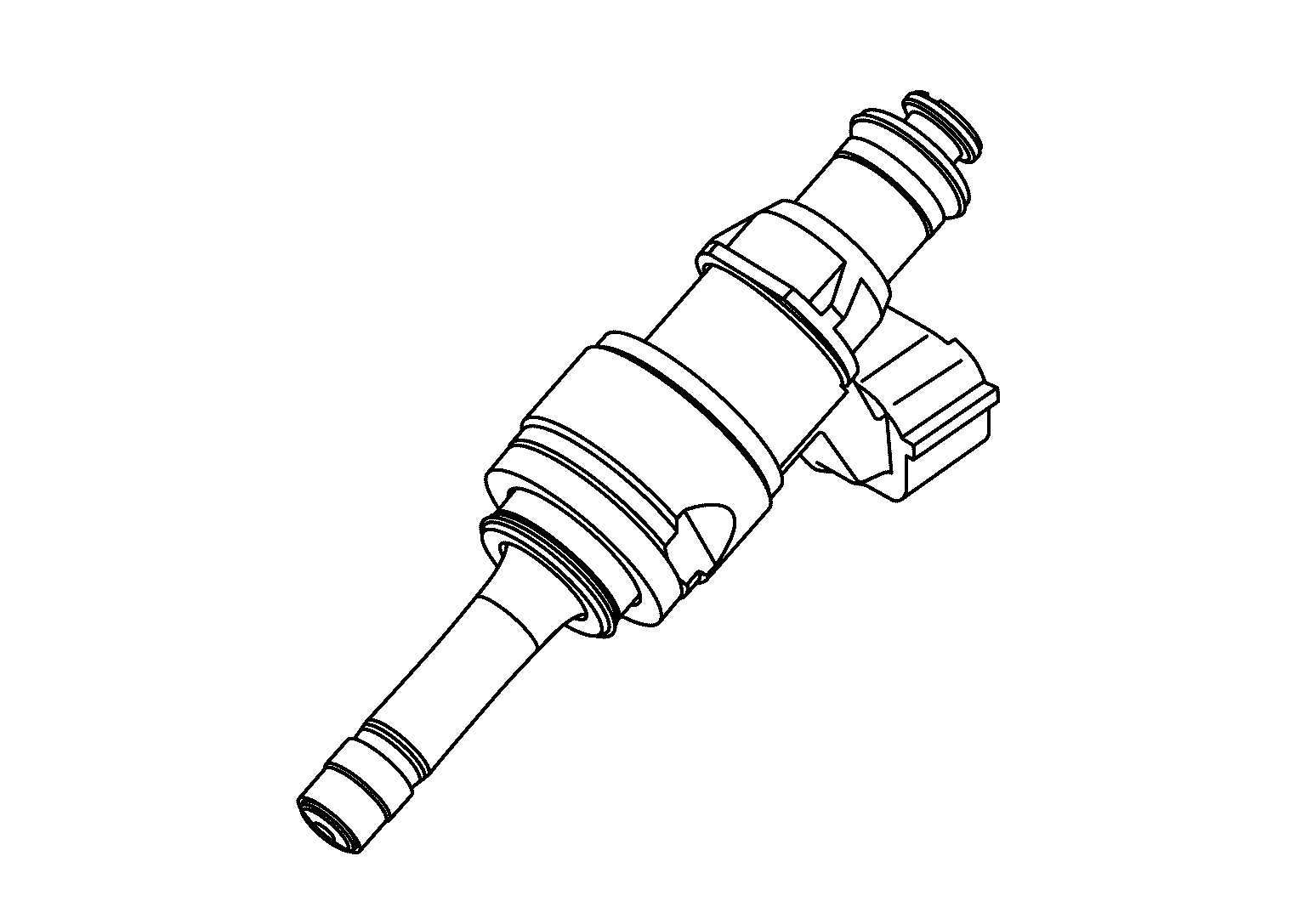

Direct Fuel Injector
FUNCTIONS WITHIN THE SYSTEM
The direct fuel injectors directly injects atomized high-pressure fuel into the cylinders. The injector driver is inside the ECM and drives the direct fuel injectors by means of high voltage (maximum approximately 65 V).
INDIVIDUAL FUNCTION WITHIN THE SYSTEM
The direct fuel injectors inject the high-pressure fuel directly into the cylinders in an extremely short amount of time.
INDIVIDUAL OPERATION
The direct fuel injectors inject the fuel as a mist that allows it to combust efficiently.
COMPONENT LOCATION
A direct fuel injector is installed on each cylinder.
