Engine Oil Pressure Sensor
FUNCTIONS WITHIN THE SYSTEM
When the ECM detects low engine oil pressure, it turns ON the oil pressure warning lamp on the combination meter.
INDIVIDUAL FUNCTION WITHIN THE SYSTEM
Engine oil pressure (EOP) sensor is detects engine oil pressure and transmits a voltage signal to the ECM.
INDIVIDUAL OPERATION

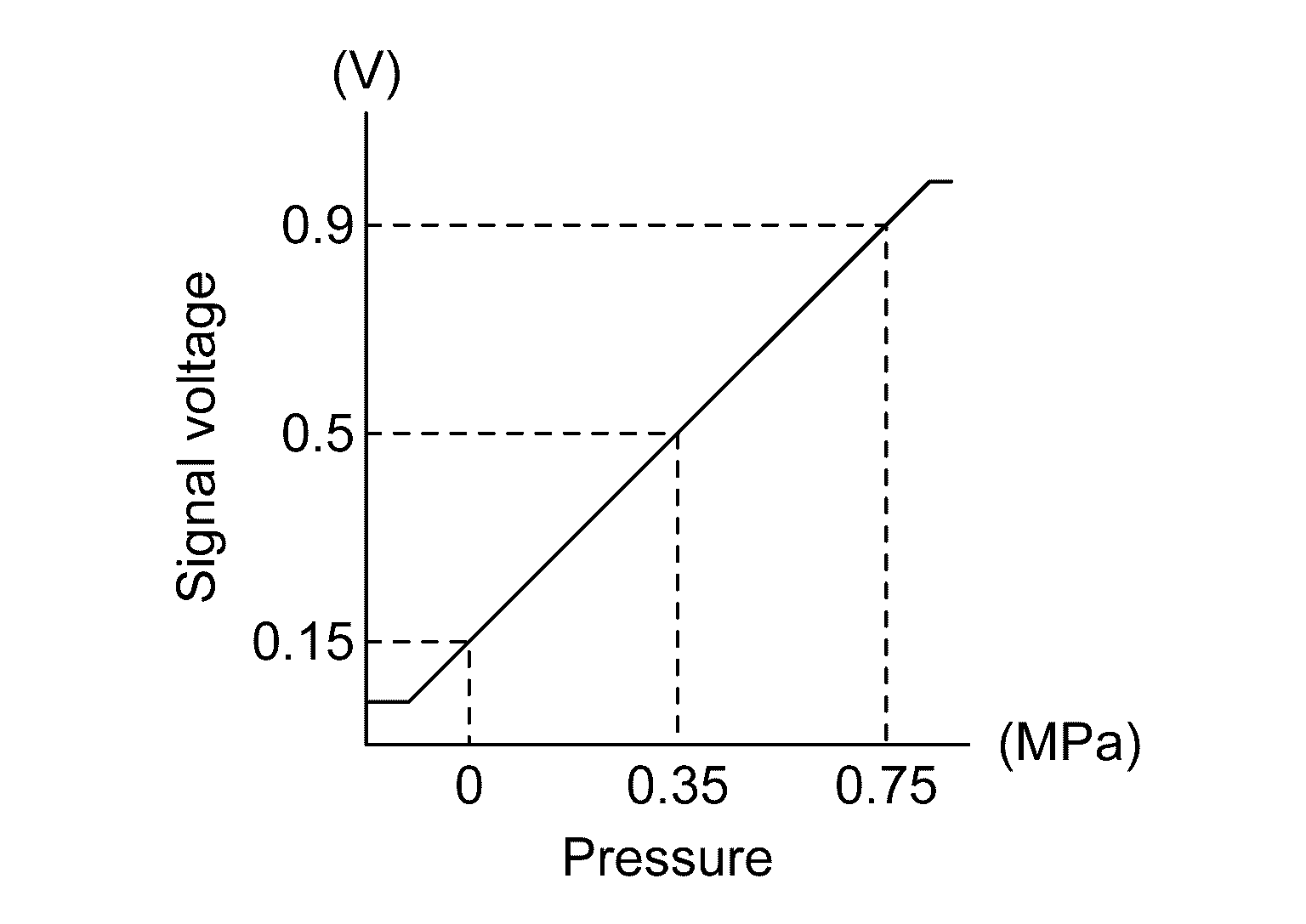

When the engine oil pressure rises, the signal voltage increases.
COMPONENT LOCATION

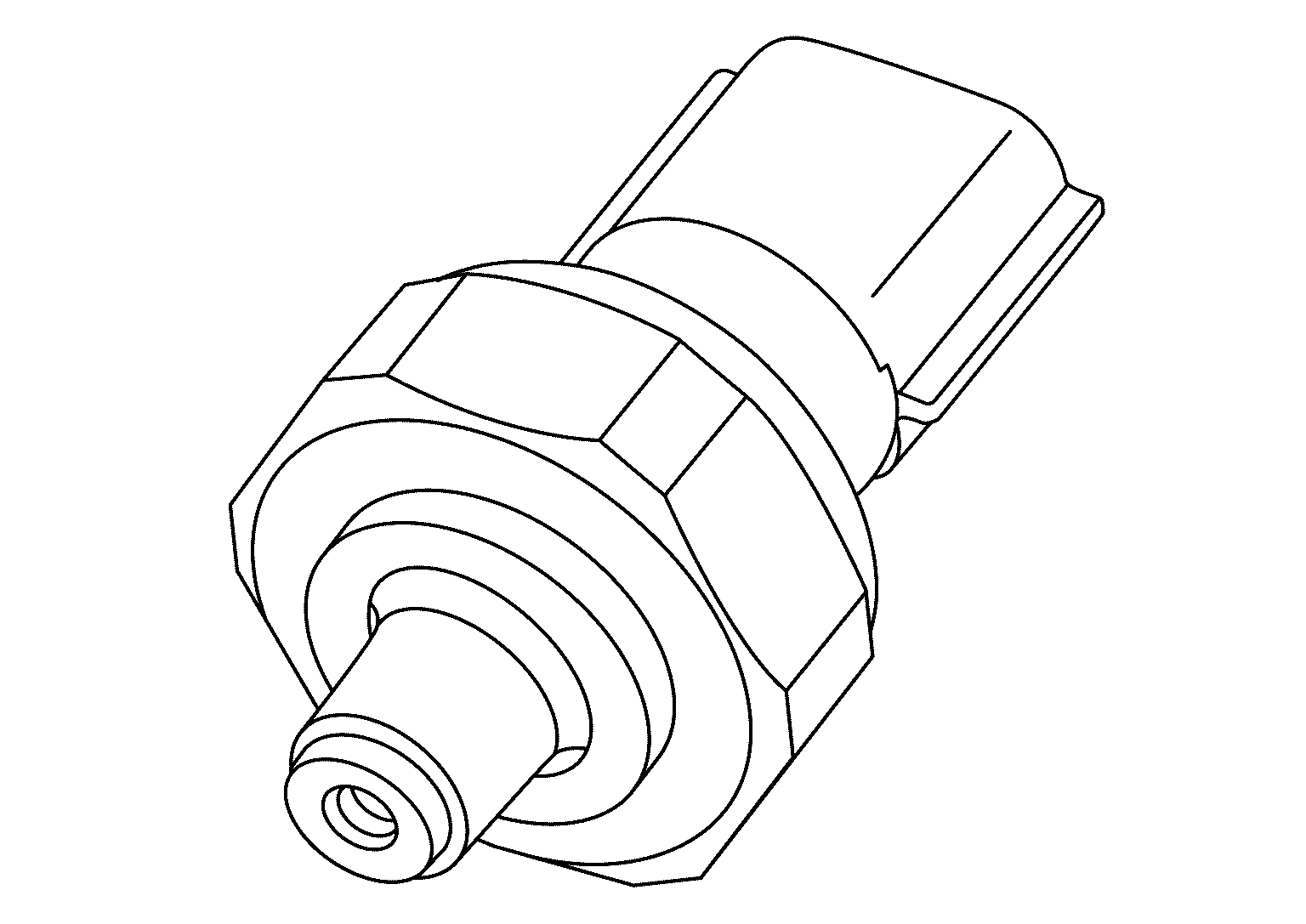

The engine oil pressure sensor is installed to cylinder block.
