Disassembly and Assembly

Disassembly

NOTE: Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to the terminals.

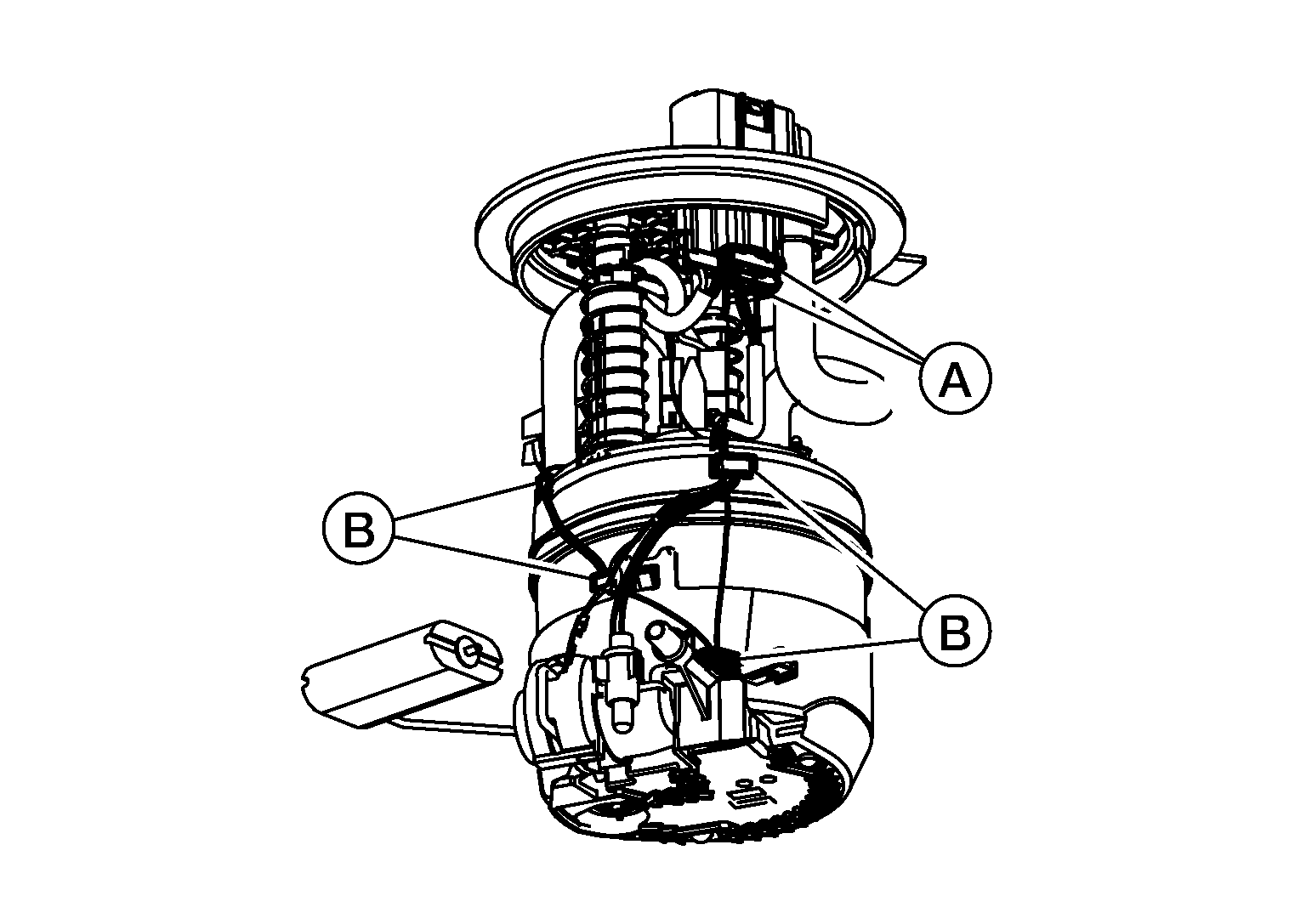

1. Disconnect fuel level sensor unit and fuel tank temperature sensor harness connectors (A).

   Courtesy of NISSAN NORTH AMERICA, INC.

2. Remove wires from wire clips (B).
   CAUTION:

   Be careful not to damage wires when removing them from wire clips.

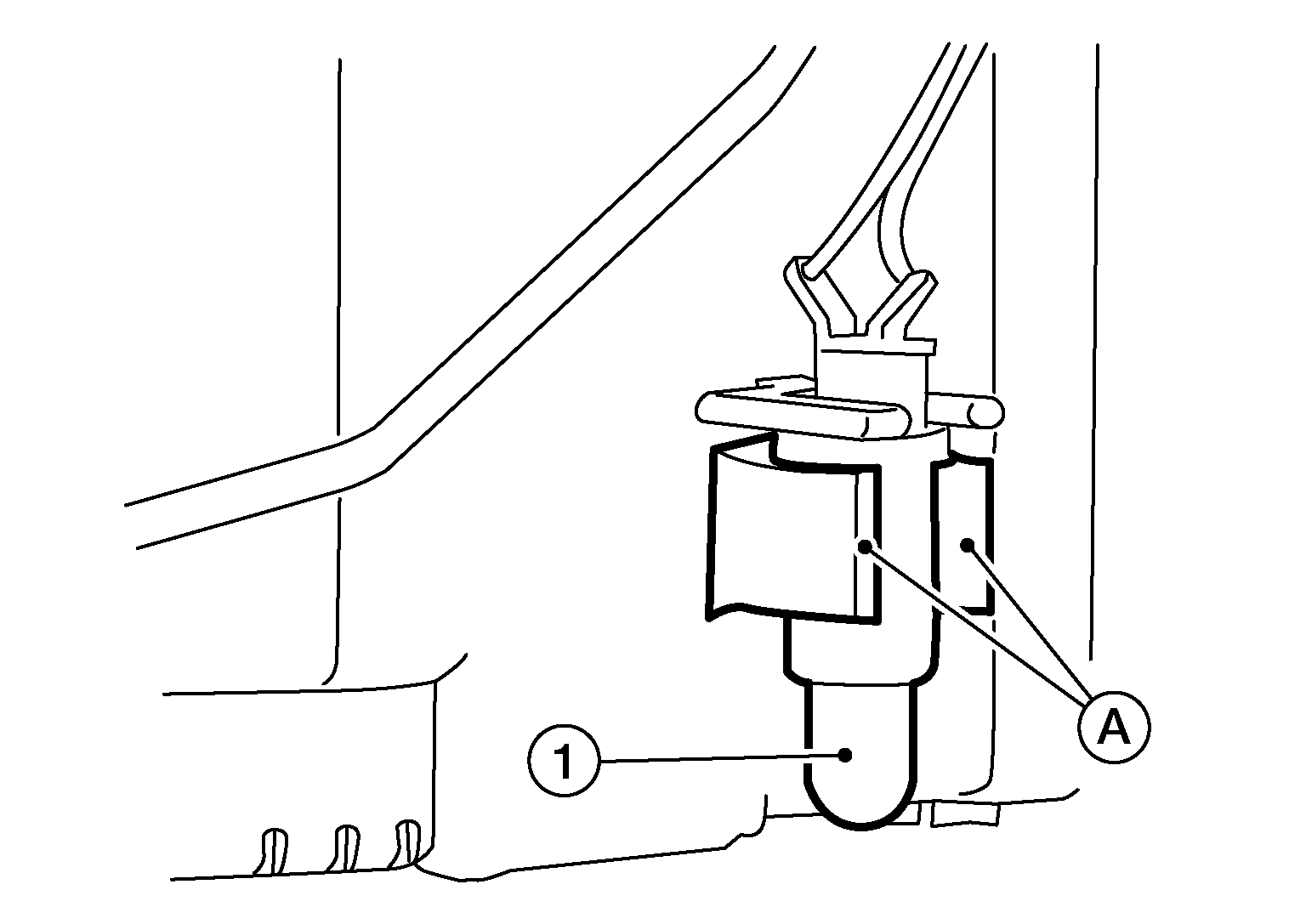

3. Release clips (A), then remove fuel temperature sensor (1) from fuel filter and fuel pump assembly.

   Courtesy of NISSAN NORTH AMERICA, INC.

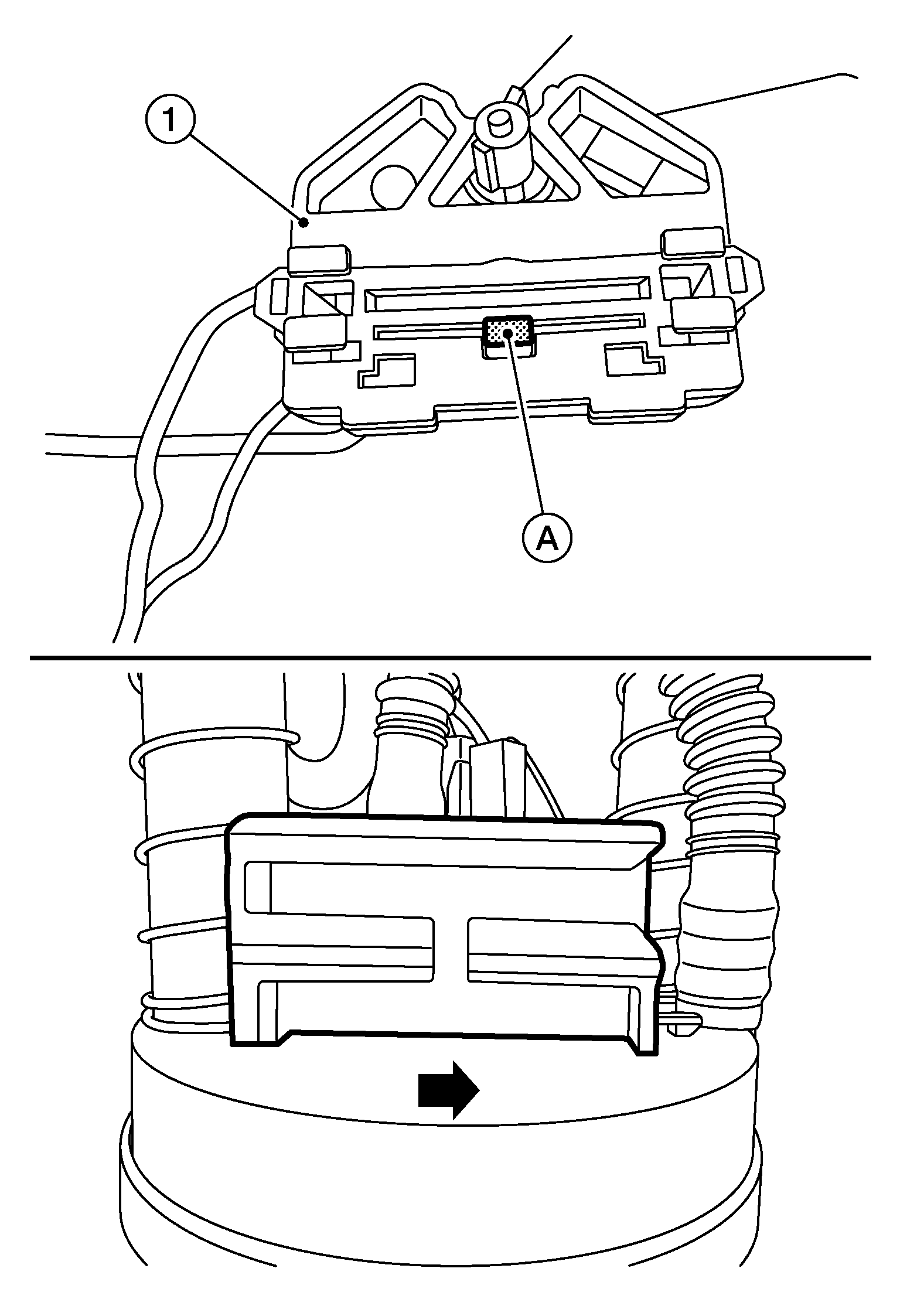

4. Release tab (A) using suitable tool, then slide fuel level sensor unit (1) in direction shown in the illustration.

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE: Fuel level sensor unit shown in the illustration removed from fuel filter and fuel pump assembly for clarity.

Assembly

Assembly is in the reverse order of disassembly.

NOTE:

• Ensure proper placement of the wires to the correct terminals and correct wire routing to the terminals.
• After connecting terminals, ensure they are securely locked and cannot be pulled out.
