QX55 Essential
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Unit Disassembly And Assembly
>>
Fuel Level Sensor Unit
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

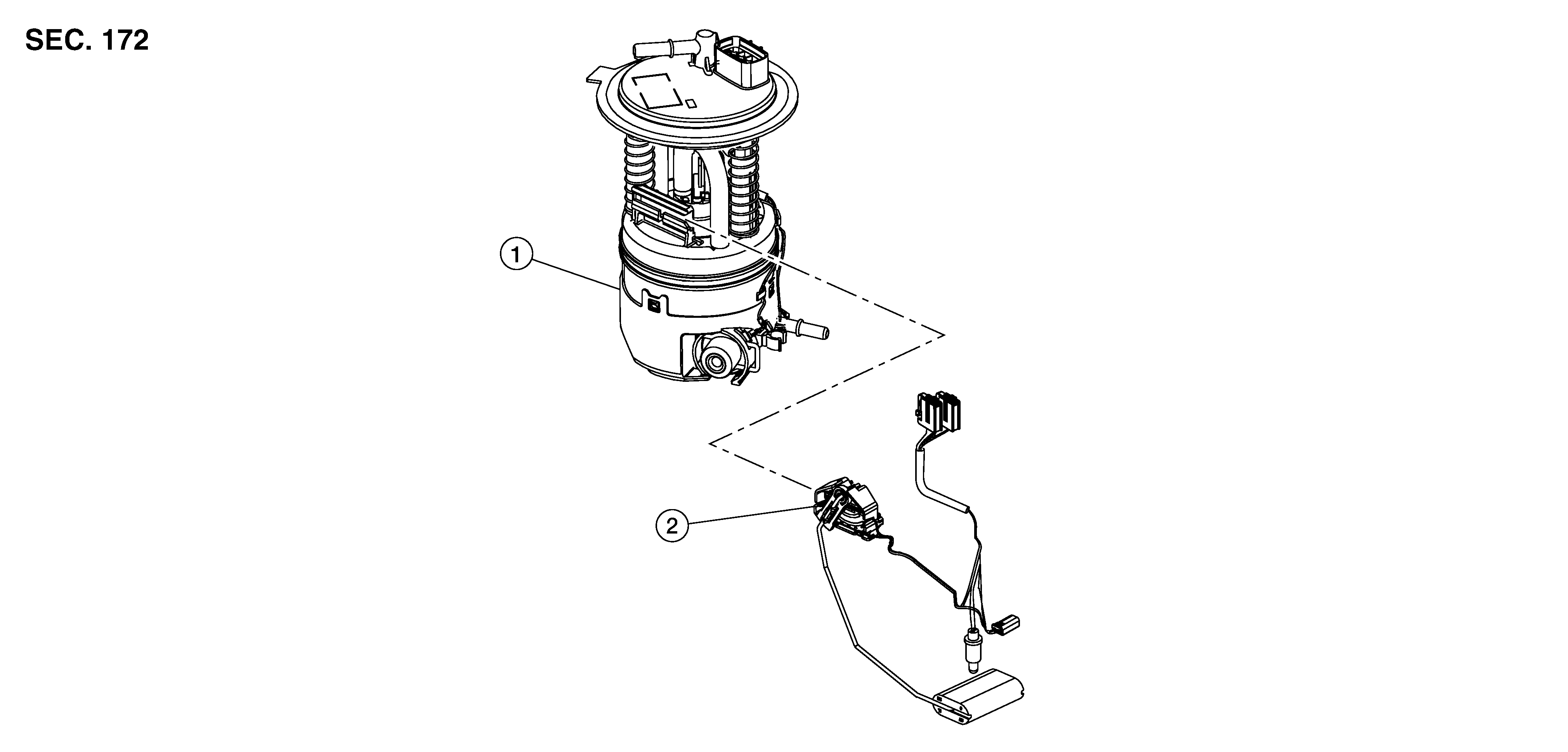

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel filter and fuel pump assembly
2.
Fuel level sensor
Courtesy of NISSAN NORTH AMERICA, INC.
