Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Heater Blower Motor Resistor | On heater box. |
| Cruise Control Servo | At left front corner of engine compartment. |
| Diagnostic Connector | Under left side of dash near MCU. |
| Multi-Display Unit | In center of instrument panel console. |

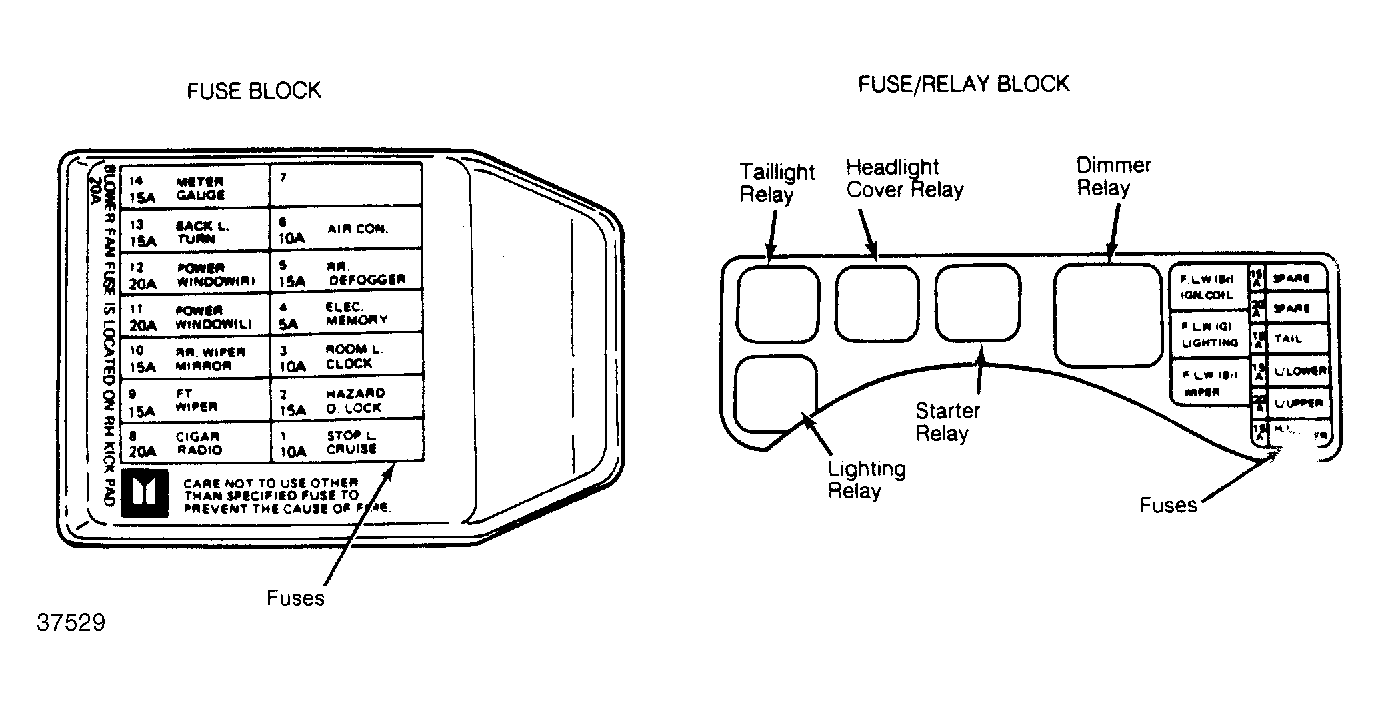

| Fuse Block | Under left side of dash. |
| Fuse/Relay Block | In front of battery. See Figure & Figure . |
| Relay Block | On right inner fender panel. See Figure . |
