Fuel Evaporation System: Maintenance

The system and all components should be inspected for condition and function every 15,000 miles.

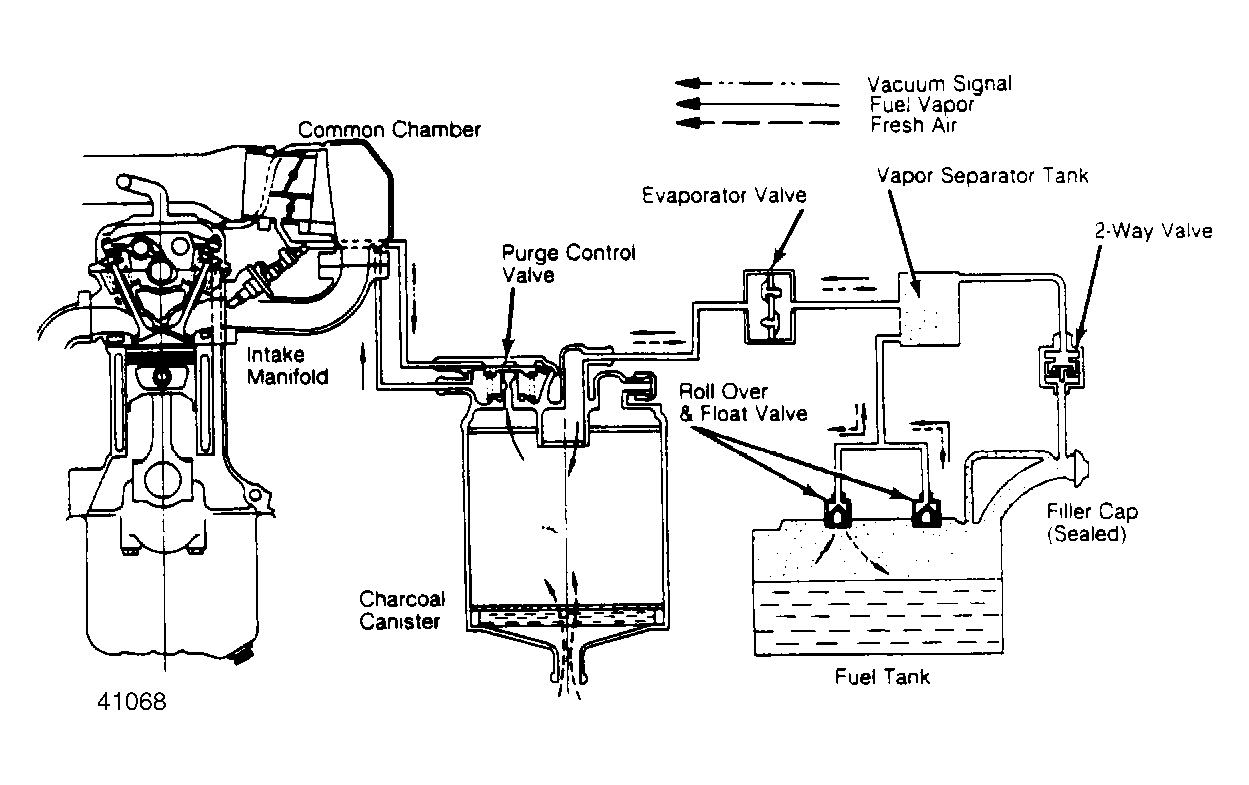

Fig 1: Evaporative Emission Control System (I-Mark)

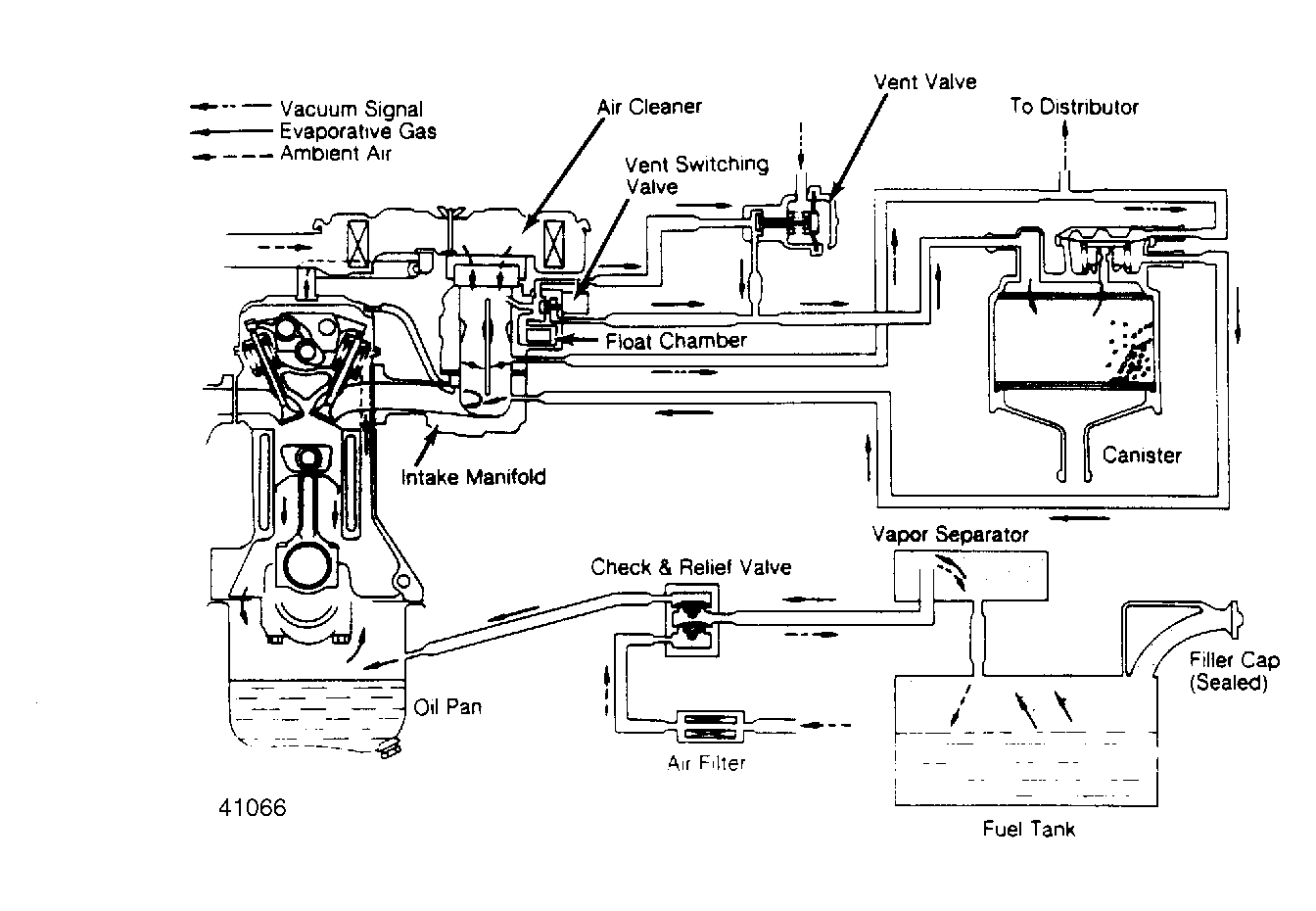

Fig 2: Evaporative Emission Control System (Impulse)

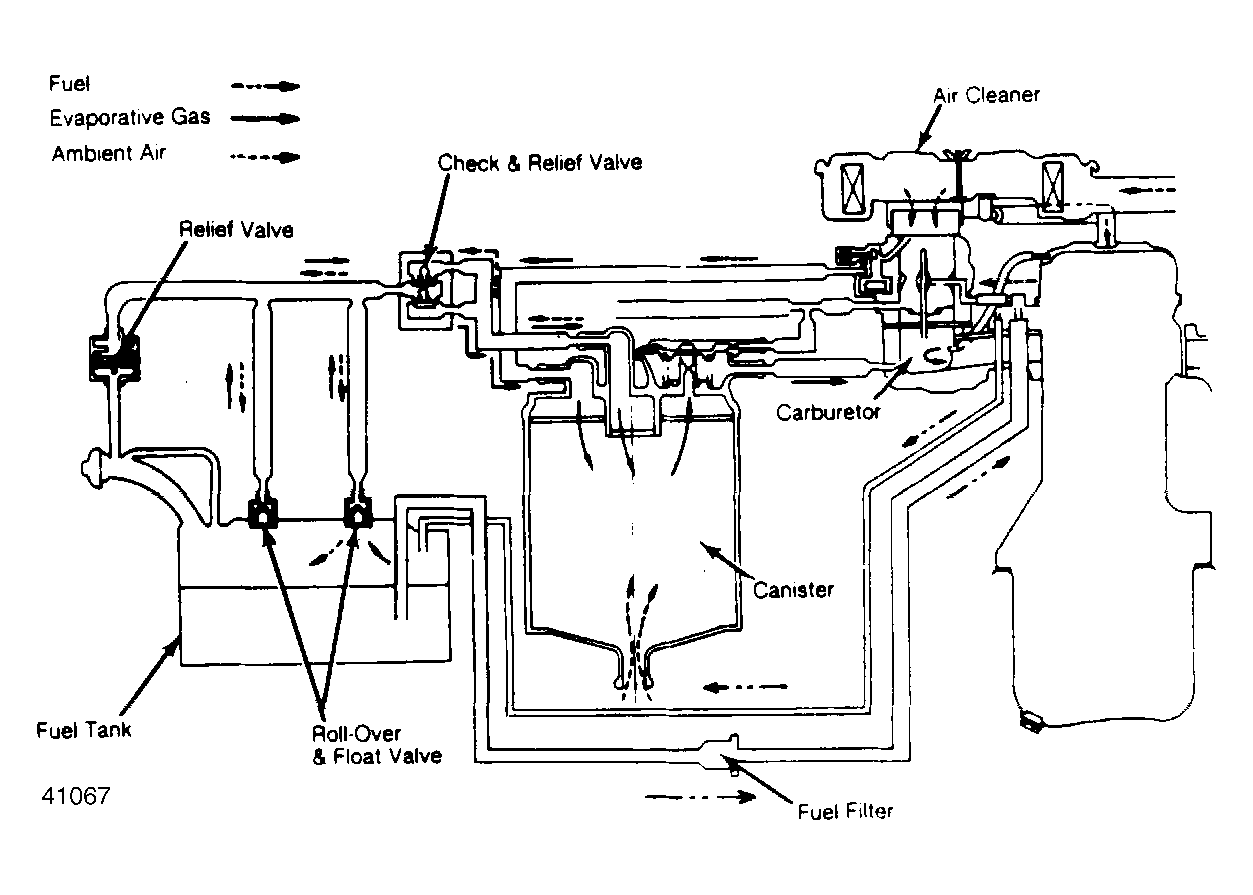

Fig 3: Evaporative Emission Control System (P'UP)
