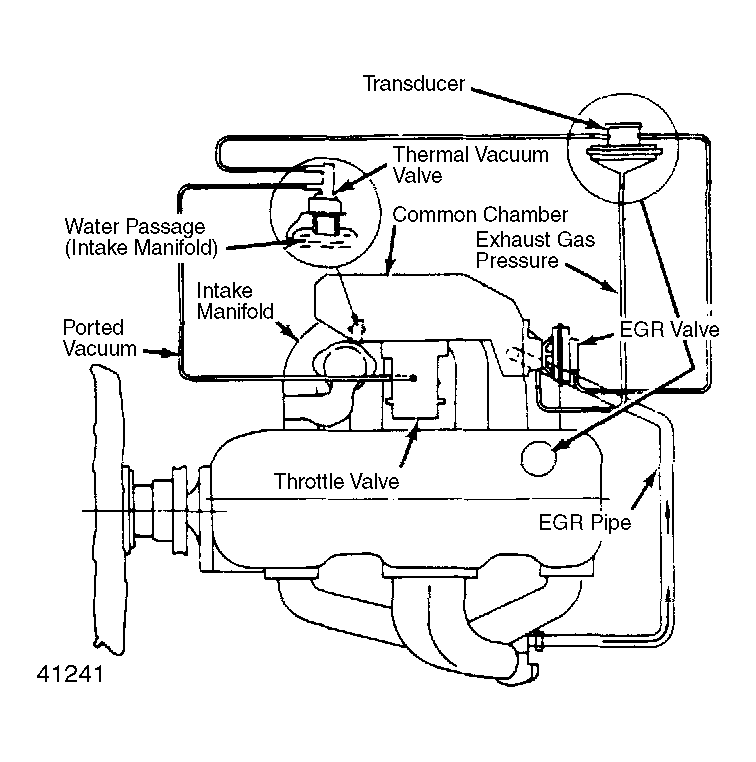

Back Pressure Transducer
This unit responds to exhaust pressure. Under heavy throttle applications (heavy exhaust pressure), back pressure transducer closes vacuum passage to EGR valve and stops EGR action.
Under normal operating conditions, EGR valve functions normally since back pressure transducer allows normal vacuum passage.
