Check Valve

This one-way valve is designed to allow air to flow into the air injection manifold. When exhaust system pressure is greater than air pump pressure, check valve closes to prevent exhaust gas from flowing back into air pump system and damaging components.

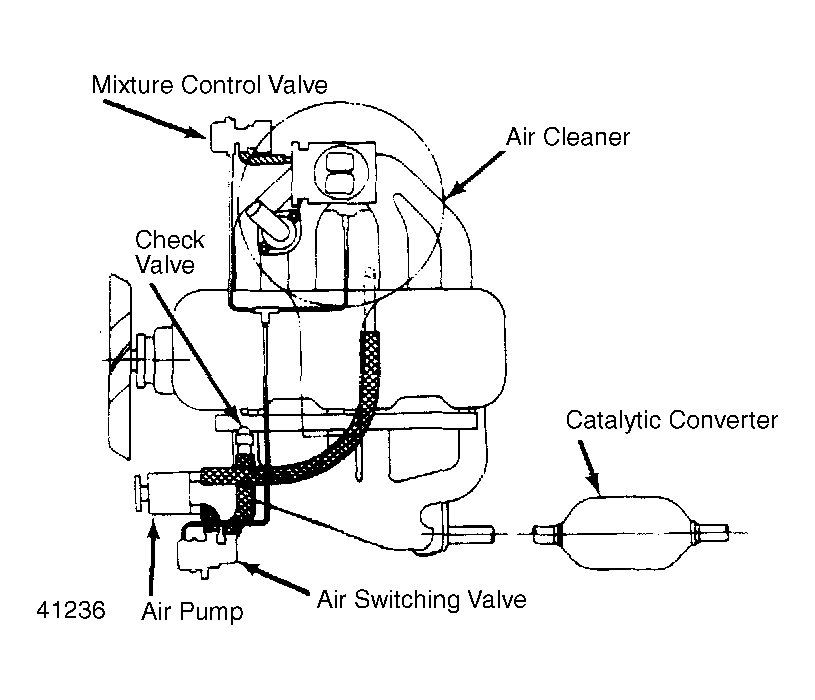

Fig 1: Air Injection System (Federal P'UP & Trooper II)
G41236
