I-Mark 2D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor System
>>
Testing
>>
Electronic Control Module (ECM) Check, Chart 2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Electronic Control Module (ECM) Check, Chart 2

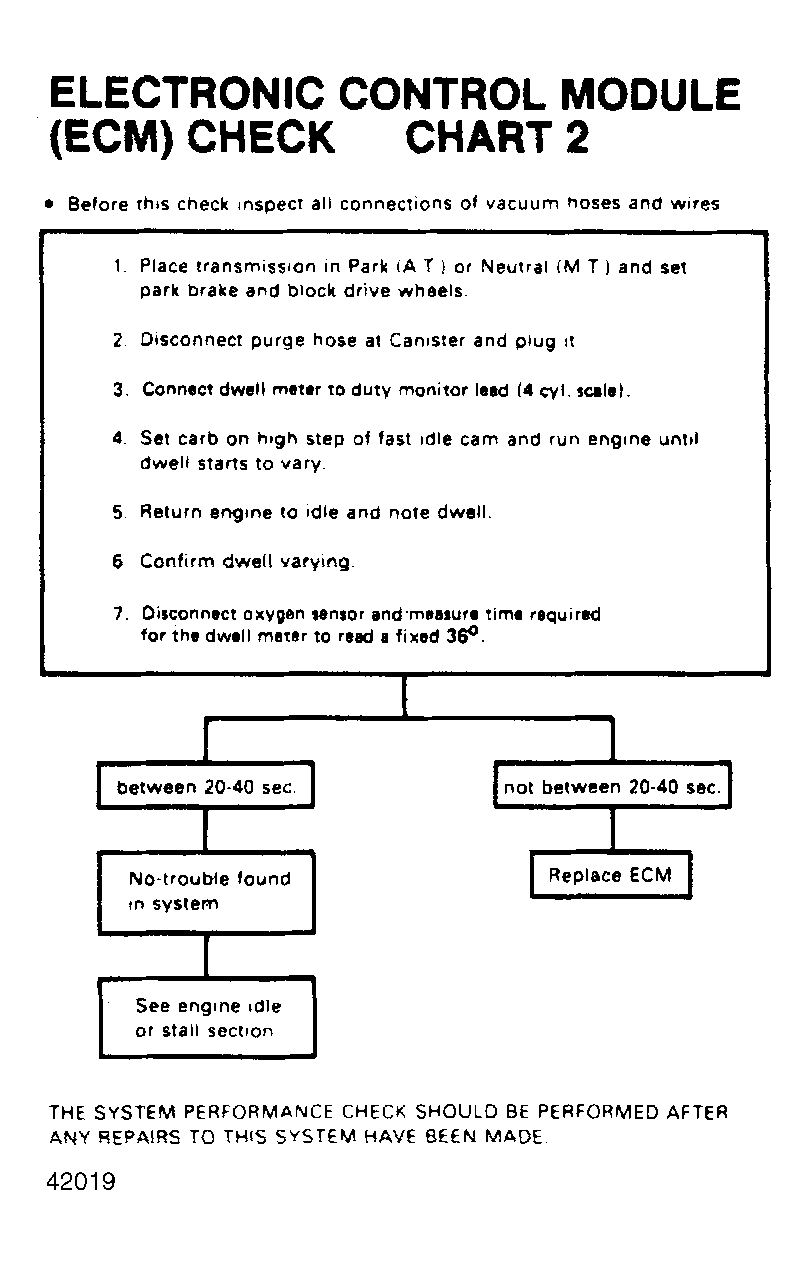

Fig 1: Electronic Control Module (ECM) Check, Chart 2
