Open Loop & Wide Open Throttle (Wot) Check, Chart 5

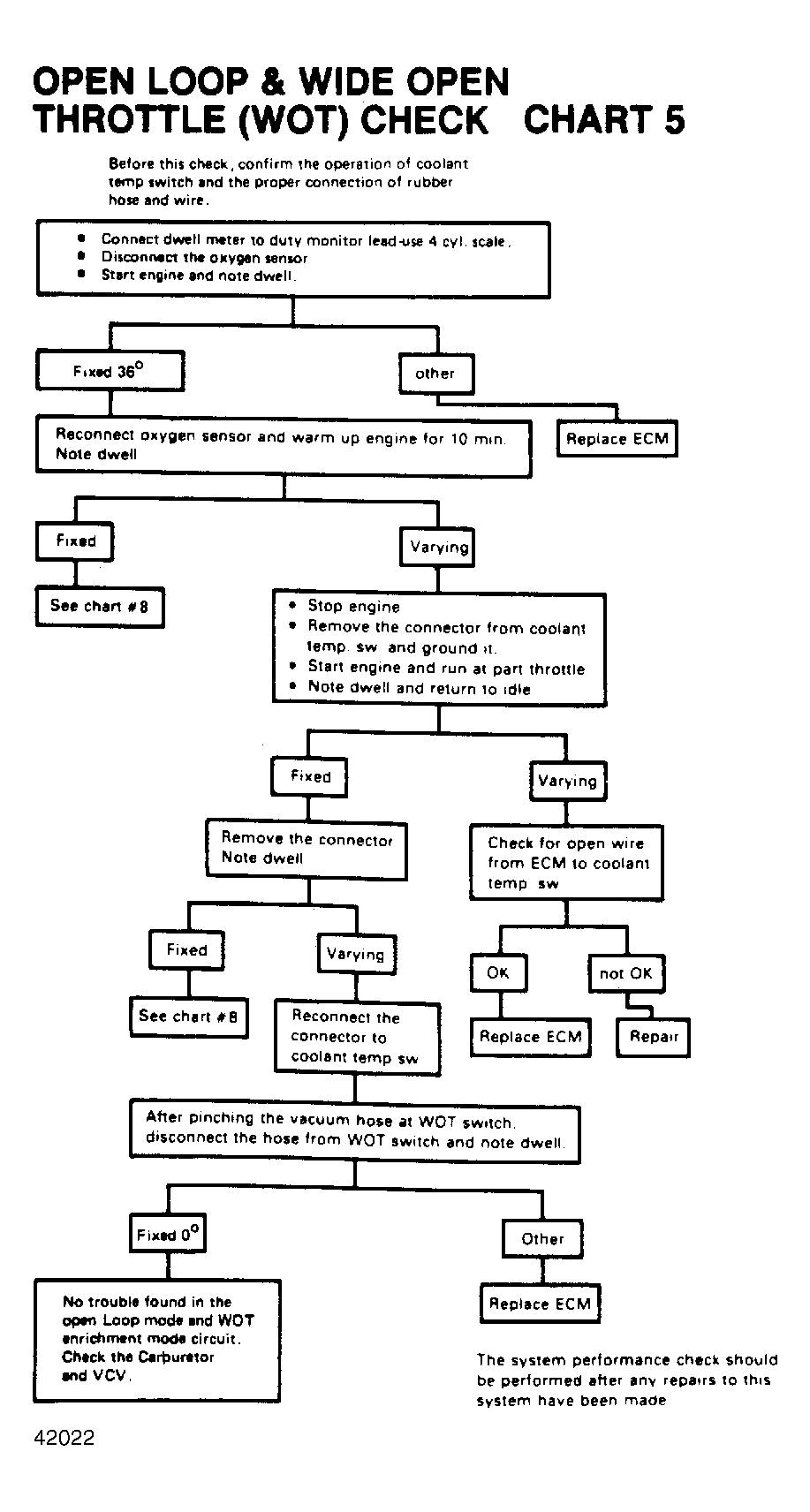

Fig 1: Open Loop & Wide Open Throttle (WOT) Check, Chart 5
