Glow Plug Relays

On I-Mark and P'UP models, there should be no continuity across terminals "C" and "D". With battery voltage applied to terminal "A", and terminal "B" grounded, there should be continuity across "C" and "D". If not, replace relay. See Fig 1 .

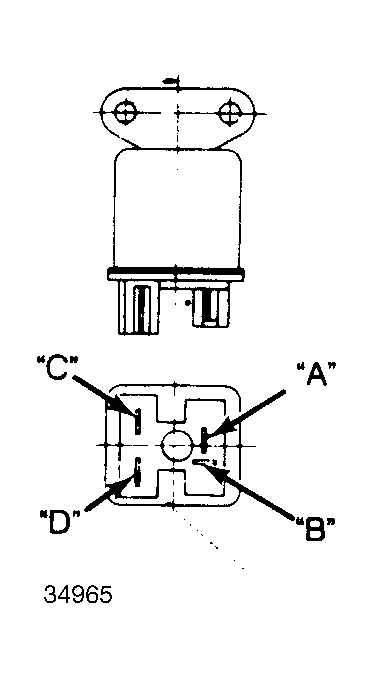

Fig 1: Glow Plug Relay Testing
G34965
