Spray Pattern

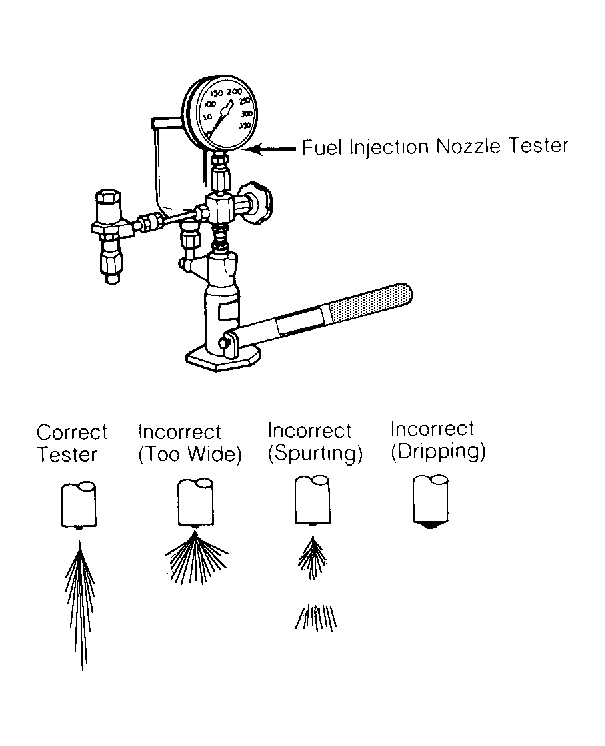

Remove nozzles and mount on injection nozzle tester. Pump tester lever about 4-6 times a second to observe spray pattern. See Figure . If spray is faulty, clean or replace injector.
