Wiring Diagrams

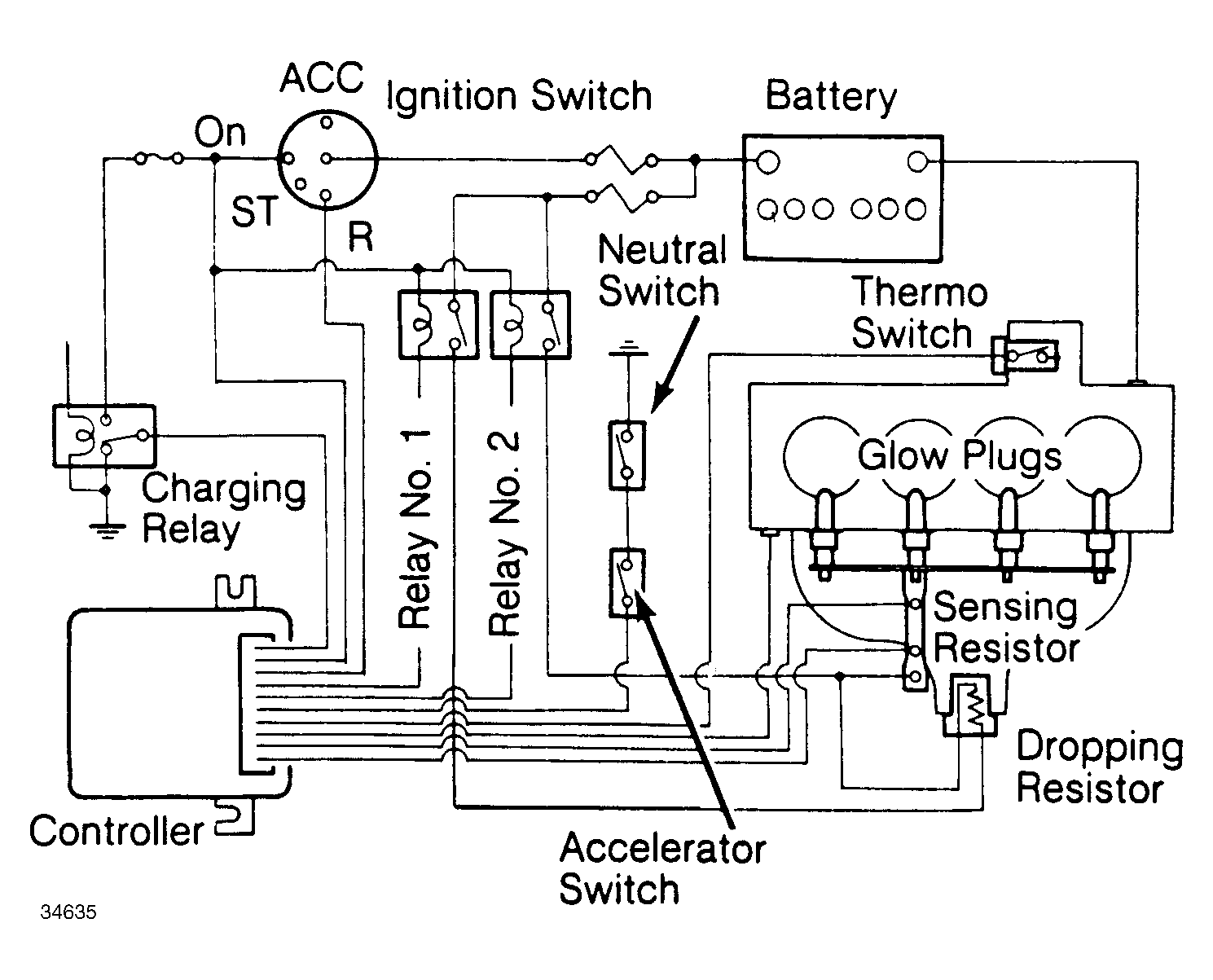

Fig 1: Glow Plug System Wiring Diagram (I-Mark)
Fig 2: Glow Plug System Wiring Diagram (P'UP)
