Ignition System: Overhaul

NOTE: Distributor assembly on I-TEC controlled distributors cannot be overhauled. If defective, entire distributor must be replaced.

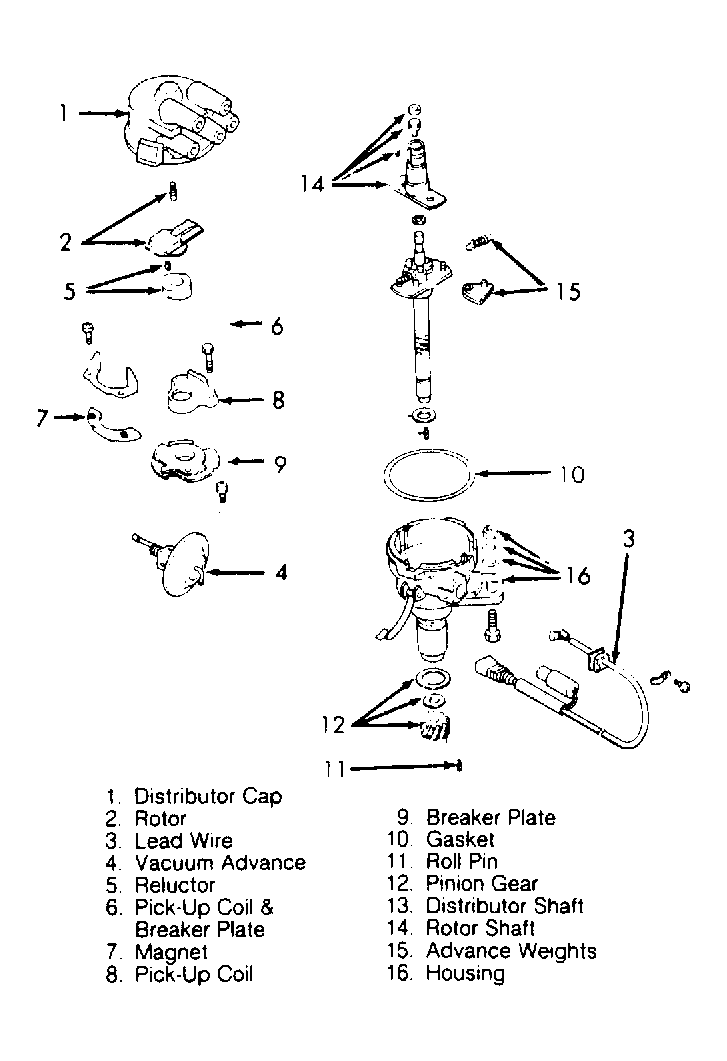

Fig 1: Exploded View of Pick-Up (Carbureted) Distributor

Courtesy of ISUZU MOTOR CO.

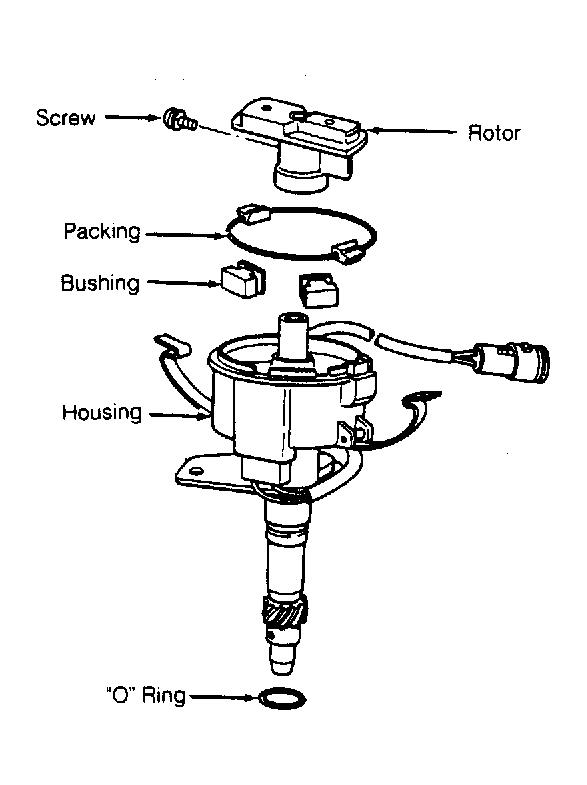

Fig 2: Exploded View of Distributor (Except Carbureted Pickup)

Courtesy of ISUZU MOTOR CO.
