Vacuum Switching Valve

The vacuum switching valve prevents operation of EGR valve until coolant temperature is over 122°F (50°C).

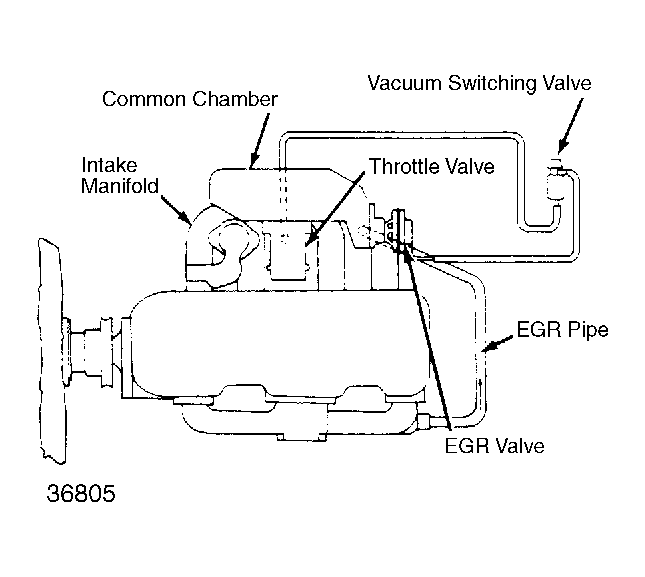

Fig 1: EGR System (Impulse Turbo)
G36805Courtesy of ISUZU MOTOR CO.
