Ecu Code 32 - EGR System: Impulse

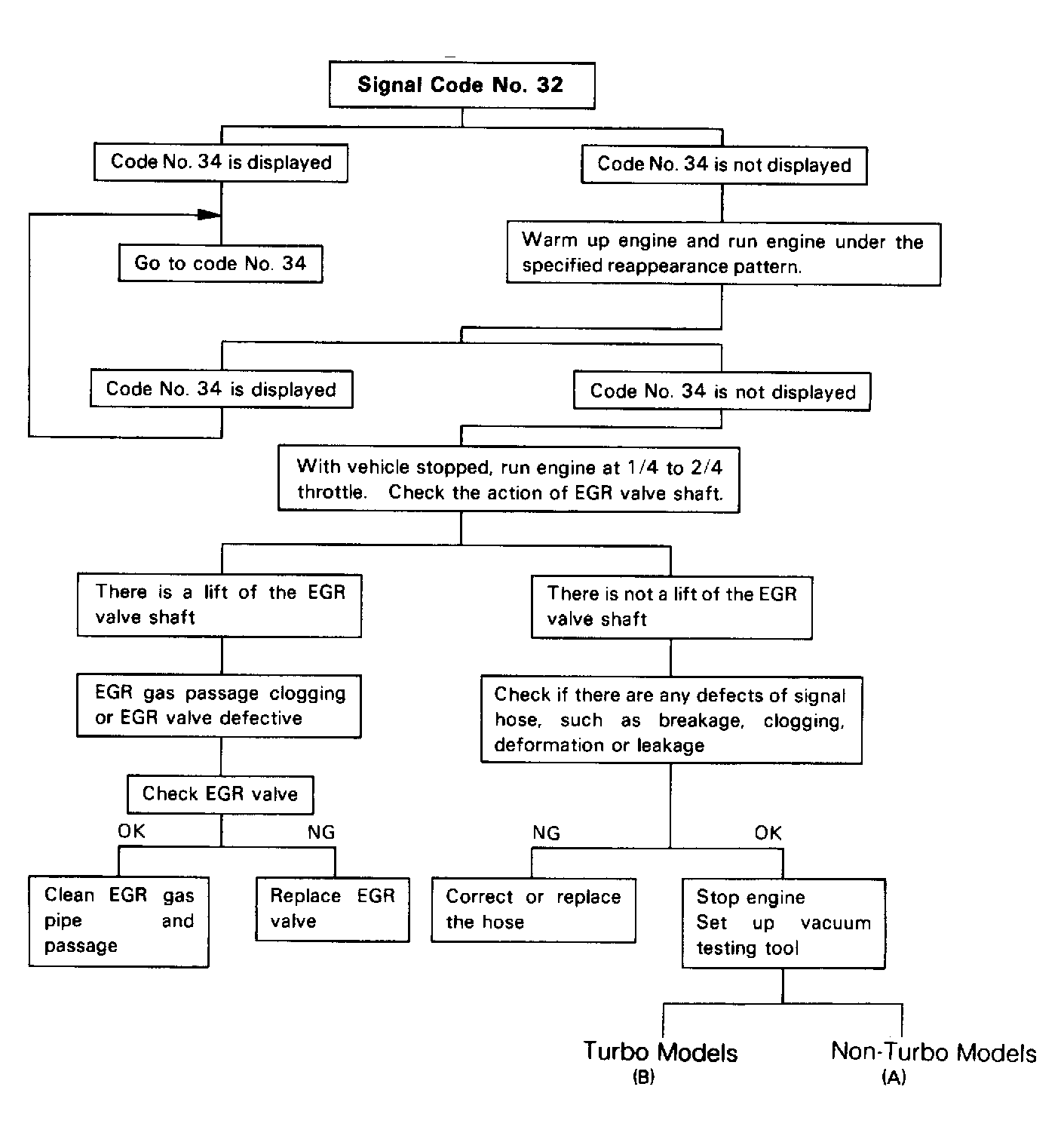

Fig 1: Flow Chart - (1 of 2) Code 32, EGR System Malfunction
G122277Courtesy of ISUZU MOTOR CO.

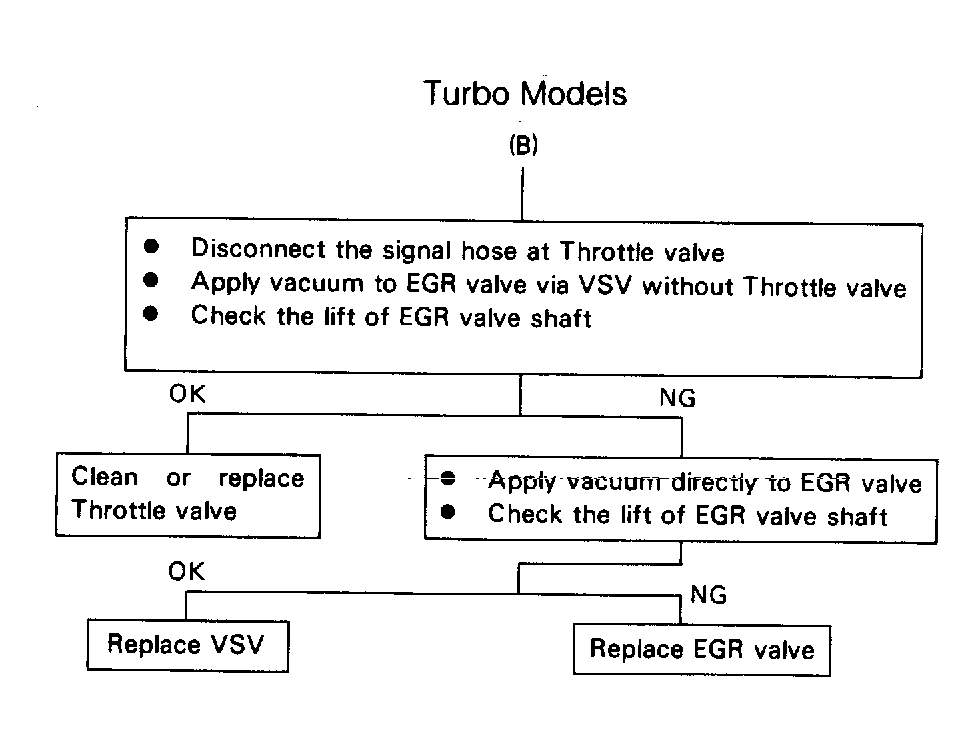

Fig 2: Flow Chart - (2 of 2 - Turbo) Code 32, EGR System Malfunction
G122278Courtesy of ISUZU MOTOR CO.

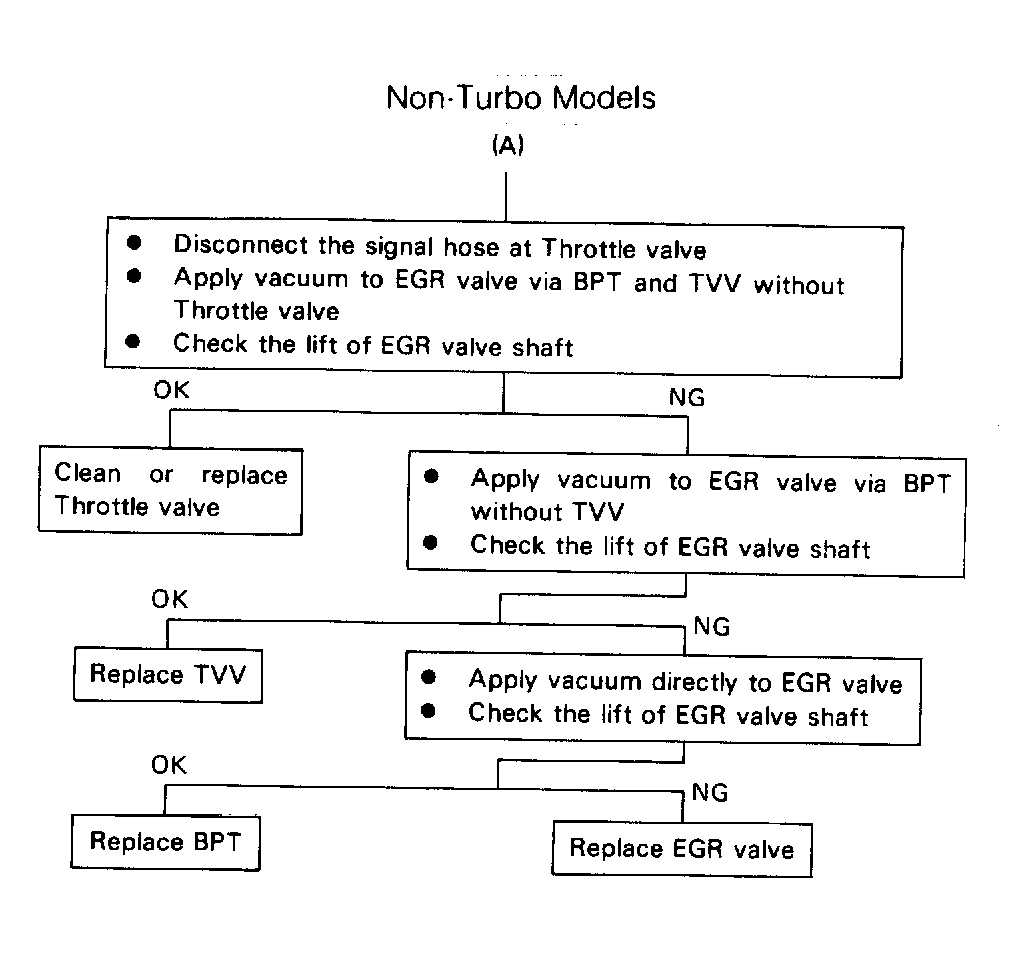

Fig 3: Flow Chart - (2 of 2 - Non-Turbo) Code 32, EGR System Malfunction
G122279Courtesy of ISUZU MOTOR CO.
Fig 4: Specified Reappearance Pattern
G122449Courtesy of ISUZU MOTOR CO.
