Ignition Coil

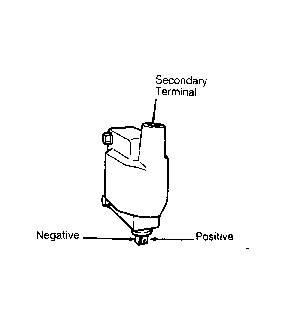

Turn ignition off. Disconnect ignition coil wiring. Measure primary, secondary and insulation resistance. See Fig 1. See IGNITION COIL RESISTANCE table.
IGNITION COIL RESISTANCE
| Application | Ohms | |||
|---|---|---|---|---|
| Primary | ||||
| Impulse | 1.13-1.53 | |||
| Pickup (Carbureted) | 1.20-1.40 | |||
| Pickup (EFI) | .81-.99 | |||
| Trooper II | .90 | |||
| Secondary | ||||
| Impulse | 10,200-13,800 | |||
| Pickup (Carbureted) | 8600-13,000 | |||
| Pickup (EFI) | 7500-11,300 | |||
| Trooper II | 9400 | |||
| Insulation (1) (All Models) | More Than 10,000 | |||
|
||||
