EGR System: Description
Exhaust gas recirculation systems reduce Oxides of Nitrogen (NOx) by recycling some exhaust gas back into the intake manifold to lower combustion chamber temperature.

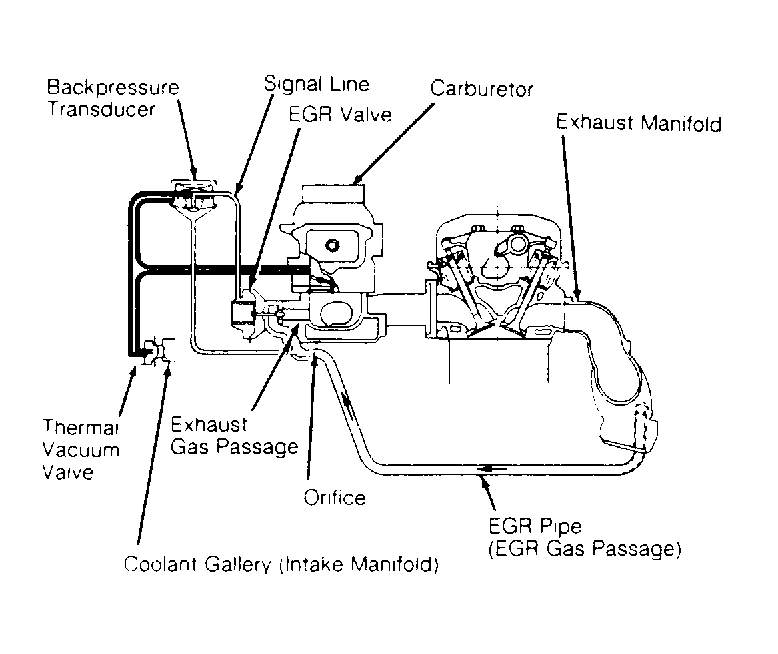

The EGR system on Impulse Turbo models consists of an EGR valve and a vacuum switching valve. The EGR system on other models consists of an EGR valve, a backpressure transducer (which monitors exhaust system pressure), and a thermal vacuum valve which senses coolant temperature.
