Ecu Code 34 - EGR Gas Temperature Sensor: Impulse

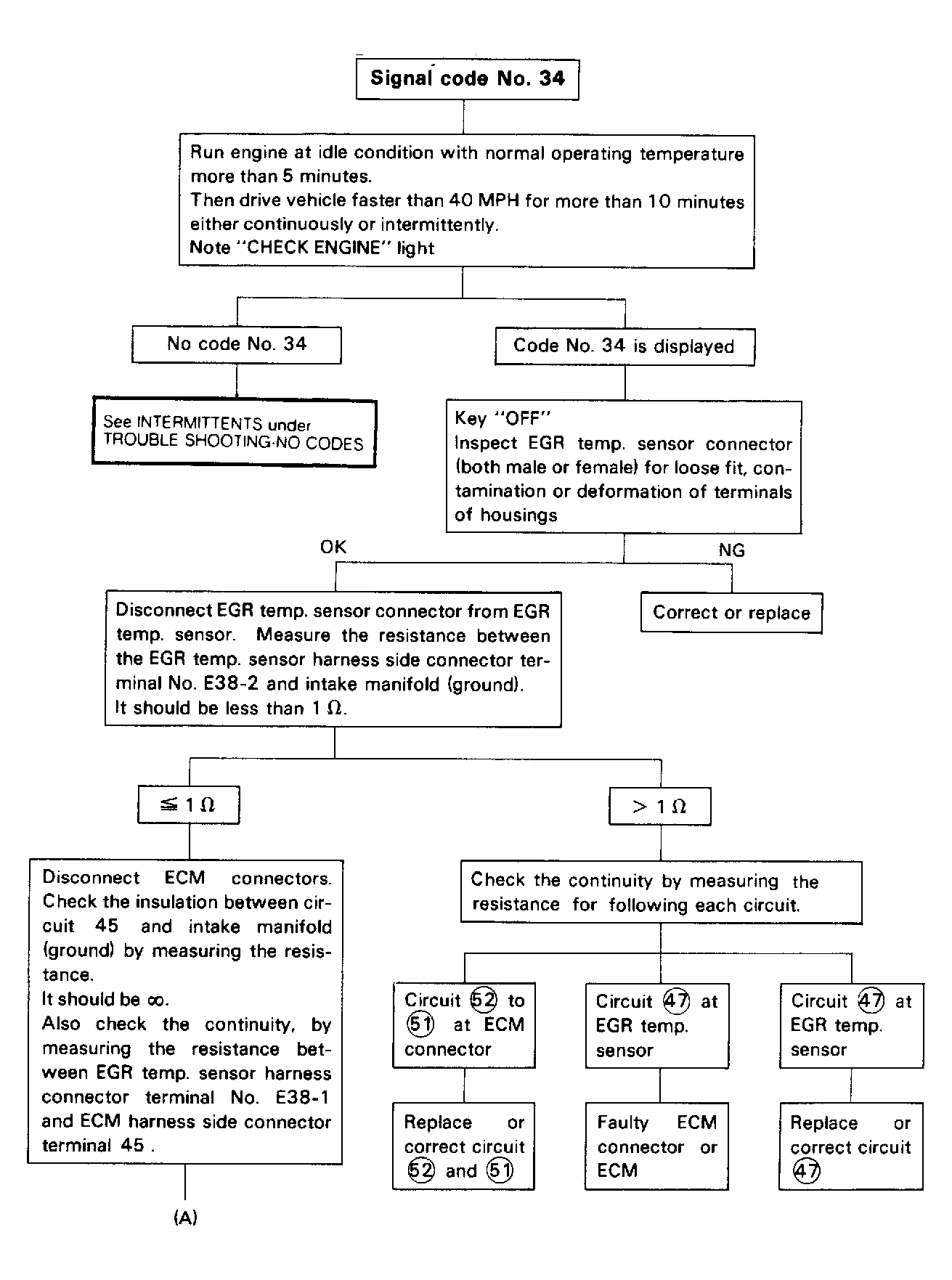

Fig 1: Flow Chart - (1 of 2) Code 34, EGR Gas Temperature Sensor

Courtesy of ISUZU MOTOR CO.

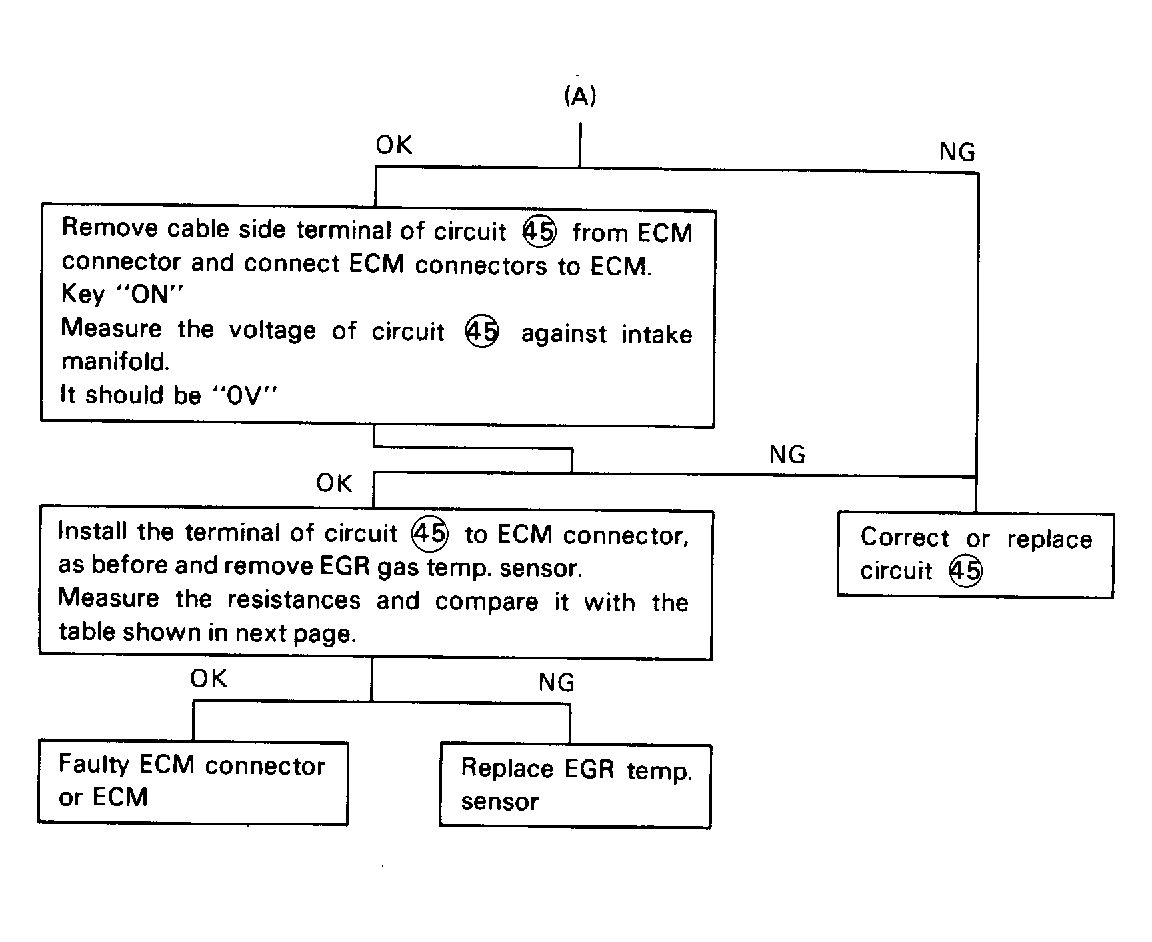

Fig 2: Flow Chart - (2 of 2) Code 34, EGR Gas Temperature Sensor (Cont.)

Courtesy of ISUZU MOTOR CO.

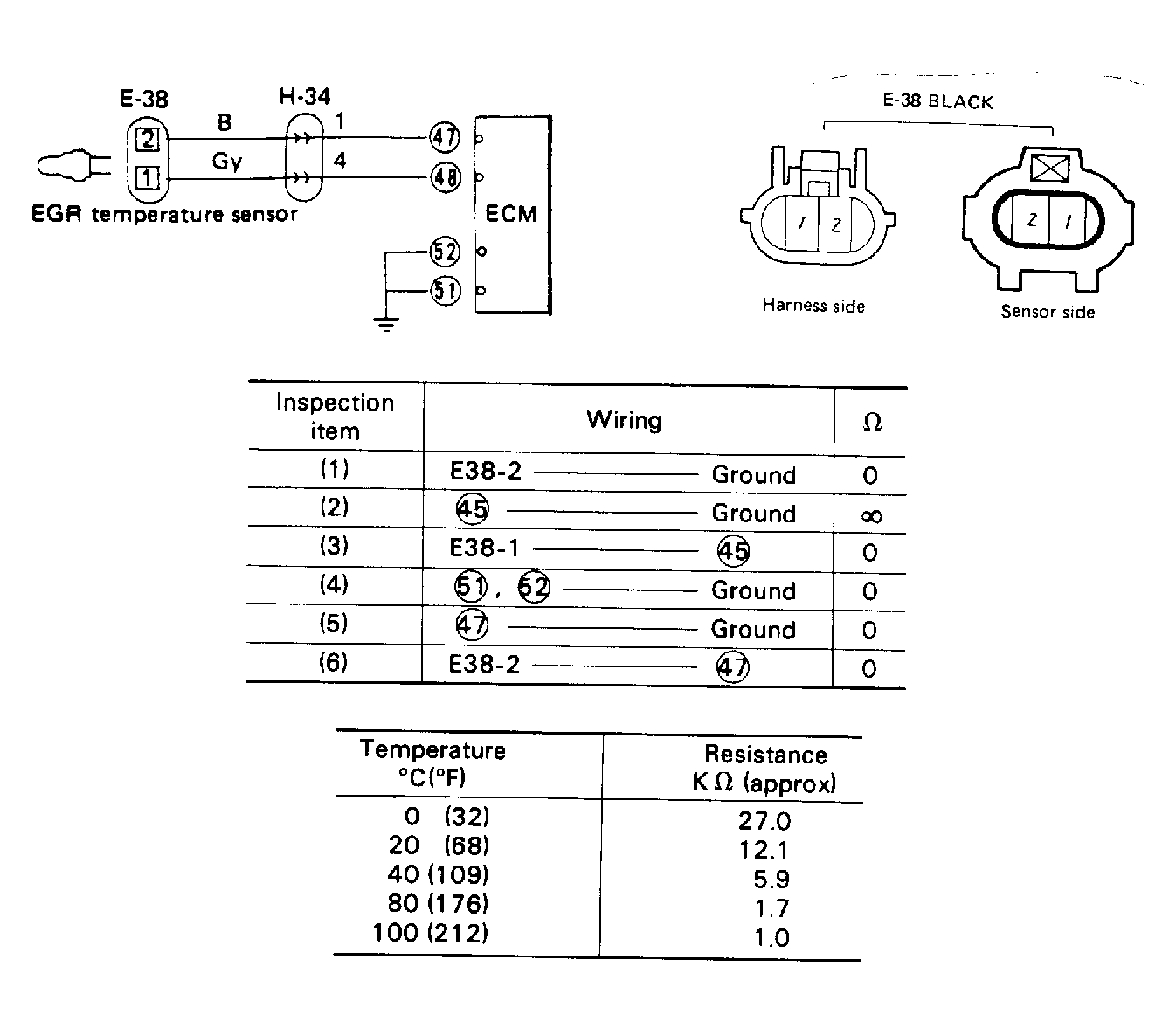

Fig 3: EGR Gas Temperature Sensor Circuit

Courtesy of ISUZU MOTOR CO.
