Fuel Pressure: Notes

Basic diagnosis of fuel system should begin with determining fuel system pressure.

CAUTION: DO NOT allow fuel to flow onto engine or electrical parts or allow an open flame in area while testing fuel system components.

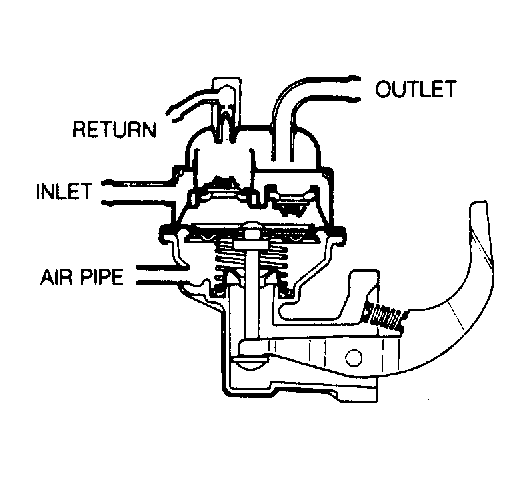

Fig 1: Cross-Sectional View of I-Mark Fuel Pump

Courtesy of ISUZU MOTOR CO.

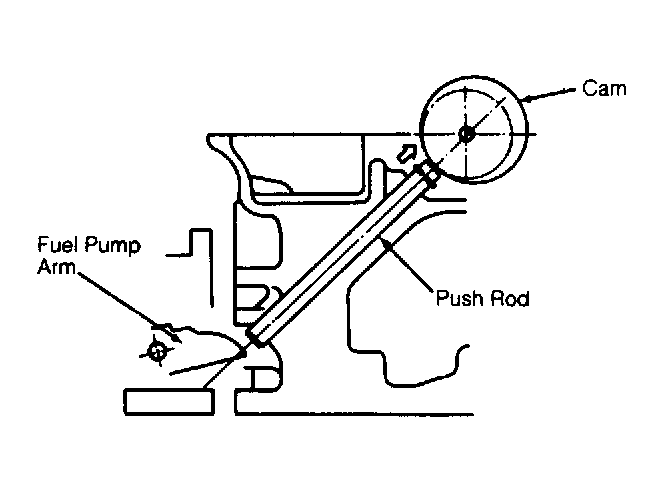

Fig 2: Amigo & Pickup Fuel Pump Push Rod

Courtesy of ISUZU MOTOR CO.
