Idle Control System: Notes

NOTE: Before adjusting I-Mark fast idle speed, check vacuum hose routing and A/C Fast Idle Controller Diaphragm (FICD) operation. Ensure engine is at normal operating temperature.

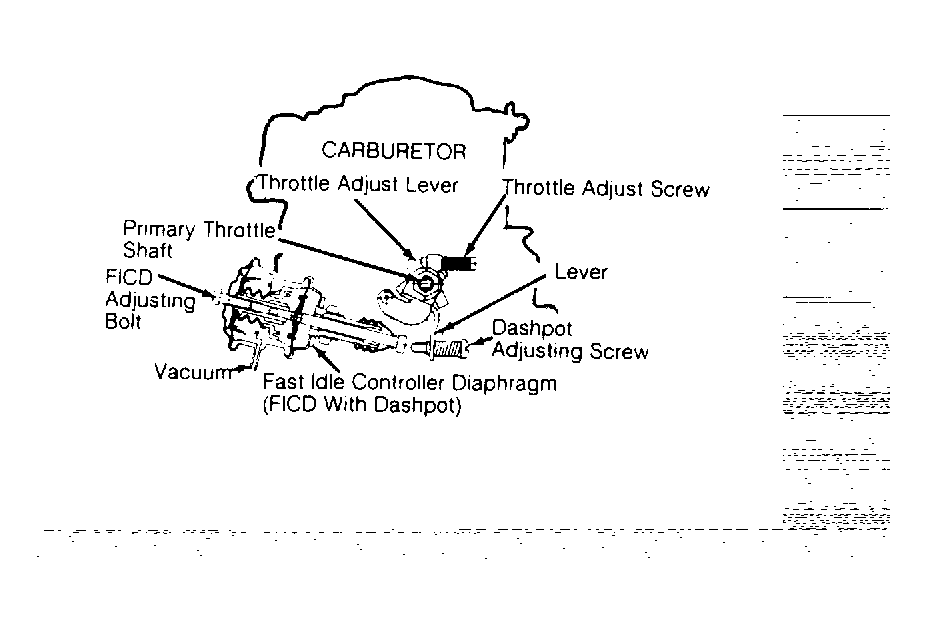

Fig 1: Fast Idle Adjustment Components

Courtesy of ISUZU MOTOR CO.
