Component Locations

COMPONENT LOCATIONS

Component		Location
Connector Block		Under Left Side Of Dash See Fig 1
Grounds W31 & W32		Right Kick Panel See Fig 1
Power Window Motor		Inside Door On Regulator See Fig 1
Power Window Relay		Under Left Side Of Dash See Fig 1
Power Window Switch		Mounted In Door Panel See Fig 1

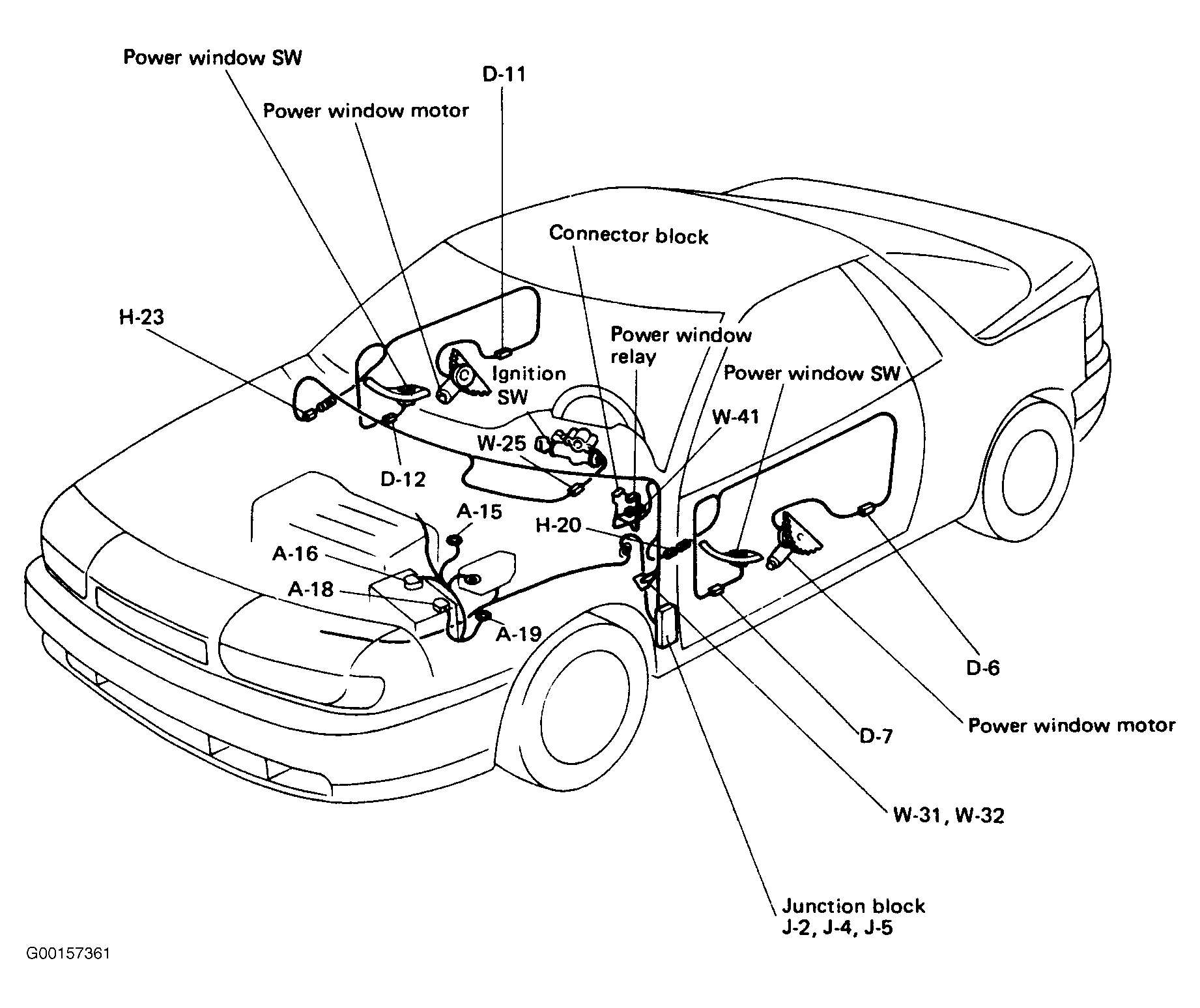

Fig 1: Identifying Power Window System Component Locations

Courtesy of ISUZU MOTOR CO.
