Passenger Side Power Window Motor

To inspect the operation of motor, first start with the passenger's switch connector D12 and driver's switch connector D7 before inspecting the motor.

1. Inspection With Passenger's Switch Connector

   Disconnect the switch connector, connect the battery to the harness side connector terminals and check operation. See Fig 1 . If the motor does not operate, it may be assumed that the motor of the harness between the switch and motor is defective.

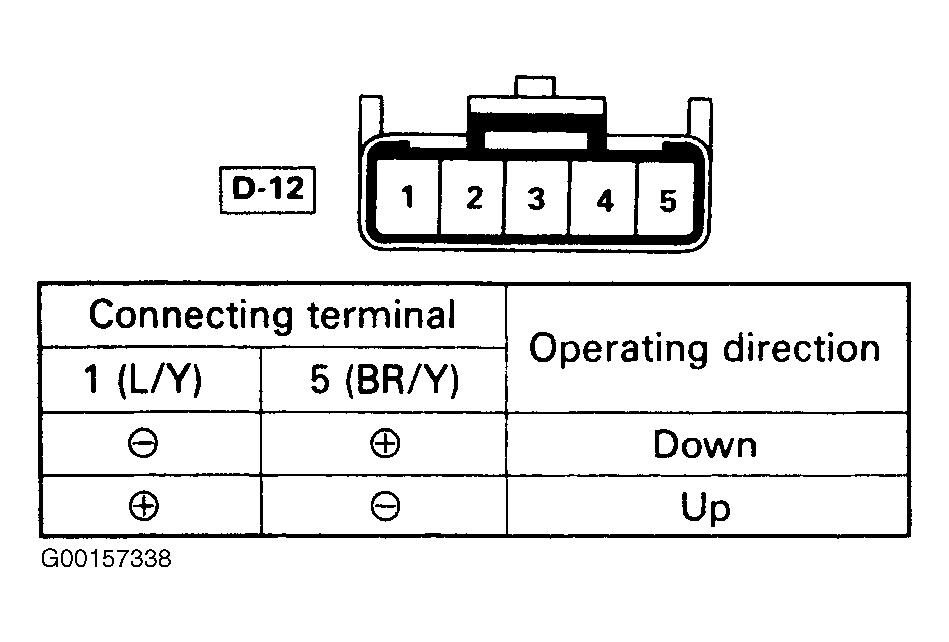

   Fig 1: Inspecting Passenger's Switch ConnectorCircuits

   Courtesy of ISUZU MOTOR CO.
2. Inspection With Driver's Switch Connector

   Disconnect the switch connector, connect battery voltage to the harness side connector terminals and check operation. See Fig 2 .

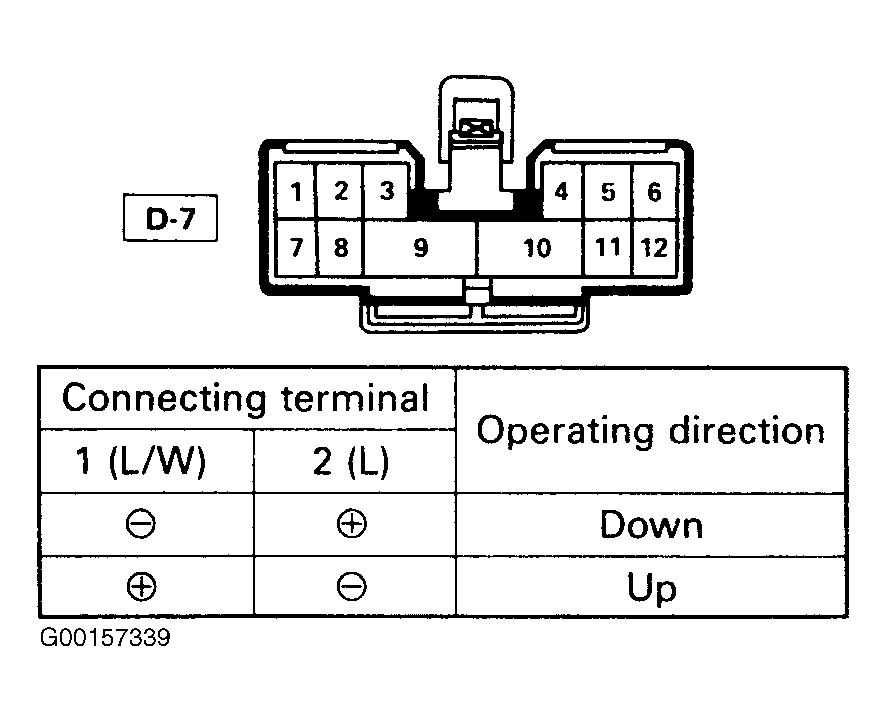

   Fig 2: Inspecting Driver's Side Switch Connector Circuits

   Courtesy of ISUZU MOTOR CO.
3. Inspection With Passenger Side Motor Connector

   Disconnect the motor connector, connect battery voltage to the motor side connector terminals and check operation. See Fig 3 .

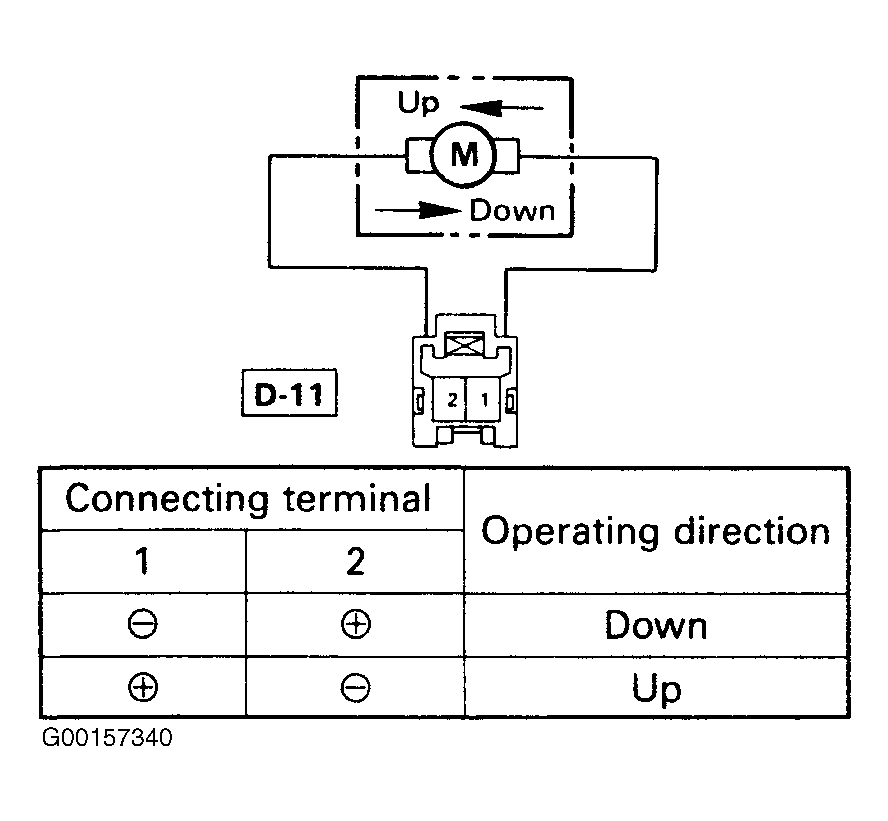

Fig 3: Testing Passenger Side Motor

Courtesy of ISUZU MOTOR CO.
