Restart Relay

  1. Restart relay is located under hood on left inner fender well inside relay box. Remove relay from connector and test for continuity between terminals No. 3 and 4. See Fig 1 . Ensure continuity is present. Test between terminals No. 1 and 2 for continuity. Ensure continuity is not present.
  2. Apply battery voltage between terminals No. 5 and 6. Ensure continuity is present between terminals No. 3 and 4. Ensure continuity is not present between terminals No. 1 and 2. Replace relay if defective.

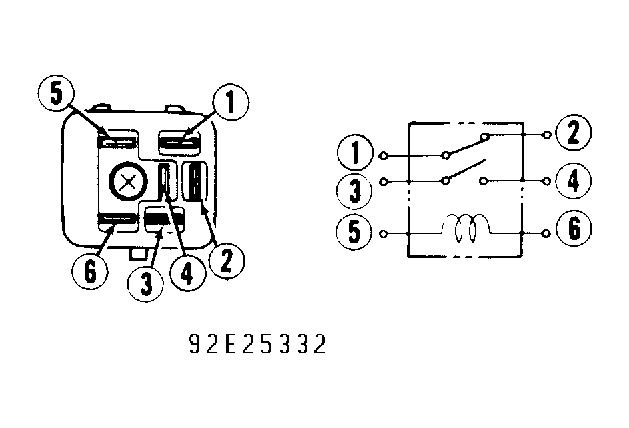

Fig 1: Restart Relay Terminal ID
G92E25332Courtesy of ISUZU MOTOR CO.
