Component Location

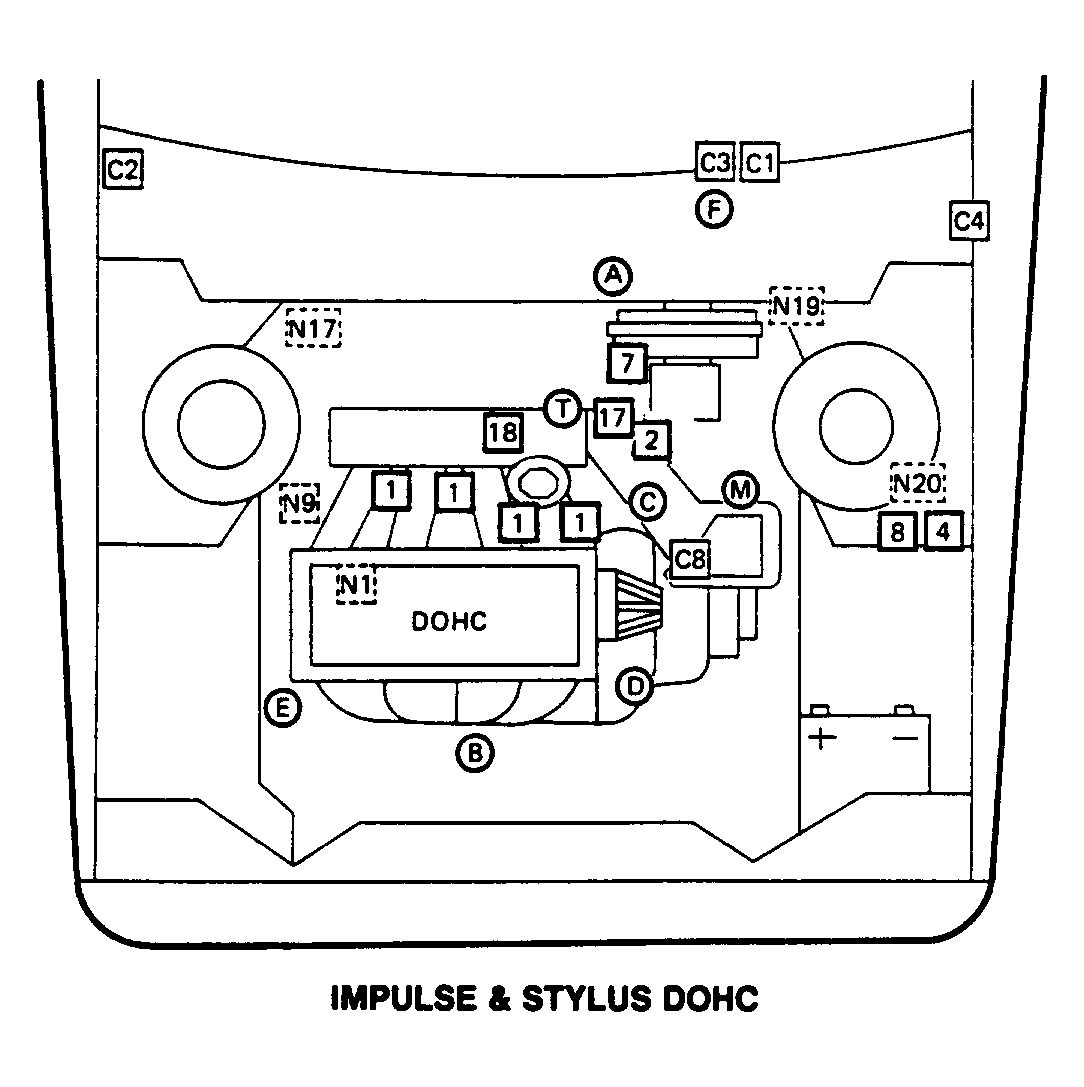

Fig 1: Identifying Component Locations (DOHC)
G92E16497Courtesy of ISUZU MOTOR CO.

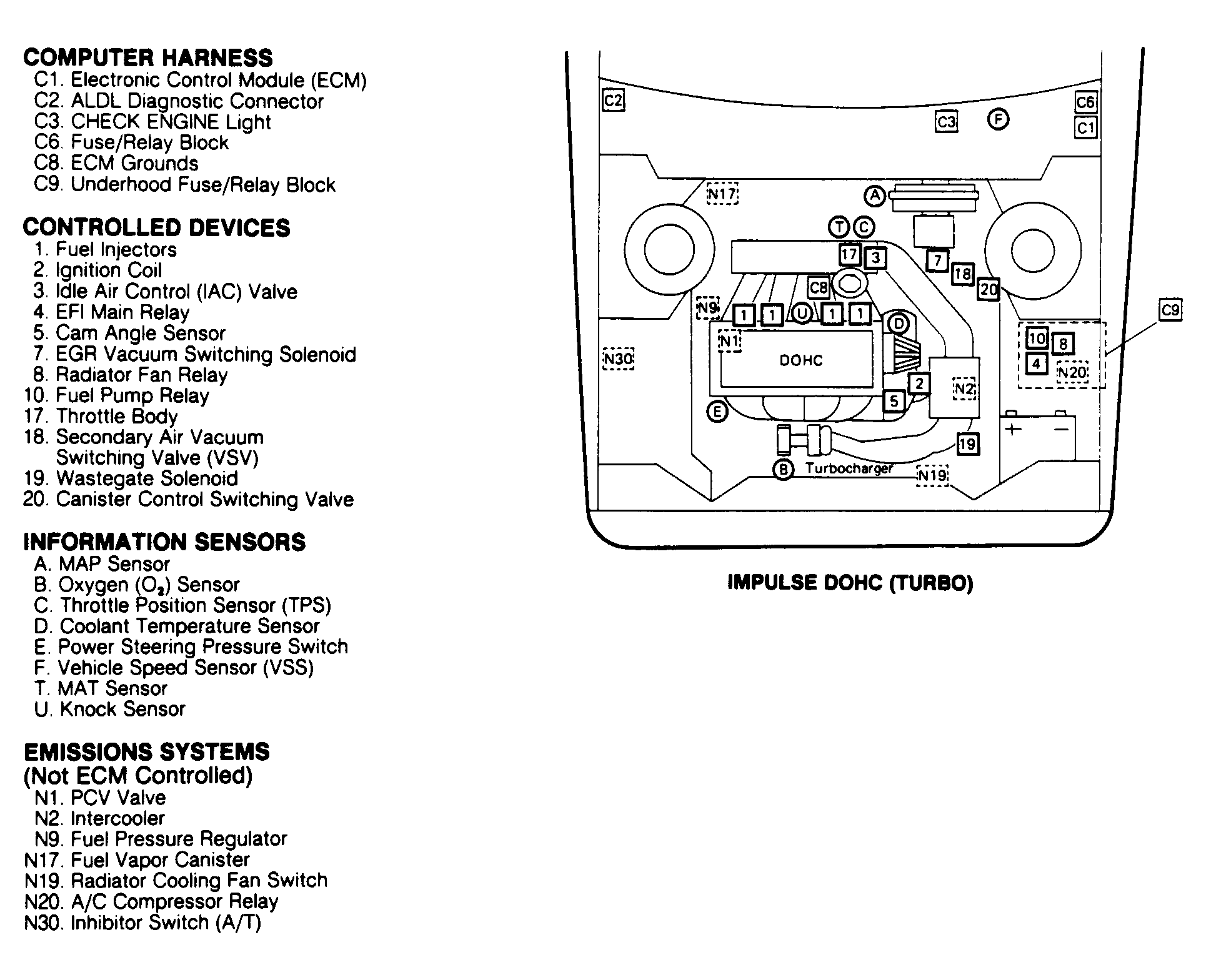

Fig 2: Identifying Component Locations (Turbo)
G92F16498Courtesy of ISUZU MOTOR CO.
Fig 3: Identifying Component Locations (SOHC)
G92D16496Courtesy of ISUZU MOTOR CO.
