Diagnostic Aids

A sluggish oxygen sensor can cause a false Code 32 to set. If EGR valve passage is restricted, a Code 32 may set.

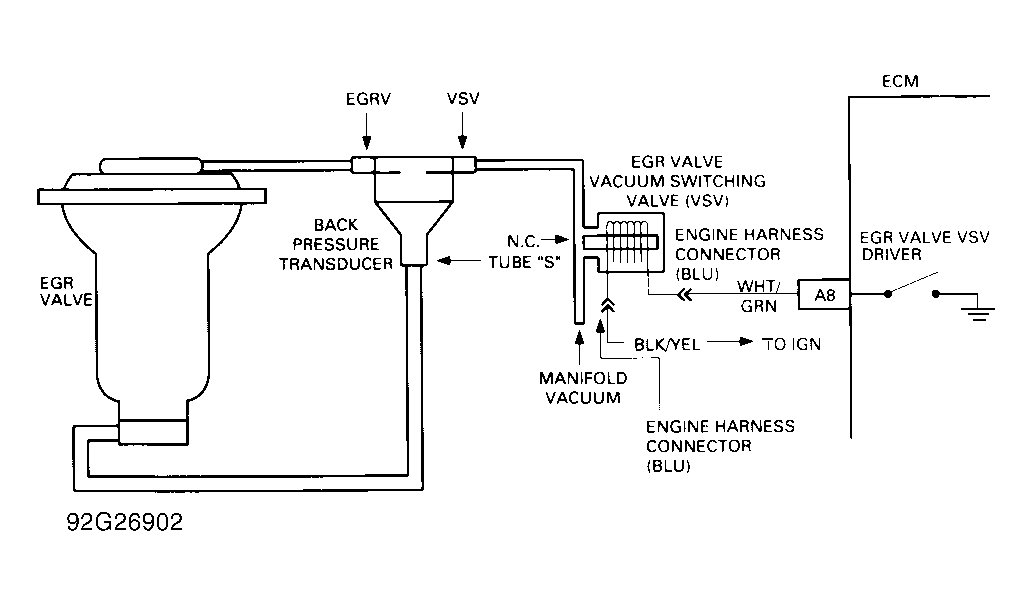

Fig 1: Code 32 Schematic - EGR System

Courtesy of ISUZU MOTOR CO.

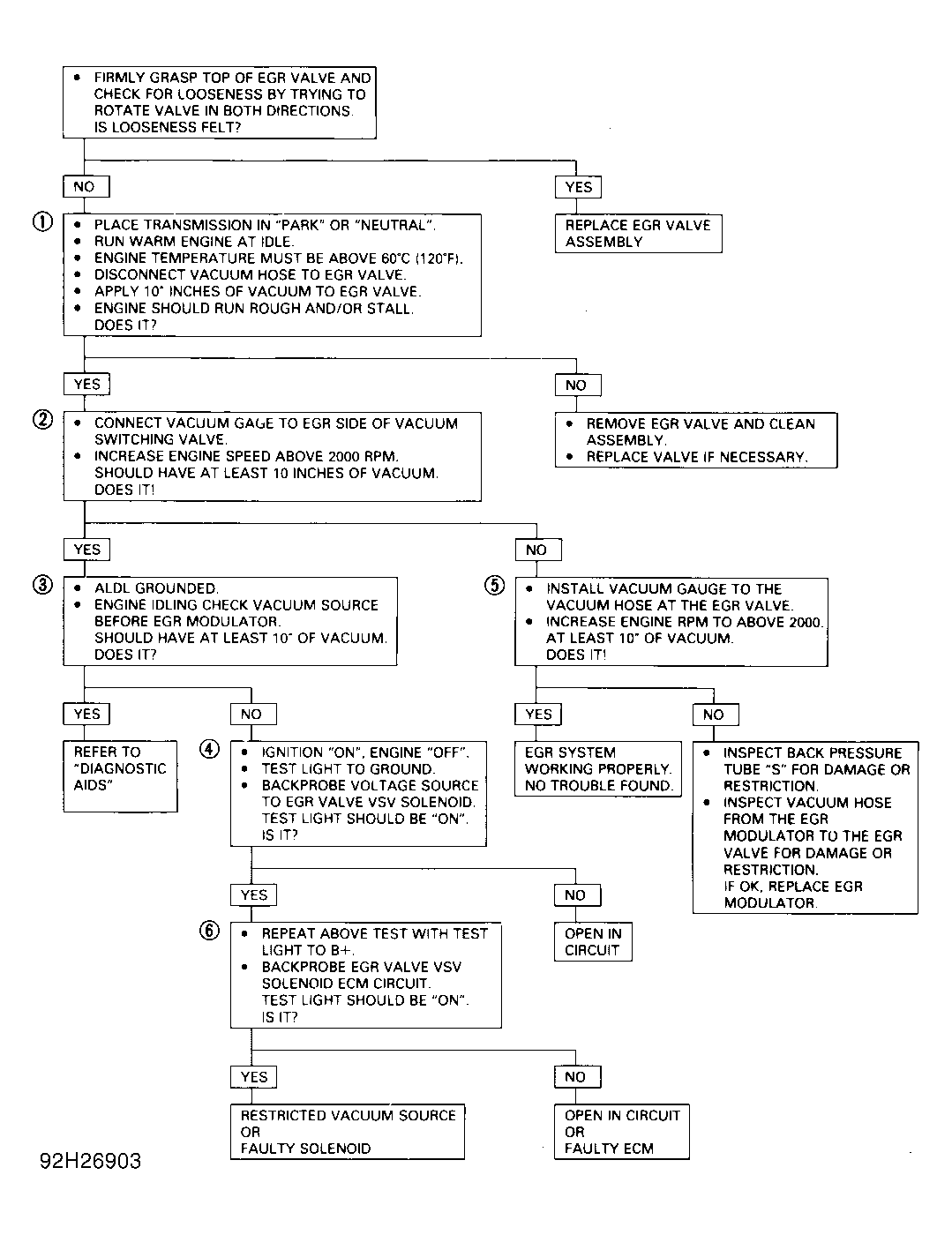

Fig 2: Code 32 Flow Chart - EGR System

Courtesy of ISUZU MOTOR CO.
