Diagnostic Aids

If a Code 42 was stored and hard start problem occurs, problem is probably a grounded EST line (circuit No. D5). For intermittent inspection, see INTERMITTENTS in TESTS W/O CODES article in the ENGINE PERFORMANCE Section.

Fig 1: Code 42 Schematic - EST (Electronic Spark Timing)

Courtesy of ISUZU MOTOR CO.

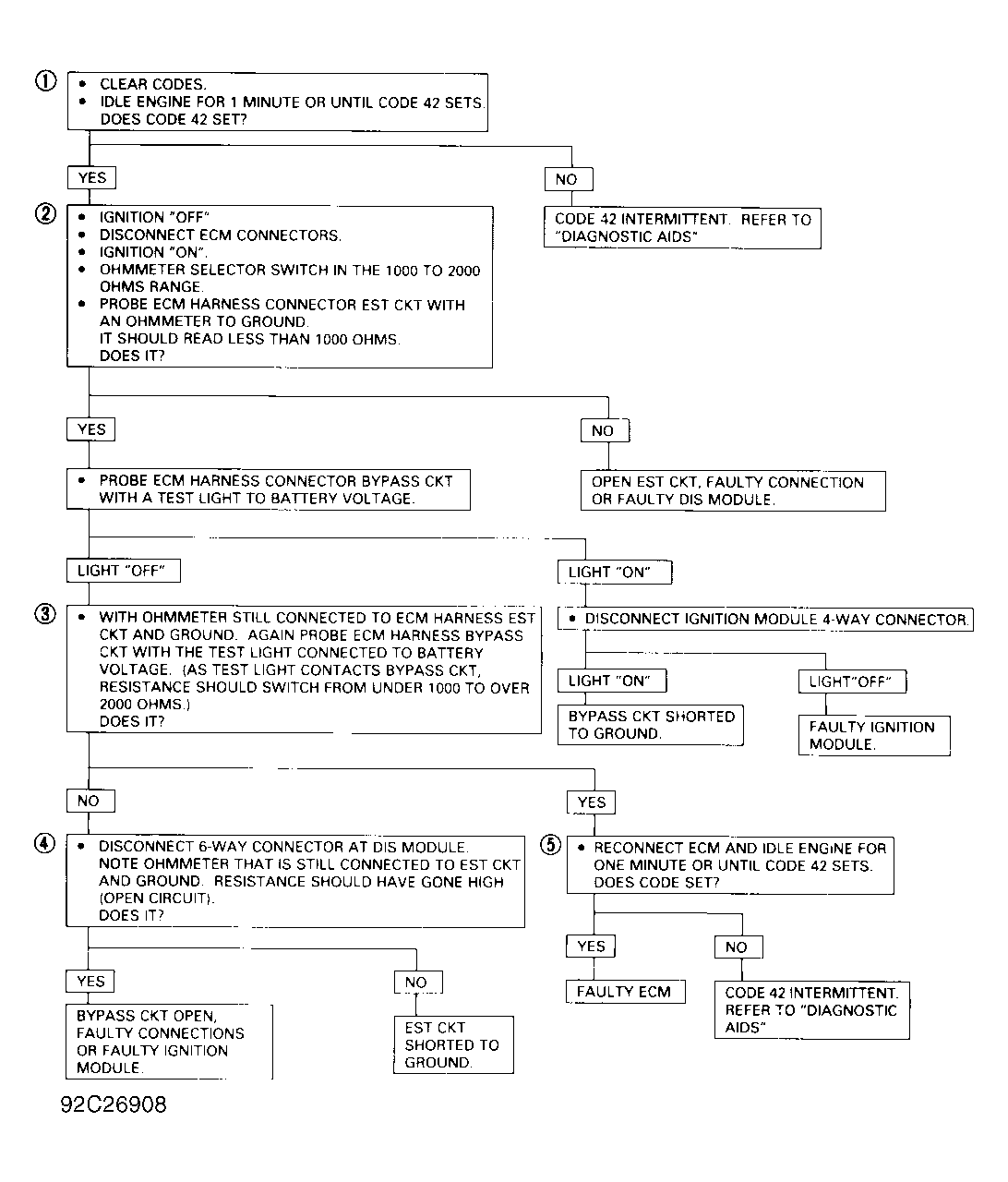

Fig 2: Code 42 Flow Chart - EST (Electronic Spark Timing)

Courtesy of ISUZU MOTOR CO.
