Diagnostic Aids

A Code 43 can be caused by a faulty connection at knock sensor, ESC module, or ECM. Also check circuit No. D10 for possible open or short to ground. For intermittent inspection, see INTERMITTENTS in TESTS W/O CODES article in the ENGINE PERFORMANCE Section.

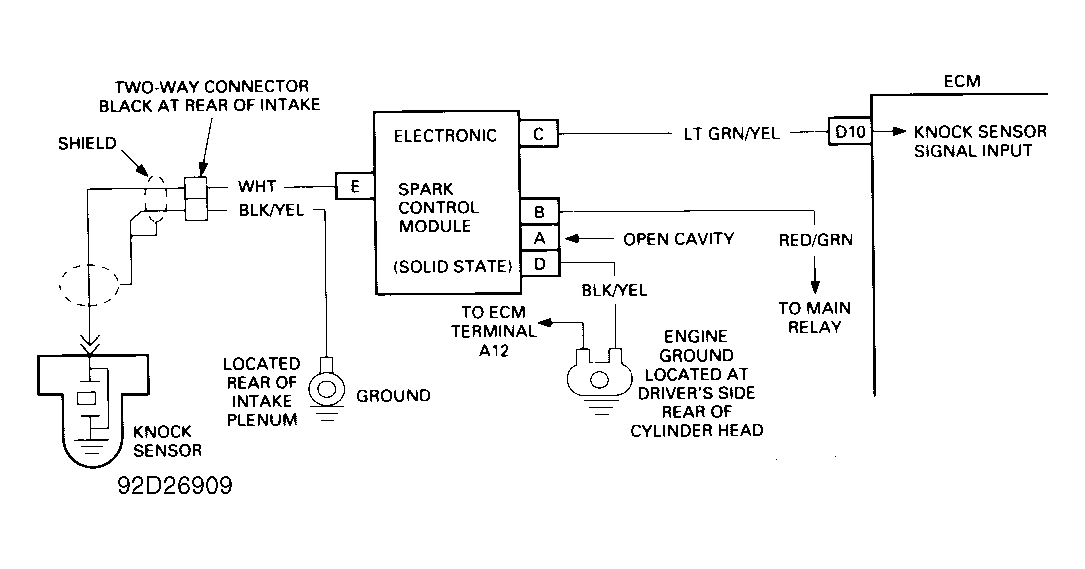

Fig 1: Code 43 Schematic - ESC (Electronic Spark Control)

Courtesy of ISUZU MOTOR CO.

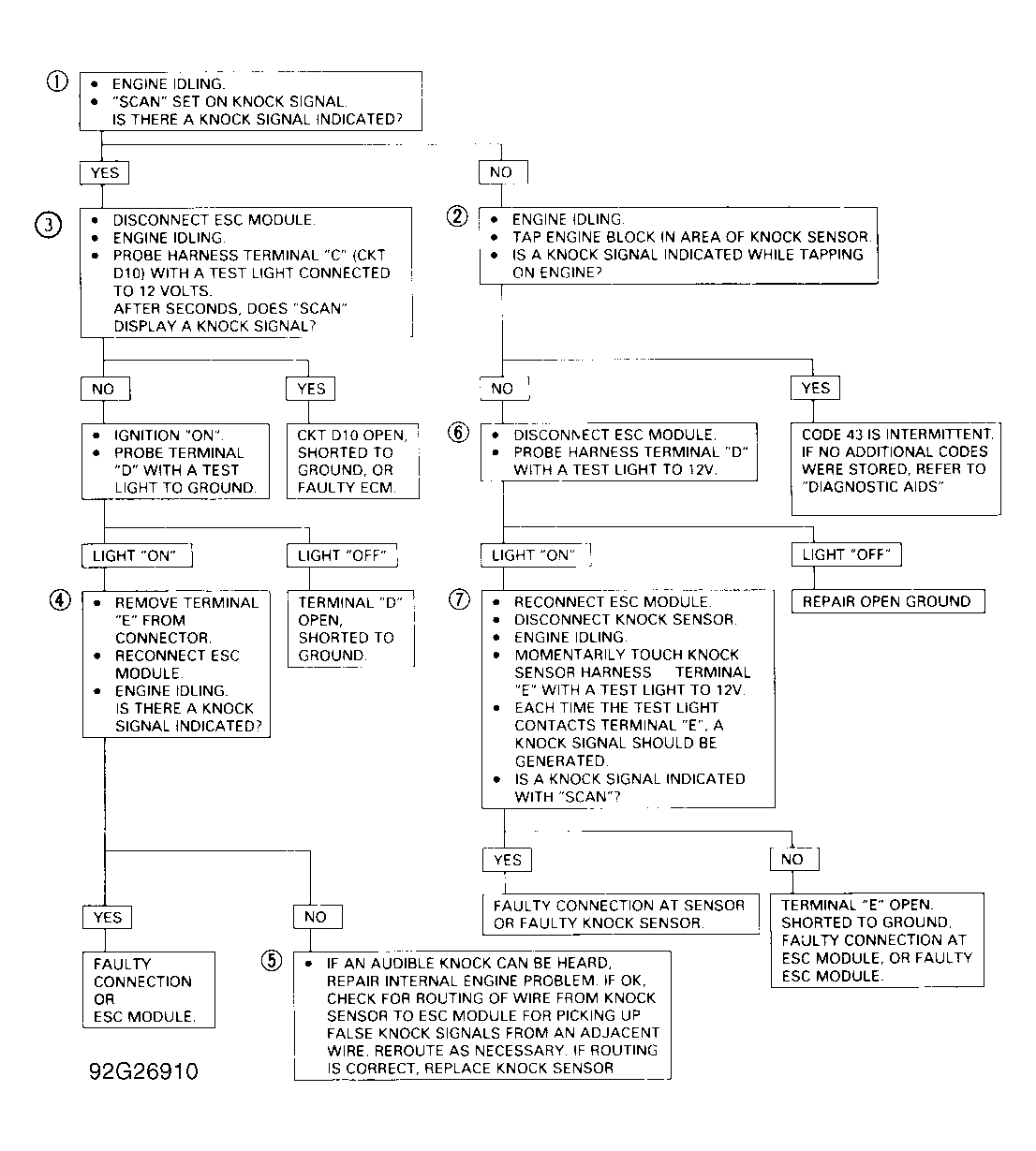

Fig 2: Code 43 Flow Chart - ESC (Electronic Spark Control)

Courtesy of ISUZU MOTOR CO.
